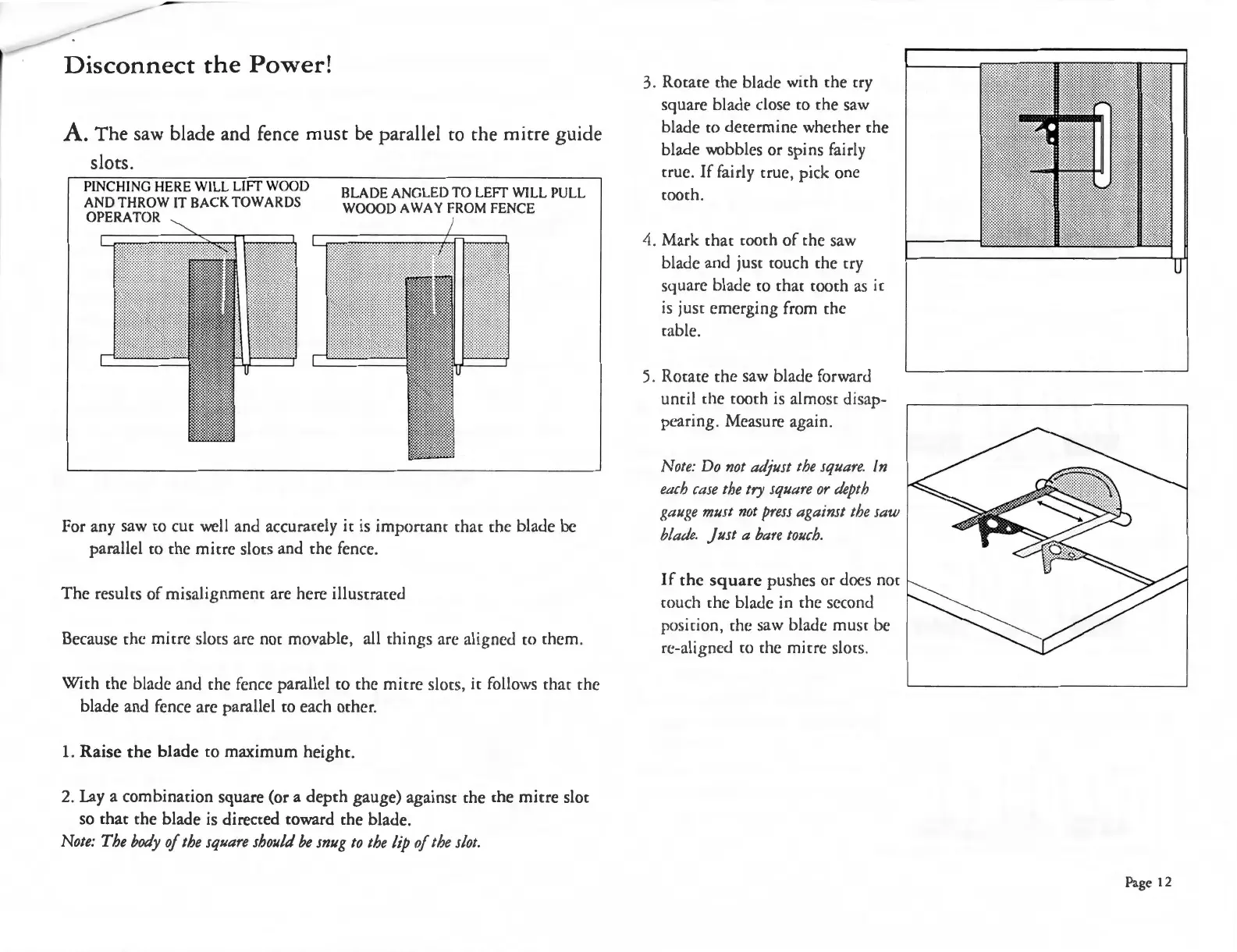

Inca 2200 - Blade and Fence Parallelism

~
Disconnect the Power!
A. The saw blade and fence must be parallel ro the mitre guide
slots.
PINCHING HERE WILL LIFT WOOD
AND THROW IT BACK TOWARDS
OPERATOR
BLADE ANGLED TO LEFT WJLL PULL
WOOOD AW A Y FROM FENCE
For any saw co cue we ll and accuracely ic is imporca nc ch ac chc blade be
parallel co chc micrc s loes and chc fence.
The resulcs of misalignmenc are here illuscraced
Because
chc micre sloes a re noc movable, all chings a rc aligned co chem .
Wi ch che blade a nd che fence parallel co chc mi ere sloes, i c follows chac chc
blade and fence arc parallel co ea ch ocher.
1. Raise the blade co maximum height.
2.
Lay a combinacion square (or a dcpch gauge) against che che mi ere sloe
so chat che blade is directed coward che blade.
Note : The body of the square should be snug to the lip of th e slot.
3. Rocace che blade wi ch chc cry
square bl ade close co che saw
blade co deccrmine whccher che
blade wobbles or spins fairly
cruc.
If fairly cruc, pick one
cooch .
4. Mark
ch ac cooch of chc saw
blade and
jusc couch chc cry
squa re bl ade co chac cooch as ic
is jusc emerging from chc
cable.
5.
Rocacc chc sa w blade forward
uncil
chc cooch is almosc di sa p-
pearing. Measure again.
Not e: Do not adjust th e square. In
eac h case the try squ are or de pth
ga u ge must not press aga inst t he saw
blad
e. ju st a bare to uch .
If che square pushes or docs noc
cou ch chc blade in chc second
posicion,
chc saw bl ade muse be
re-alig ned co chc micrc sloes.
Page 12
