Quick Start Procedure
If you are already familiar with table saws, follow this procedure
for setting up your saw quickly.
Locate all the unattached parts
of the saw, some of which are
shipped inside the saw body
These are the standard parts shipped with your saw:
2 Crank wheels with handles
Blade guard and splitter
Masterfence and Extrusion
Mitre Guide

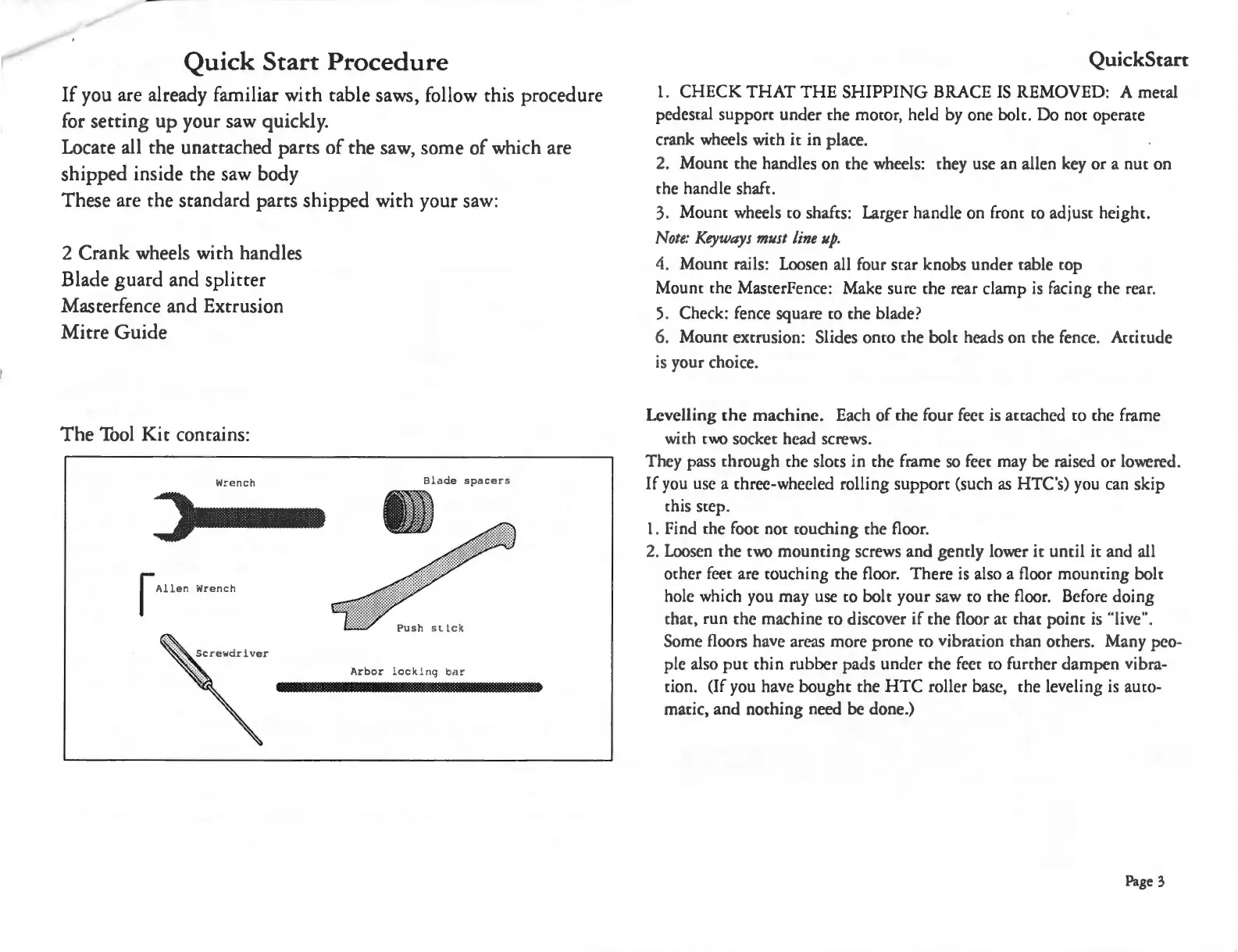

The Tool Kit contains:
Wrench Blade spacers
~·
r Allen Wrench
Arbor locking bar
QuickStart
l . CHECK THAT THE SHIPPING BRACE IS REMOVED: A mecal
pedestal support under
che mocor, held by one bole. Do noc operate
crank wheels with
ic in place.
2. Mount
che handles on che wheels: chey use an allen key or a nuc on
the handle shaft.
3. Mount wheels
co shafts: Larger handle on front co adjust height.
Note: Keyways must line up.
4. Mount rails: Loosen all four scar knobs under cable cop
Mount che MascerFence: Make sure che rear clamp is facing the rear.
S. Check: fence square
co che blade?
6. Mount extrusion: Slides onto che bole heads on
che fence. Accicude
is your choice.
Levelling
the machine. Each of che four feec is accached co che frame
with cwo socket head screws.
They pass through
che sloes in che frame so feet may be raised or lowered.
If you use a three-wheeled rolling support (such as HTC's) you can skip
chis seep.
1. Find che foot noc couching che floor.
2. Loosen che
cwo mounting screws and gently lower ic until it and all
ocher feet are couching che floor. There
is also a floor mounting bole
hole which you may use
co bole your saw co che floor. Before doing
chac, run che machine co discover if che floor ac chac point is "live".
Some floors have areas more prone
co vibration chan ochers. Many peo-
ple also puc chin rubber pads under che feet
co further dampen vibra-
tion.
(If you have bought che HTC roller base, che leveling is auto-
matic, and nothing need be done.)
Page 3
