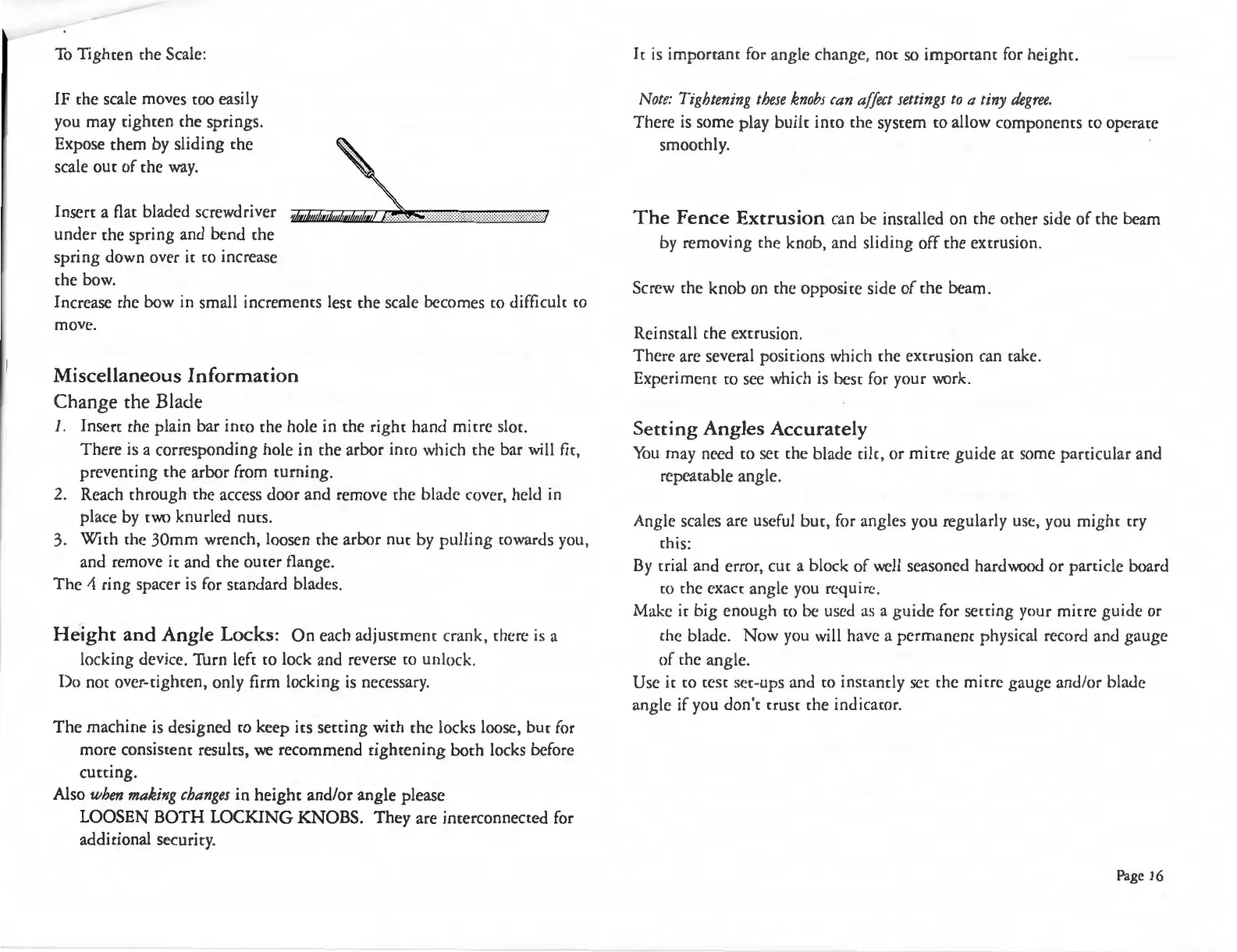

To Tighcen che Scale:
IF che scale moves coo easily
you may cighcen che
springs .
Expose chem by
sliding che
scale ouc
of che wa y.
Inserc a flac bladed screwdriver
under the spring and bend the
spring down over it co increase
the bow.
Increase the
bow in small increments lest the scale become s co difficult co
move.
Miscellaneous Information
Change the Blade
1. Inserc the plain bar into the hole in the right hand mitre slot.
There is a corresponding hole in the arbor into which the bar will fie,
preventin g the a rbor from curning .
2. Reach chrough
the access door and remove che blade cover, held in
place by
cwo knurled nucs.
3. Wich che 3
0mm wrench, loosen che arbor nuc by pulling cowards you,
and remove
ic and che oucer flange.
The Ii ring spacer is for scandard blades.
Height and Angle Locks: On each adjuscmcnc crank, chcrc is a
locking device. Turn lefc
co lock and reverse co unlock .
Do not ovcr-cighcen, only firm locking is necessary.
The machine is designed co keep its secting with the locks loose, buc for
more consiscent results, we recommend tightening both locks before
CUtctng .
Also when making changes in height and/or angle please
LOOSEN BOTH LOCKING KNOBS. They are interconnected for
addicional security.
Ir is imporcanc for angle change, noc so imporcanc for heighc.
Note: Tightening thes e knobs can affect settings to a tiny de gr ee .
There is some play builc into che system co allow componencs co operace
smoochly.
The Fence Extrusion can be inscalled on che ocher s ide of che beam
by removing che knob, and sliding off che excrusion.
Screw che
knob on che opposi cc side of che beam.
Reinscall che excrusion.
There are several posicions wh ich che excrusion can cake.
Experimenc
co see which is besc for your work.
Setting Angles Accurately
Y()Ll may need co sec che blade cilc, or mitre guide ac some parcicular and
repeatable a ngle .
Angle scales are useful buc, for angles you regularly use, you mighc cry
chis:
By
cri al and error, cue a block of well seasoned hardwood or parcicle board
ro che exacc
angle you rcq u ire.
Make
ic big enough robe used as a guide for seccing your mitre g uide or
chc blade. Now you will have a permanent physical record and gauge
of che angle.
Use ic co cesc sec-ups and co inscancly sec che mitre gauge and/ or bla de
angle if you don 'c cruse che indicacor.
Page 16
