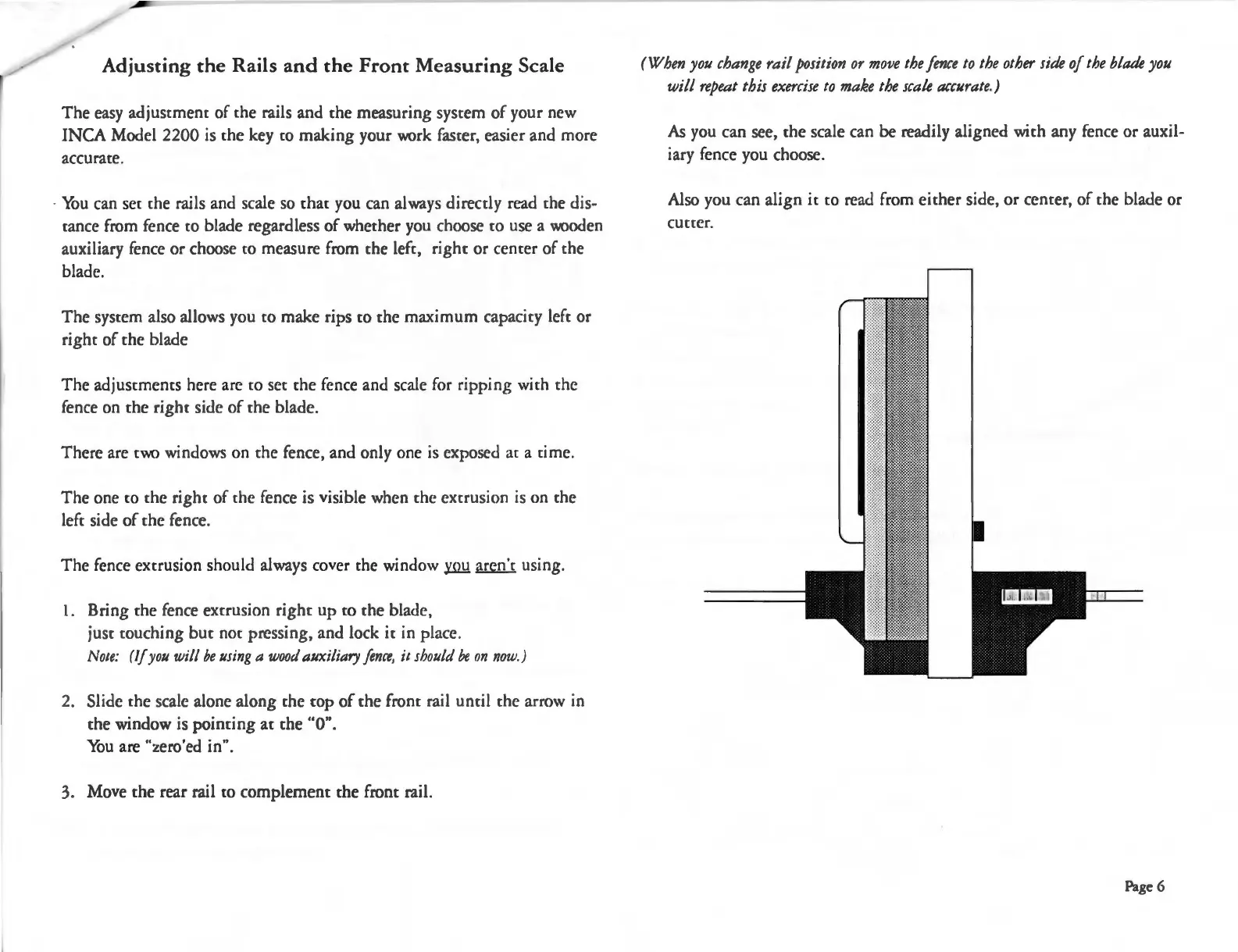

Adjusting
the
Rails
and
the
Front
Measuring
Scale
The
easy
adjustment
of
the rails and the measuring system
of
your new
INCA Model
2200
is the key
co
making your work faster, easier and more
accurate.
·
You
can set the rails and scale
so
chat you can always directly read
che
dis-
tance from fence
to
blade regardless
of
whether you choose
to
use a wooden
auxiliary fence or choose
to
measure from
che
left, right or center
of
the
blade.
The system also allows you
to
make rips
co
the maximum capacity left or
right
of
the blade
The
adjustments here arc
to
set che fence and scale for ripping with the
fence on the
right
side
of
the blade.
There are
nm
windows on the fence, and only one is exposed at a time.
The one
co
the right
of
the fence is visible when the extrusion is on the
left side
of
the fence.
The
fence extrusion should always cover the window
you
aren't using.
l.
Bring the fence extrusion
right
up
co
the blade,
just couching buc
noc
pressing, and lock
ic
in place.
Note:
(If
you
will
be
using
a
wood
auxiliary
fence,
it
should
be
on
now.)
2.
Slide the scale alone along the cop
of
che front rail until the arrow in
the window is
pointing
ac
the
"O".
You
are "zero'ed in".
3. Move the rear rail
co
complement the front rail.
(When
you
change
rail
position
or
move
the
fence
to
the
other
side
of
the
blade
you
will
repeat
this
exercise
to
make
the
scak
accurate.)
As
you can see, the scale can
be
readily aligned with any fence or auxil-
iary fence you choose.
Also you can align
it
co
read from either side,
or
center,
of
the blade or
cuccer.
