LSU Installation Page 2.2 - 3 2.2
4) Apply Pipe dope to the line leak detector threads per Figure 2.2-4.

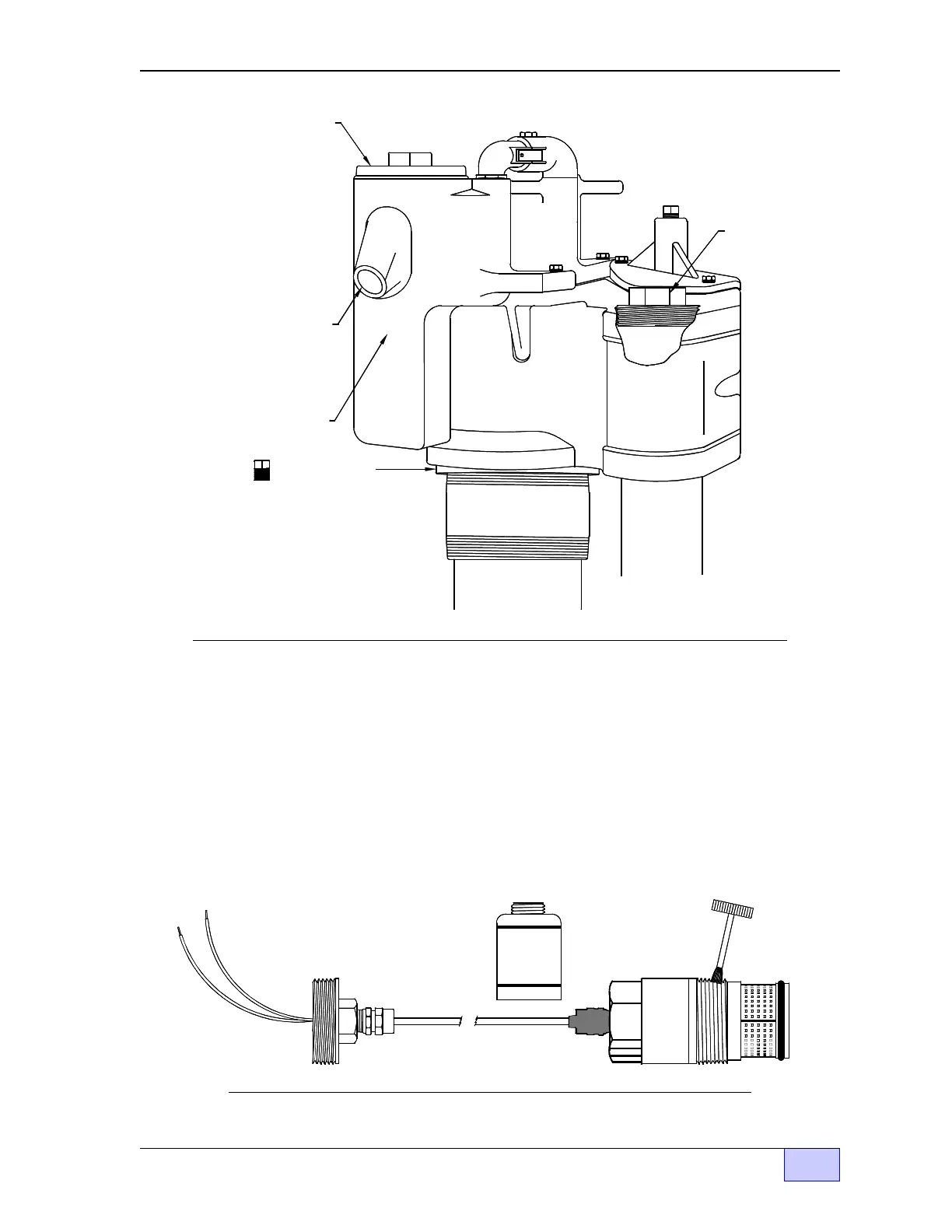

Figure 2.2-3 Plug Location – FE Petro Submersible Pump Housing
Figure 2.2-4 TS-LLD Leak Sensing Unit – Thread Doping
Pip
e
Dope
TS-LLD
LINE LEAK DETECTOR
LEAK SENSING UNIT
(LSU)
Pipe dope
only these
threads
1/4" PLUG
PUMP HOUSING
STATION
CONDUIT
PORT
3" PLUG
2" PLUG
PIPELINE
