2.2 Page 2.2 - 4 TS-LLD INSTALLATION GUIDE
5) Insert the Leak Sensing Unit into the line leak port at the pump housing. See
Figure 2.2-5, or 2.2-6, and tighten the detector with a 2 inch hex – open end
wrench (no larger than 12" long to prevent overtightening and possible pump
housing damage or leaks). DO NOT overtighten the LSU in the pump head !
The MI Cable should be straight, vertical and able to rotate
freely with the LSU during the insertion or removal process.

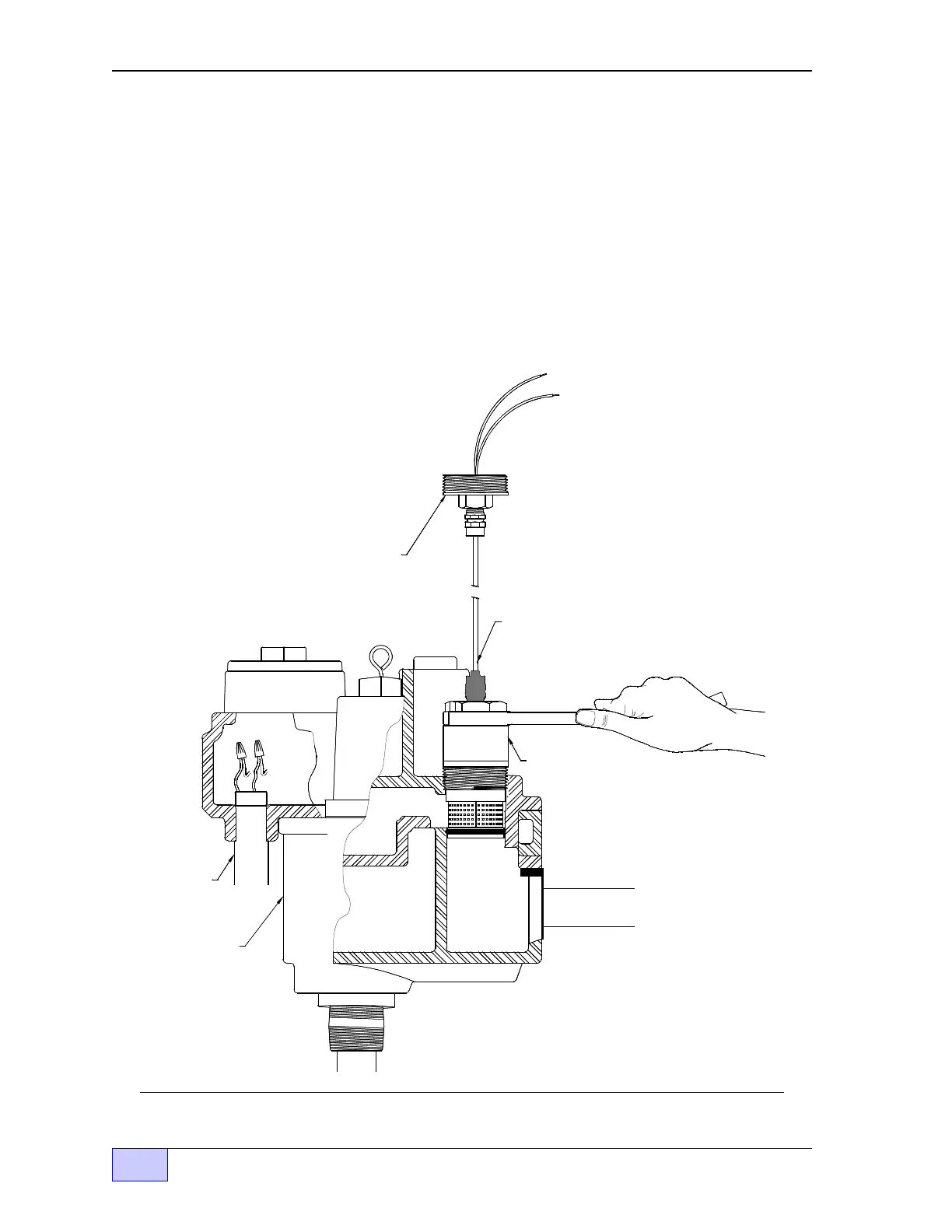

Figure 2.2-5 Line Leak Detector Installation – RedJacket
®
Pump Housing
NOTE
☞
PIPELINE
M I CABLE
STATION
CONDUIT
PUMP
HOUSING
LINE LEAK
DETECTOR
M I CABLE
ADAPTER
