2.2 Page 2.2 - 6 TS-LLD INSTALLATION GUIDE
6) Carefully bend the thin-wall MI cable by hand and align the 2 or 3 inch cable
adapter fitting with the
junction box
plug opening. Support the MI cable with both
hands when bending to fit. DO NOT force or bend the MI cable against the
compression fittings. Be sure you leave enough room to work (as shown in Figure
2.2-7, or 2.2-8).
Avoid breaking the MI cable — DO NOT bend the MI cable too
close to the fittings. An LSU that has a damaged MI Cable is
unusable and must be replaced before power is applied.
7) Carefully remove each wirenut, one at a time and check each for the absence of
power (see Figure 2.2-7, or 2.2-8).

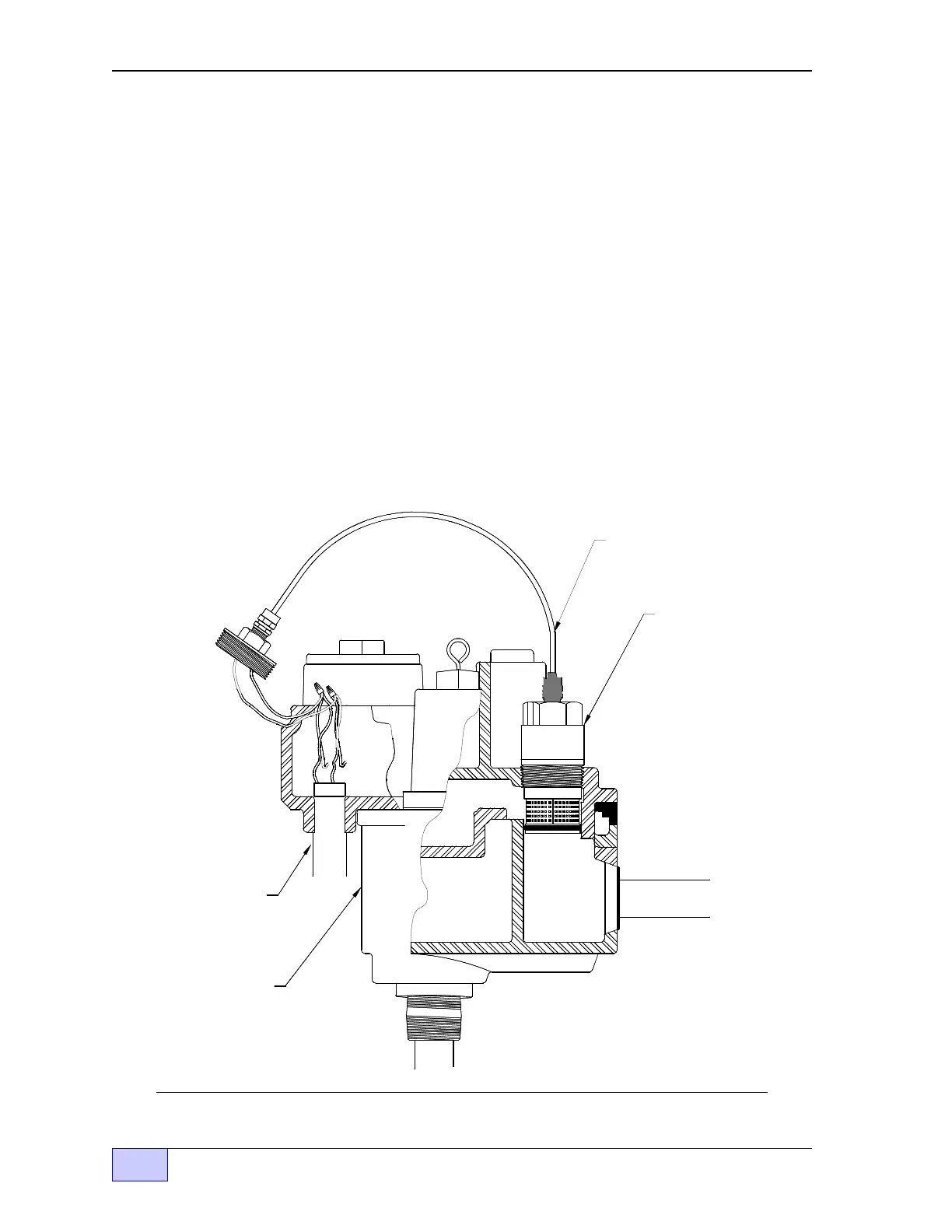

Figure 2.2-7 Line Leak Detector Wiring – RedJacket
®
Pump Housing
NOTE
☞
PUMP
HOUSING
STATION
CONDUIT
M I CABLE
LINE LEAK
DETECTOR
PIPELINE
