2.2 Page 2.2 - 8 TS-LLD INSTALLATION GUIDE
9) Stuff the wires back into the pump housing and carefully finish bending the MI
cable so that the cable adapter engages the threaded opening of the junction box.
Make sure to push the wires down enough to avoid pinching, or cutting through
the wire insulation from the cable adapter when it is tightened down.
Reference
Figure 2.2-9, or 2.2-10.
10) Tighten the MI cable adapter (new junction box cover) after making sure that
compression fitting is loose and is able to rotate freely — to prevent bending
and twisting damage to the MI Cable. Apply electrically conductive pipe dope to
the cover or the junction box. Use a 12 inch adjustable wrench. Reference Figure
2.2-9, or 2.2-10.

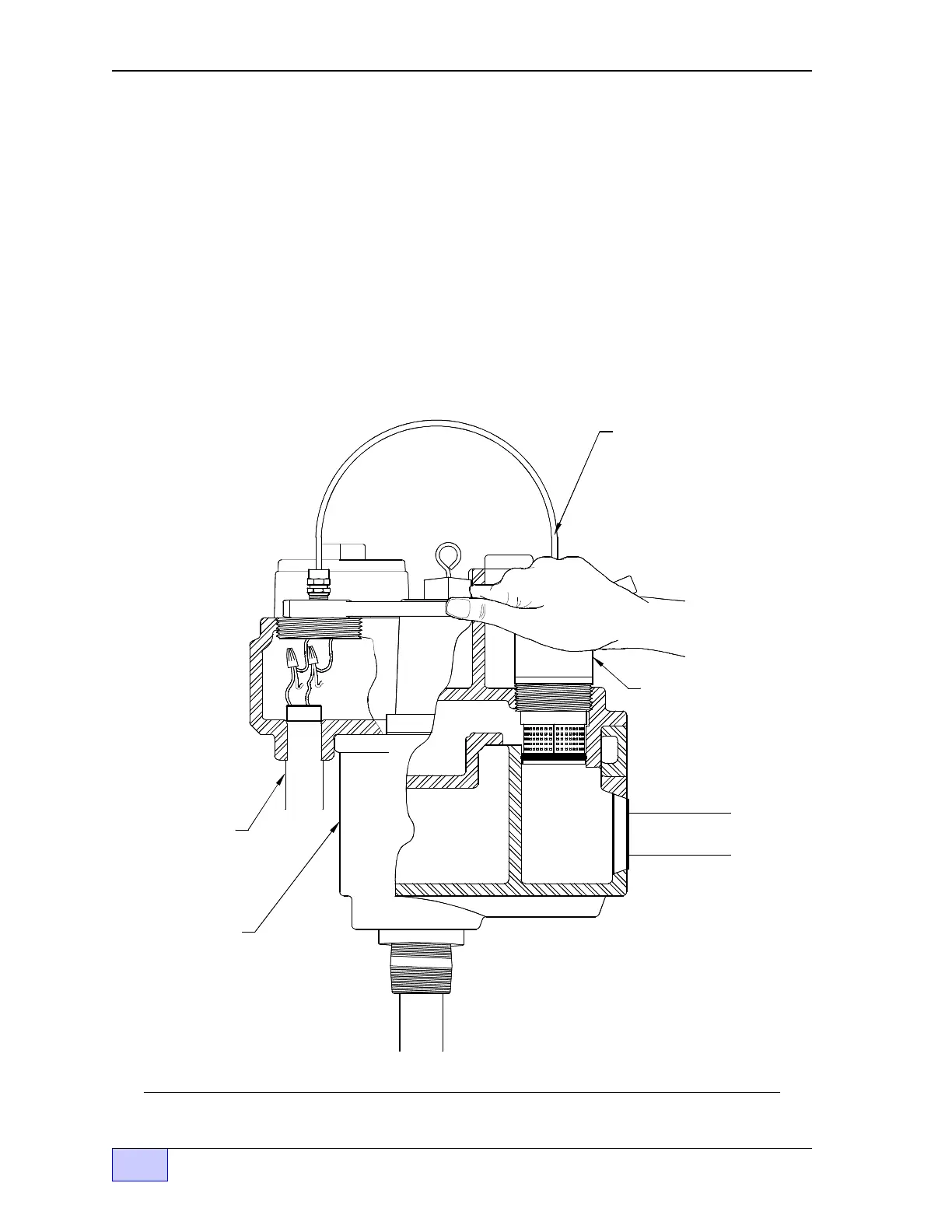

Figure 2.2-9 MI Cable Adapter Installation – RedJacket
®
Pump Housing
M I CABLE
STATION
CONDUIT
PIPELINE
PUMP
HOUSING
LINE LEAK
DETECTOR
