2.2 Page 2.2 - 10 TS-LLD INSTALLATION GUIDE
11) Tighten the MI cable compression fitting with a 7/8 inch wrench. Be careful
not to overtighten the compression fitting – avoid MI cable twisting / bending
damage and failures – torque to 25 lbs/ft. Reference Figure 2.2-11, or 2.2-12.
12) Recommended for Red Jacket installations: inspect and replace the check valve
under the functional element – IF – it doesn’t have a stainless steel stem. Use
Red Jacket replacement part number: 144-184-5.
13) Finally, inspect the MI Cable at the LSU (Leak Sensing Unit) for damage, twists,
kinks, or breaks — a LSU that has a damaged MI Cable is unusable and must be
replaced before power is applied. Install a new LSU if the MI Cable is damaged.

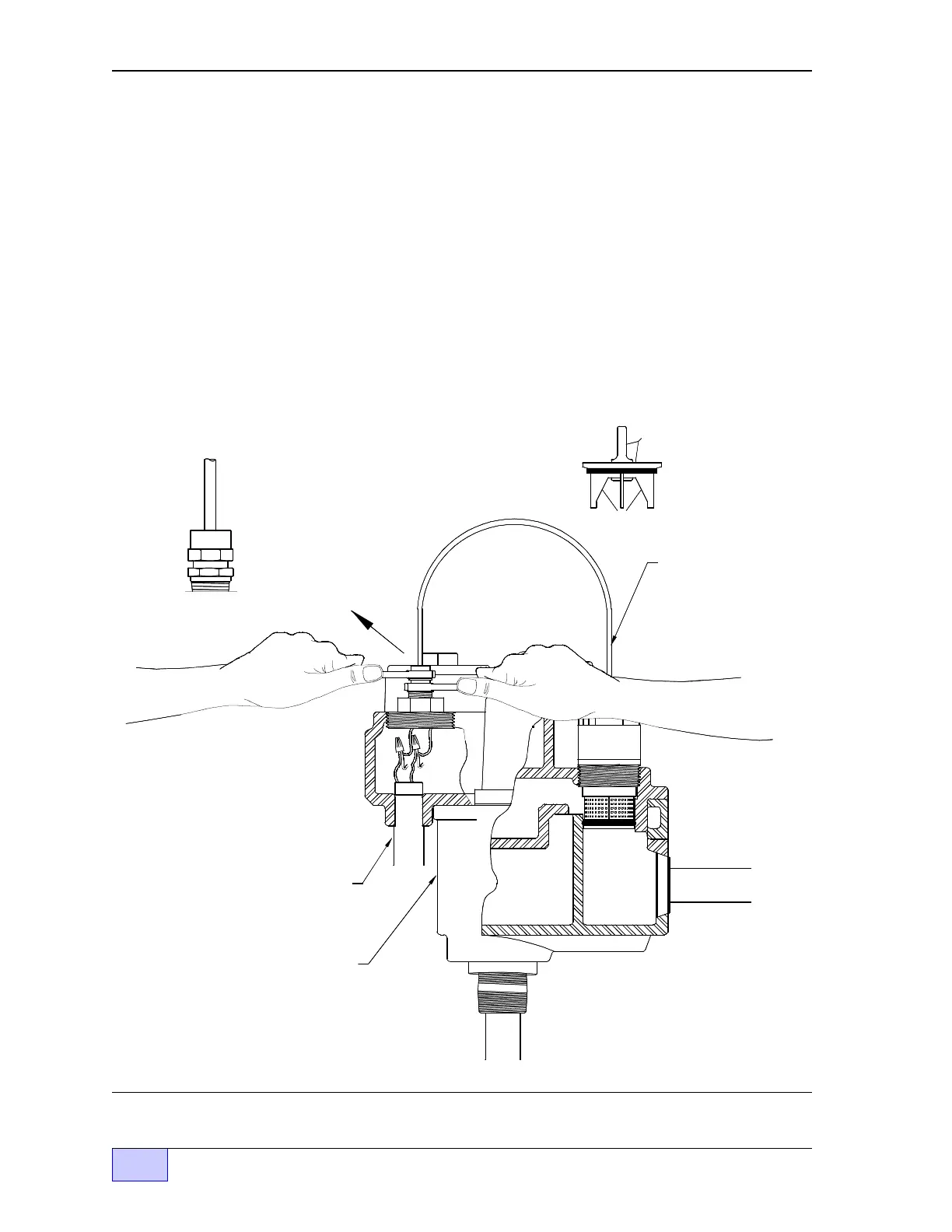

Figure 2.2-11 Tightening MI Cable Adapter Compression Fitting – RedJacket
®
Pump
M I CABLE
DETAIL A
M I Cable
Lower Junction Box /
Cable Adapter Fittin
g
Upper
Compression Fittin
g
Stainless
Steel
ste m
Check Valve
Detail
Plastic
PUMP
HO USING
STATION
CO ND UIT
PIPELINE
