LSU Installation Page 2.2 - 11 2.2

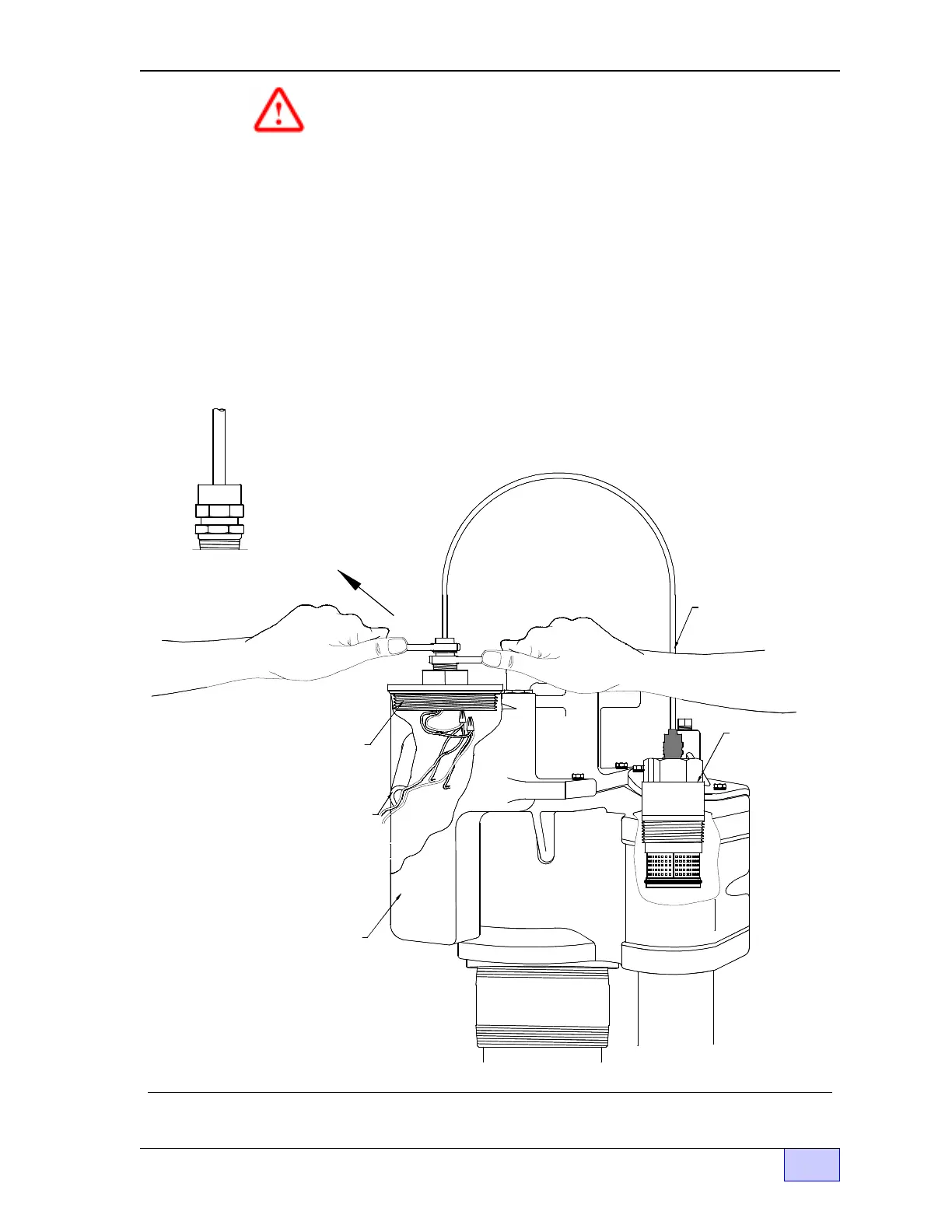

Figure 2.2-12 Tightening MI Cable Adapter Compression Fitting – FE Petro Pump
PUMP
HOUSING
STATION
CONDUIT
PORT
M I C ABLE
AD APTER
M I C ABLE
DETAIL A
M I C able
Lower Junction Box /
Cable Adapter Fittin
Upper
Compression Fittin
PIPELINE
LINE LEAK
DETECTOR
DANGER
Explosion Hazard — Flammable Vapor Area.
After any installation or service of the submersible pump or its
housing, inspect the MI Cable at the LSU (Leak Sensing Unit) for
damage, twists, kinks, or breaks... 240 VAC power flows through
this cable to the LSU.
DO NOT apply power if the MI Cable is
damaged, twisted, kinked, or broken.
Electrical sparks or fire in
this area could cause an explosion, injury or death.
