6.3 - ELECTRICAL CONNECTIONS
“CUBE”’s electrical connection is relatively simple; however, when in doubt, please contact the INDEL-B
assistance staff or an authorised workshop.
There are three methods for performing the power connections:
- through the utility power outlet, usually used for the coffee machine, kettles, etc (normally an option for the
vehicle); if it is present, make sure that the power is suitable for absorption and, in any case >45A.
- through power and grounding points which in most vehicles are located in the cabin (normally behind the
dashboard on the passenger’s side in the relay and fuse section); this solution allows to always be able to use
“CUBE”’s power source.
- directly to the vehicle’s battery; the advantages of this solutions lie in the fact that it is not necessary to
disassemble any component inside the cabin, but there will be an extension lead which will have to feed “CUBE”
in the cabin.
In case “CUBE”
must be moved from one vehicle to another it is possible, regarding the electrical connections, to
use a bridle (G.1) so
as to not have to remove the one connected to the first vehicle. For this purpose, contact
INDEL-B.

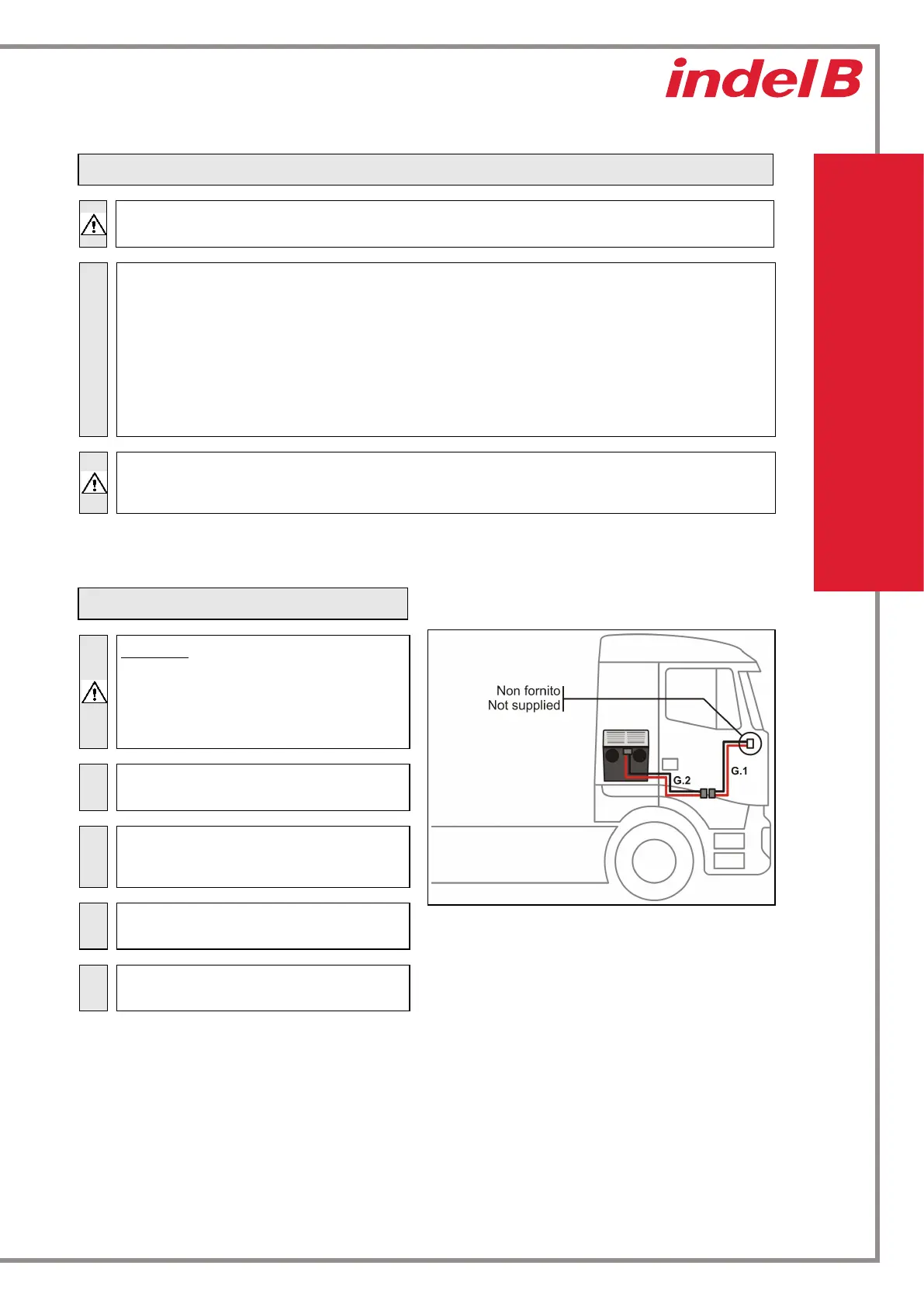

Method for connection to the utility power outlet:
WARNING: if there is a power outlet,
that the power is suitable for
in any case >45A.
The outlet’s counterpart is not
“CUBE”
(refer to the vehicle manufacturer’s
assistance service).
1
Cut and remove the eyelets at the tips of the
bridle’s red and black wires (G.1).
2
Connect
the purchased counterpart to the bridle’s
red and black wires (G.1)
eyelets.
2
Connect the bridle’s (G.1)
power outlet.
4
Connect the power lead (G.2) to the bridle (G.1)
and to “CUBE”.
ENGLISH
29
