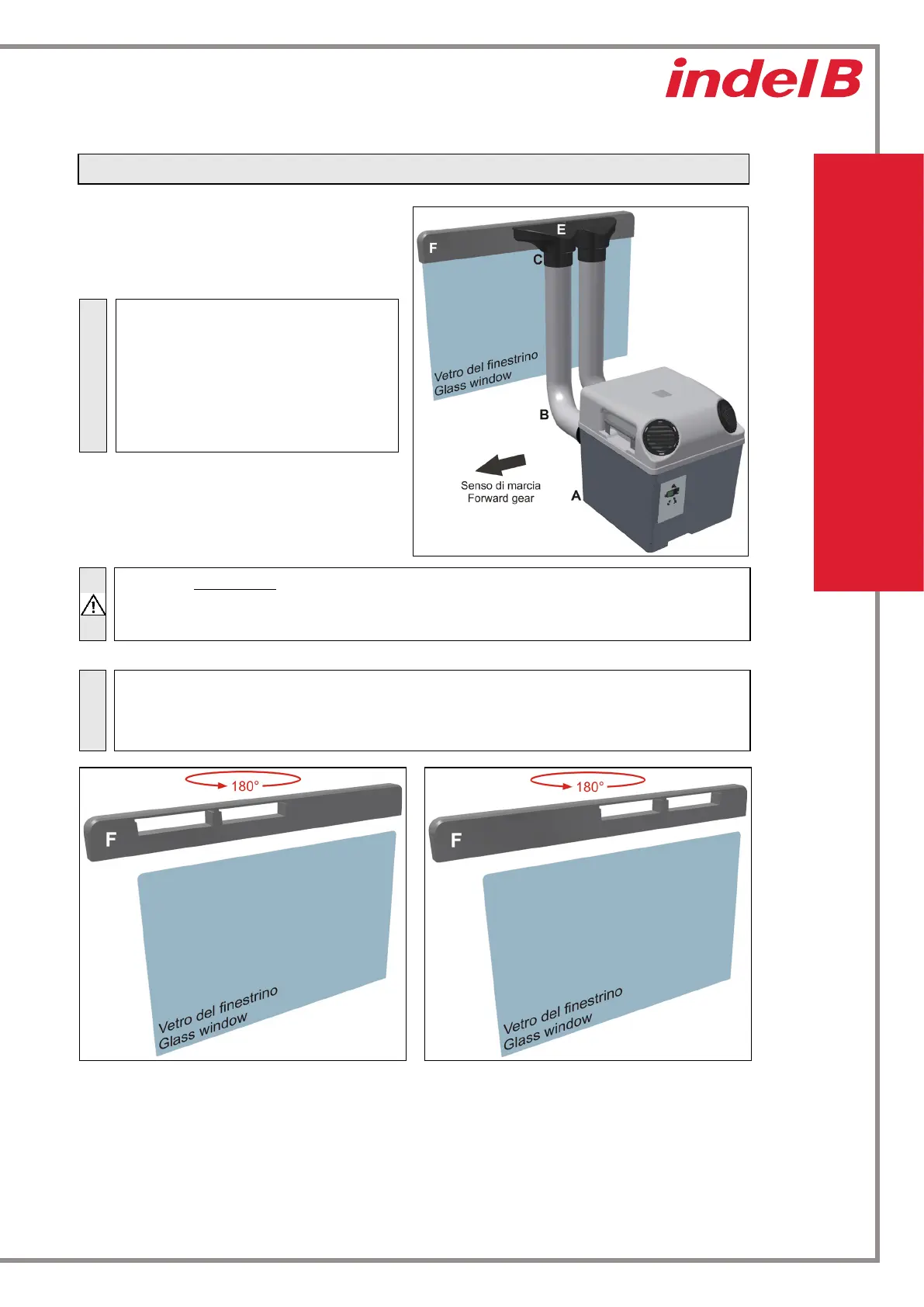

6.5 - GASKETS ON WINDOW
In order for “CUBE”
to operate, it is necessary to
connect the flexible tubing (B)
secured in the back of “CUBE”
side window for air Exc
hange, where they will be
secured with a snorkel (E) and a gasket (F).
The solution with the tubing secured to the
window is standard, but you could also opt for
alternative solutions (for example by directing the
tubing to the cabin’s trap door).
WARNING: when driving it is necessary that visibility of the rear-view mirrors and through the
side windows is NOT compromised. To this end, endeavour to place tubing, snorkel and gaskets in the
least obtrusive manner possible; if visibility is compromised reposition “CUBE” and its relative components in a
more suitable place.
The gasket (F) must be secured to the window; it has two openings for the snorkel (E)
to which the tubing will be
connected (B) by means of the nozzles (C).
The gasket’s two openings are positioned asymmetrically so that (by rotating the gasket 180°) it is possible to
position the snorkel (and the tubing) a little forward or a little backwards with respect to the direction of motion.
ENGLISH
33
