Transportation, Installation, Commissioning
LL1602.10043 - 04.08.2014
ABC
QUICK START MANUAL FOR TRANSPORT ABC
INDEX-Werke GmbH & Co. KG
Hahn & Tessky
D-73726 Esslingen
Fax +49 (0)711 3191 - 587
E-Mail: TED@INDEX-Werke.de
Unloading the machine with a crane
min. 1700
ca. 1250

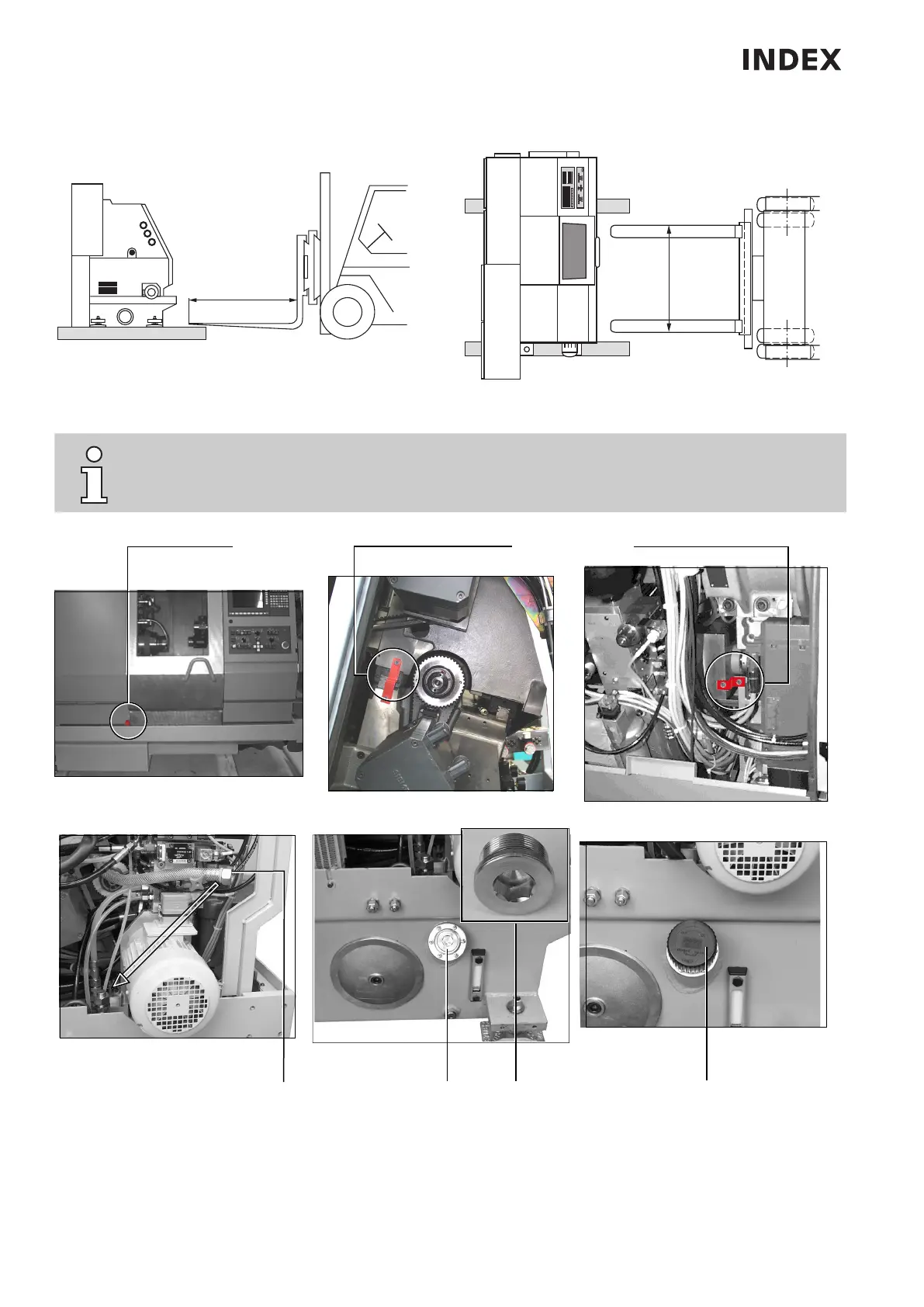

Securing devices for Transport
Before start-up all securing devices for the transport must be removed. Shipping brackets are identi-
fied by their red color.
Siding guard Turret 1 ( Z-axis) Turret 2 ( Z-axis)
L1601.100 41_ 4 L1601.100 41_ 21 L1601.100 41_ 6
L1601.10 0 41_15 L1601.10 0 41_17/18 L1601.10 0 41_19
1 2 2 3
Connec t the leakage oil-line from the chuck-
ing cylinder (1) to the oil tank (36mm A /F).
Unscrew the closing plug (2), and replace it
with the filling and airing filter (3).
Fig. 2
Transport of the machine by fork lift truck
L16 01.10 041_10
