Transportation, Installation, Commissioning
LL1602.10043 - 04.08.2014
ABC
INSTALLATION
Putting-up and alignment of attachments
Bar support, bar feed or bar loading magazine are provided with levelling pads with
which they must be aligned with the machine’s workspindle or Spindle drum within
± 0.1 mm deviation per 1 m.
Workpiece conveyor belt, palletizing station etc. have levelling elements by means
of which they can be levelled longitudinal and transversely to the main spindle tur-
ning axis within ± 0.1 mm/m.
(Refer to the chapters "Preparations", "Floor, Foundations" and to the appropriate
installation plans in the chapter "Working Data".)
Anchoring the Machine
When you anchor the machine this is done at the levelling elements (3) and (4).
Use the delivered anchoring brackets (refer to picture).
When a bar feed or a bar loading magazine are to be anchored the bar support
must be aligned with the workspindle before. (Refer to section "Putting-up and
alignment of attachments".)
For the method of anchoring and the distances of the anchoring bolts in the foun-
dation refer to the machine installation plan in the chapter "Working Data".

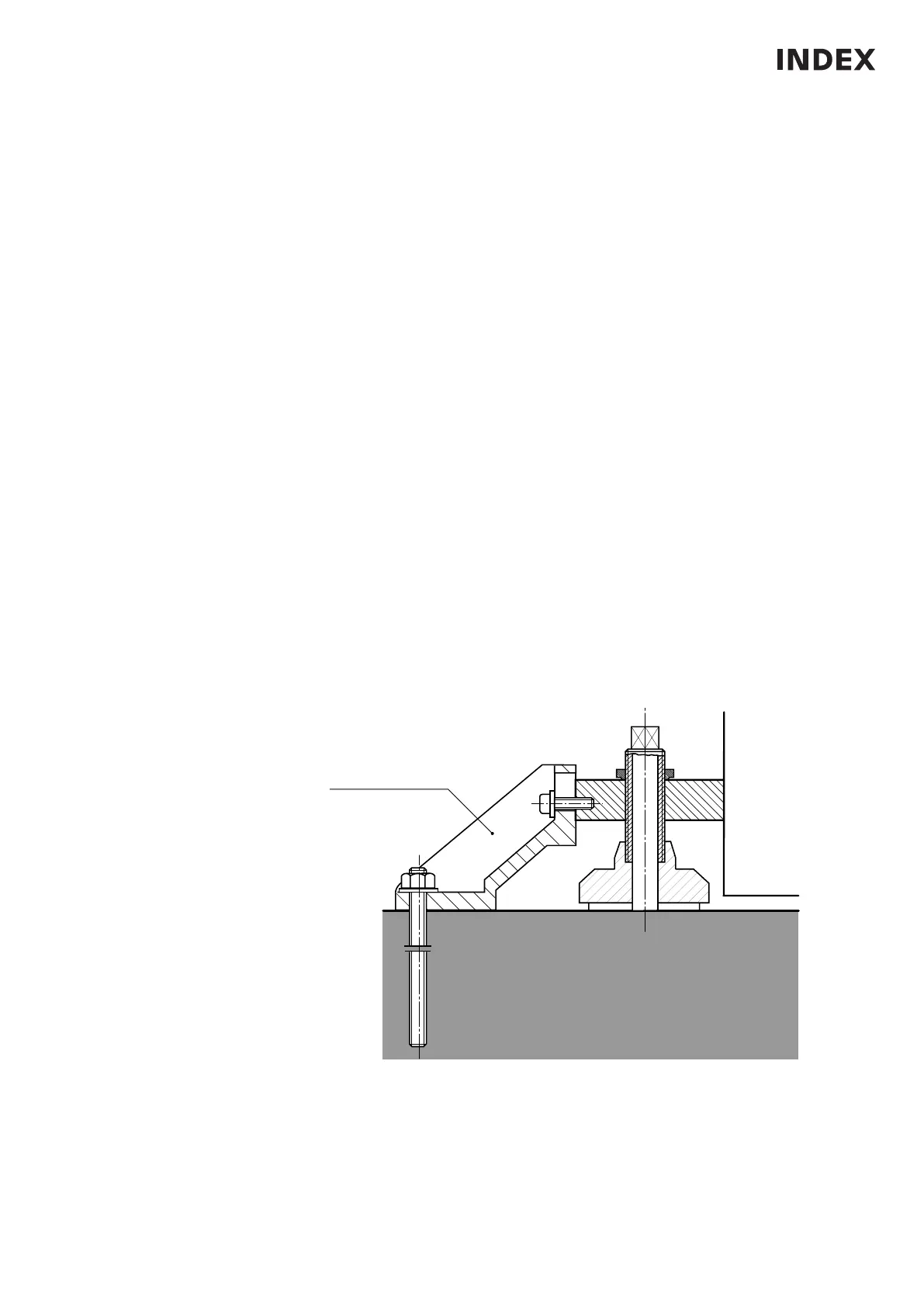

Fig.: Anchoring the Machine
L1601.100 41_21.eps
Anchoring bracket
