Transportation, Installation, Commissioning
LL1602.10043 - 04.08.2014
ABC
PREPARATIONS
Placing the machine

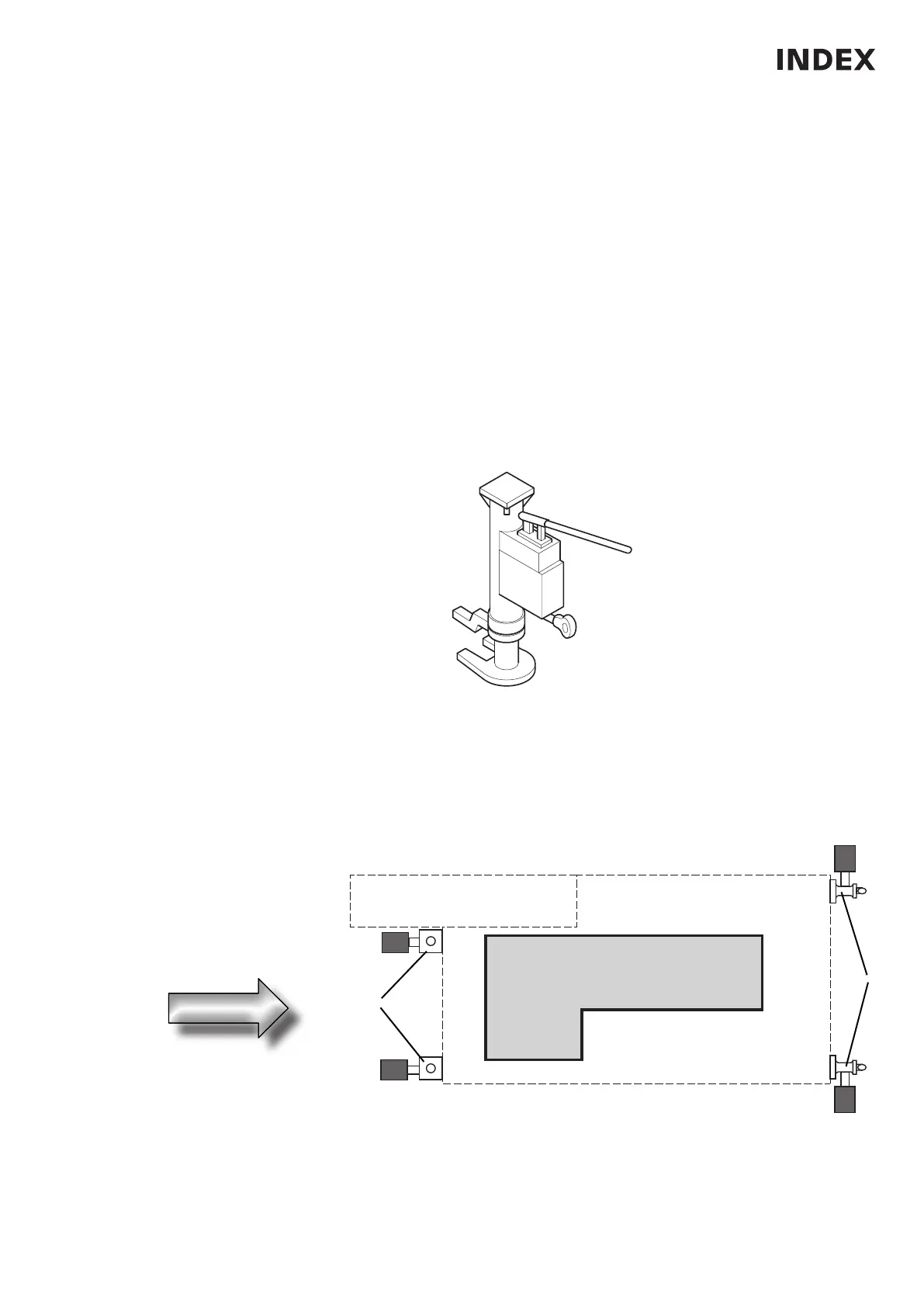

Fig.: Hydraulic jacks
This side must be lowered first
1 Levelling elements
2 Hook
Fig.: Placing points
L1601.10 0 41_ 9
If a forklift cannot be used for lowering the machine you must select a transporta-
tion means corresponding to the lifting height of the hydraulic jacks.
In this case we recommend the use of casters, as they require a lower lifting
height.
Only special professional hydraulic jacks with the following specifications may be
used:
– The hydraulic jacks must have sufficient load bearing capacity.
– The jacks must stand securely during jacking-up and lowering, they must not
topple
– The load must not be able to slide.
– Delicate continuous lowering must be possible.
– The load must not be damaged during lifting and lowering.
P1201.10051_ 21
1
2
