Index ABC - Tool Carrier Securing; Securing Tool Carrier 1; Securing Tool Carrier 2

31
Transportation, Installation, Commissioning
LL1602.10043 - 04.08.2014
ABC
CHANGING THE LOCATION

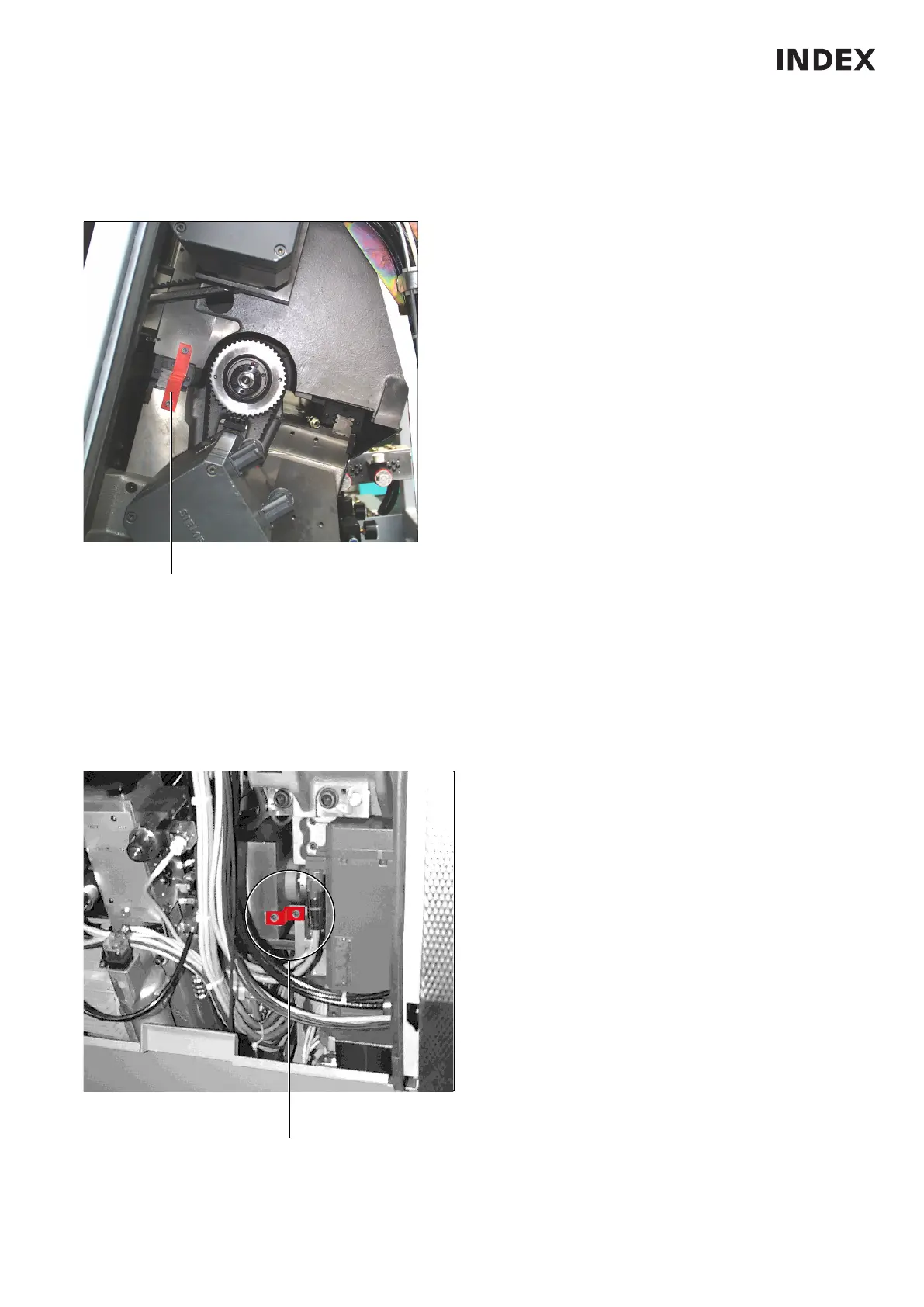

Tool carrier 1 - Z-axis
Travel the tool carrier in Z1-axis to the position in which the securing plate (3) can be fitted.
Distance in X-direction is arbitrary. Screw the securing plate to the compound slide and to the machine bed.
Tool carrier 2 - Z-axis
Traverse the tool carrier 2 in Z2-axis to the distance M1-N2 = 111 mm, in X2-axis to any distance.
Screw on the securing plate (4).
3
L1601.10 0 41_ 21
4
L1601.10 0 41/6
