3. Programming Module AS
3.3. Rating plate
1 Type designation
In the standard version, programming modules carry the suffix -000.
Customised programming modules end with a personalised number
determined by INDRAMAT.
2 Motor ratings
3 Controller ratings
The ratings given on the programming module for motor and controller
must coincide with those of the installed motor and controller, otherwise
there is a risk of damage to the equipment!
4 Software designation
The alphanumerical code, including the letter "V", denotes the software
type and version, the following digits represent the serial number of the
software update.
5 Date of parameter selection
This records the technical status of the parameter values, including the
parameter values as recorded at INDRAMAT.
KDA 2V0.1
dFAC/24.10.90
KDA 2V0.1
AbA6/27.06.90
4
5
2
3
1
AS 71/005-000
Motor: 2AD 100 B- ..... -AS.3
Contr.: TDA1.1-050-3-..
Software: KDA 4V1.7
Parameter: 01.07.91 Serien-Nr.:
AS

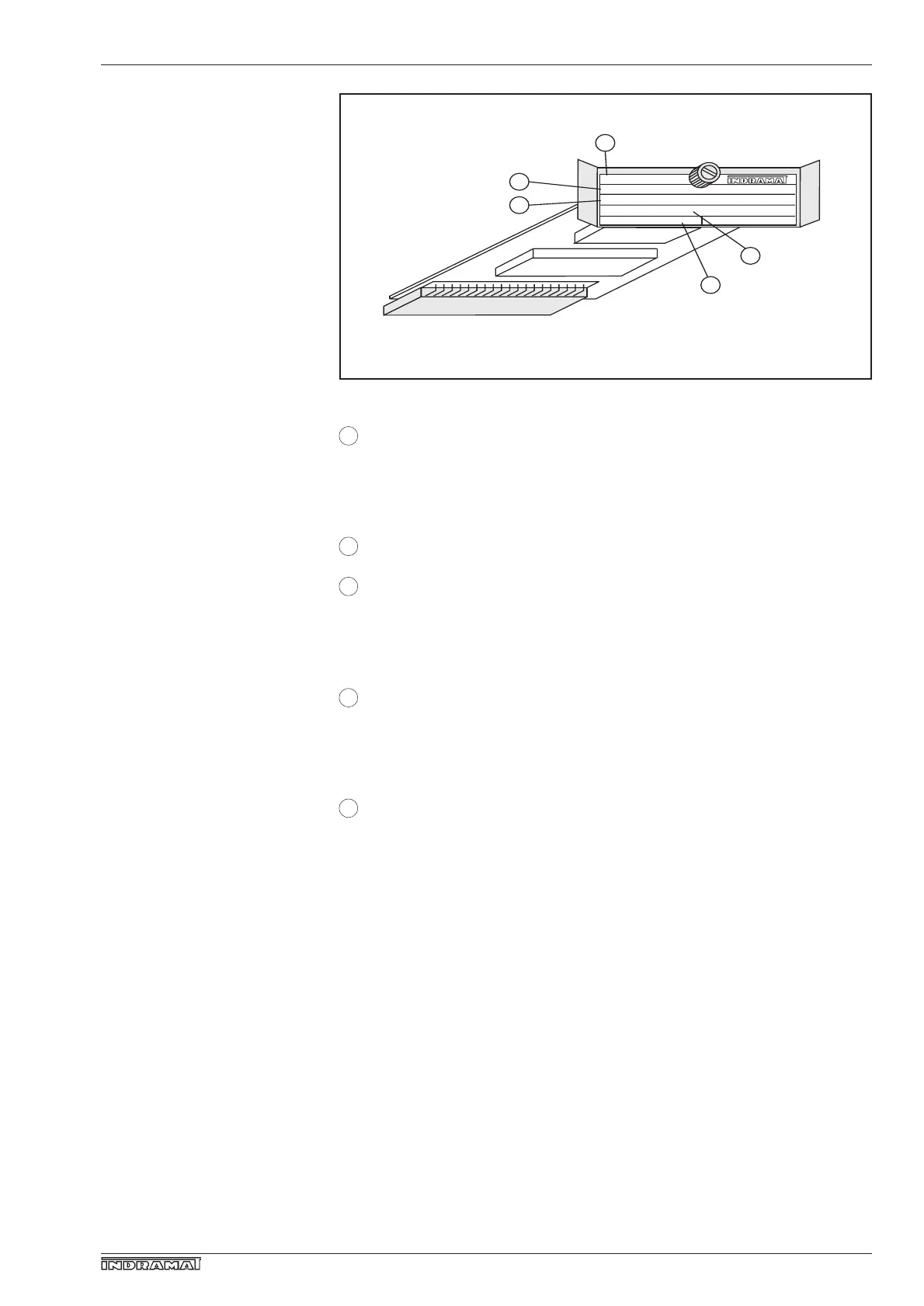

Fig. 21: Programming module with ratings
