Indramat TDA 1 - Operating Conditions

14
• DOK-DIAX01-TDA********-PRJ1-EN-E1,44 • 07.97
2. Control cabinet design
Information on integrating the main spindle controller TDA 1 into the
design is structured according to
– operating conditions
– mechanical data
– thermal data
– electrical data
– technical data/type code
The values given in the selection data for main spindle drives are
unconditionally valid when the controller is operated within an ambient
temperature range of +5 to +45°C. The maximum permissible ambient
temperature is +55°C, at which the given values for torque and power
ratings will be limited according to the graph shown in Fig. 6.
2. Control cabinet
design

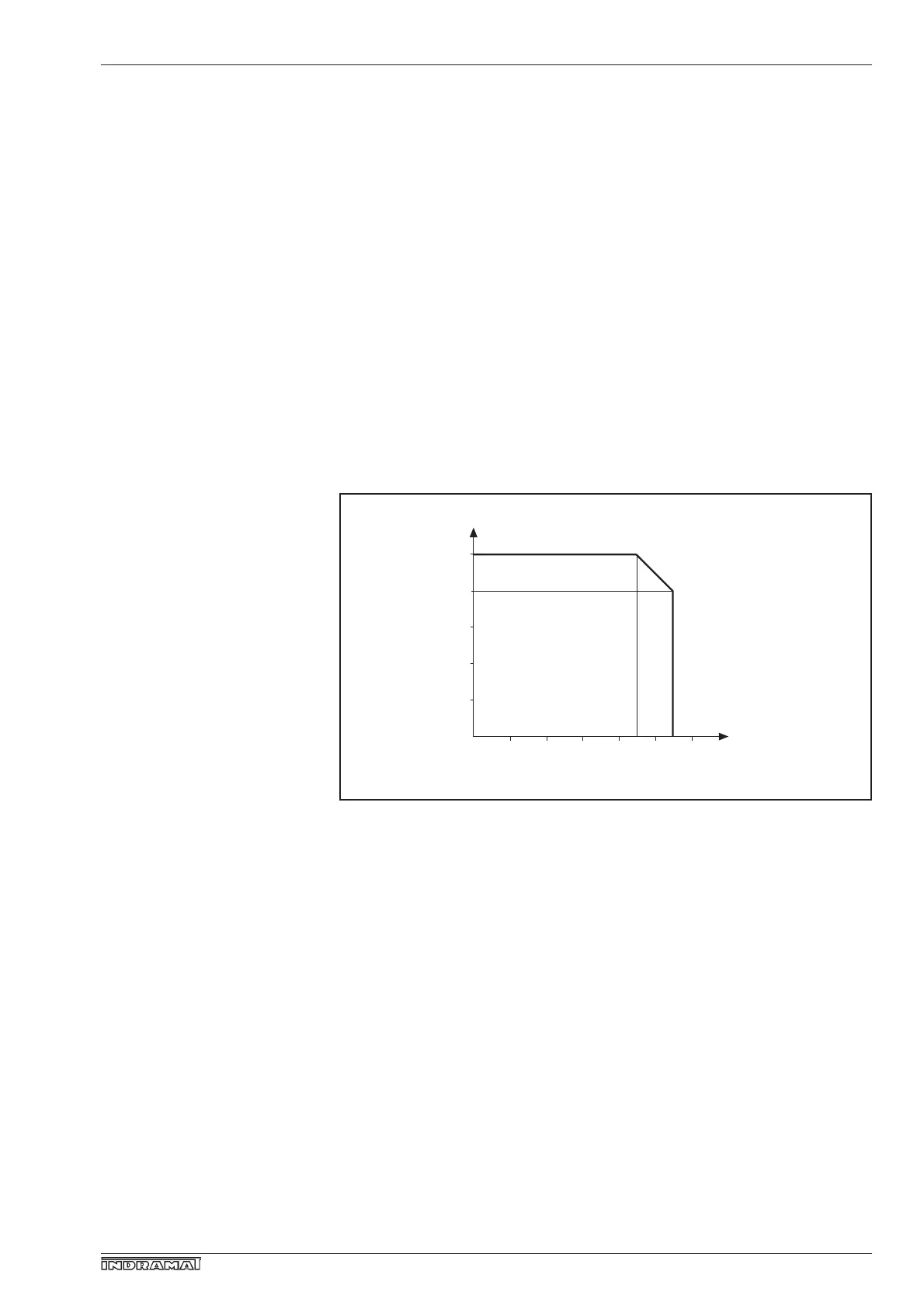

Fig. 6: Temperature-related limitation of drive ratings
100
80
60
40
20
0
0 10 20 30 40 50 60
Ambient temperature ϑ [°C]
Temperature factor [%]
2.1. Operating conditions
Ambient temperature
