19
• DOK-DIAX01-TDA********-PRJ1-EN-E1,44 • 07.97
2.3. Thermal data When in operation the controller TDA 1 dissipates heat through the air
vents in its housing to the air inside the control cabinet.
2. Control cabinet design
100 200 300 350
3,5
5,5
7,5
9,5
P
N
/kW
of the
motors
TDA 1.1-050
TDA 1.1-100
Power dissipation P
v
/W
verlstg.fh3
The power dissipated by the TDA 1 is dependent on the load. In terms
of dimensioning the cabinet or the air cooling system, it is however,
sufficient to know the power dissipation related to the continuous power
rating of the main spindle motor used.

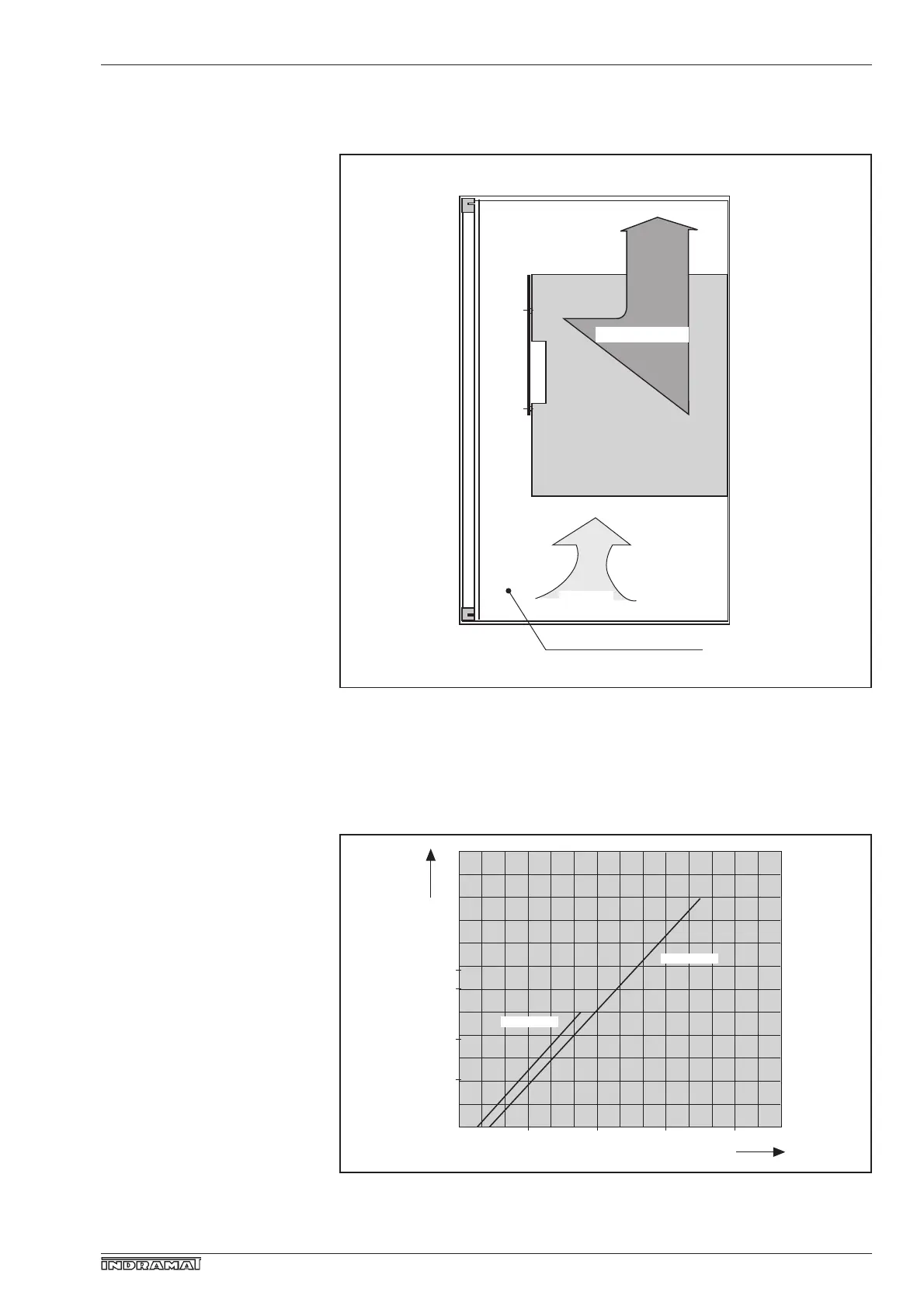

Fig. 11: Cooling principle of the controller TDA 1
Fig. 12: Power dissipation of the TDA 1
completely enclosed
housing or cabinet
Kühlart.fh3
TDA 1.1
Air flow
Power dissipation
P
V
