IDS 410/422 User's Manual
6
GENERAL DESCRIPTION
This section gives you a general description on the operation of the IDS 410/422's keyboard and
display. The keyboard is used to initiate weighing functions, for data entry, maintenance, setup,
and testing. The numeric display is used for weight and error display and for data entry. The
LED status lights indicate the status of the weigh scale.

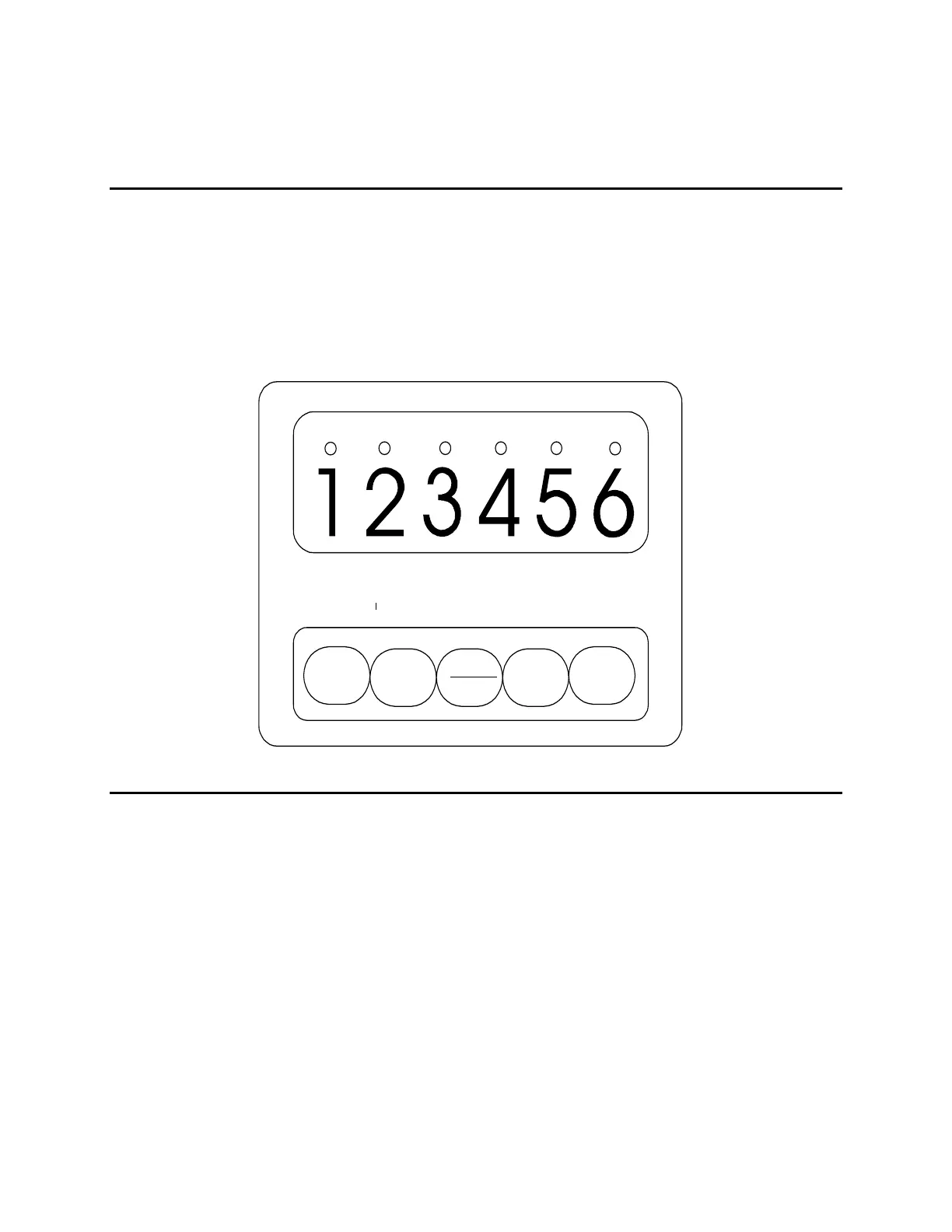

IDS 410/422 Display and Keyboard Diagram
The IDS 410/422 Display
The IDS 410/422 DISPLAY consists of a 6 character NUMERIC display and 6 status LED's The
NUMERIC display is normally used to display the weight on the scale. The LED's display the
scale status. When lighted they indicate the following conditions:
GROSS- The number displayed is the gross weight on the scale.
NET - The number displayed is the net weight on the scale.
MOTION- The weight on the scale is changing (not stable).
ZERO- The scale is at "Center of Zero".
LB- The weight displayed is in increments of LB's.
KG- The weight displayed is in increments of KG's.
GROSS NET MOTION ZERO LB KG
GROSS
NET
ZERO
TARE
UNITS
PRINT
CLEAR ITEM + - ENTER
