Buckle & Tongue
Assembly
Top Tether
Strap Guide
Attachment Clip
Safe Grip
(red belt clamp)
Lap Belt
& Sash Belt

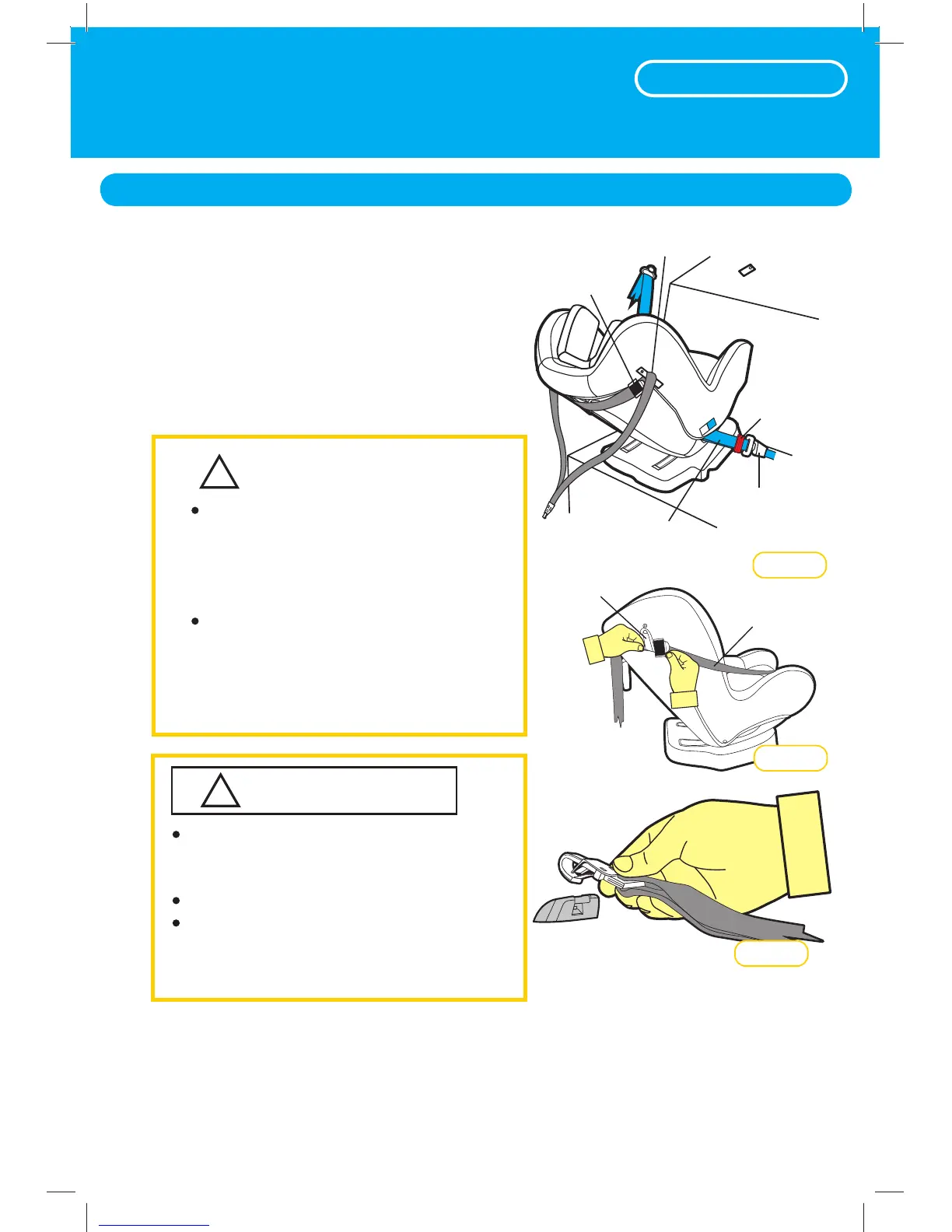

Figure 6
Adjuster
Installation
Infant Seat
Figure 8
Step 5:
Step 6:
Locate the adjuster at the side of the restraint and
secure using the Top Tether Strap Guide (refer
Figure 6 & 7).
Hook the attachment clip to the upper anchor tting
(refer Figure 8).
Ensure there are no twists in the top tether strap.
Note: If no upper anchorage tting is available refer
to Pages 49 & 50.
IMPORTANT
!
The purchaser should check the
measurements between the front of the
seat back of the rear seat and all front
seats in the car in which the child restraint
is intended to be used, to ensure that the
space is sufcient.
Care and attention should be given to
sufcient ventilation and shading of the
baby.
Always secure the loose end of the top
tether strap to prevent it hanging out of
the car or being accessible by the child.
Installing Using Vehicle Seatbelts
Top Tether
Strap
Top Tether
Strap Guide
Figure 7
DO NOT USE REAR FACING CHILD
RESTRAINT WHERE AN AIRBAG IS FITTED
IN FRONT OF THE SEATING POSITION.
Fit the restraint rmly to the car seat.
THIS TETHER STRAP MUST ALWAYS BE
FITTED WHEN THE CHILD RESTRAINT IS
USED IN A VEHICLE.
WARNING
!
