250
A
Mounting hole
position size
240
Φ180
4-Φ10

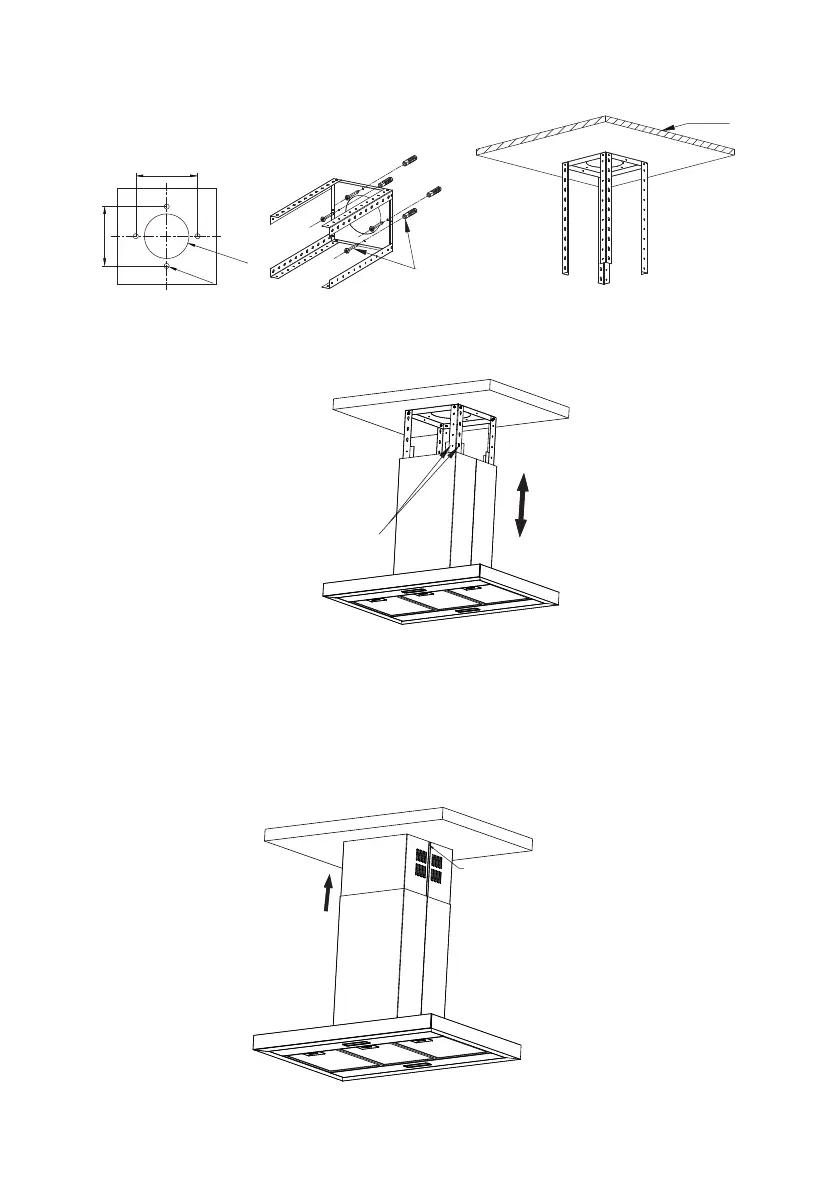

4.Drill holes
according to the Figure A with a Ф10 mm drill bit; and then insert the wall
plugs into the holes; Finally Fasten the adjustment hanger assembly to the ceiling by
4 Screws （ST5*50）.
Ceiling
4 Screws (ST5*50)
and 4 Wall plugs
2 3 4
5
7 8
9 10 11
5.
Fasten the Hood Body Assembly to the adjustment hanger assembly by using 8 Screws
(M4*8).
M4*8 (8 Screws)
6.Drag up the exhaust pipe and connect it to the public smoke exhaust system ; in
the meantime, connect the cord to the socket.
7.Drag up the Upper Decorative Chimney until the Upper Decorative Chimney touch
the ceiling, fasten with 2 Screws (M4*8) .
M4*8 (2 Screws)
