Installation

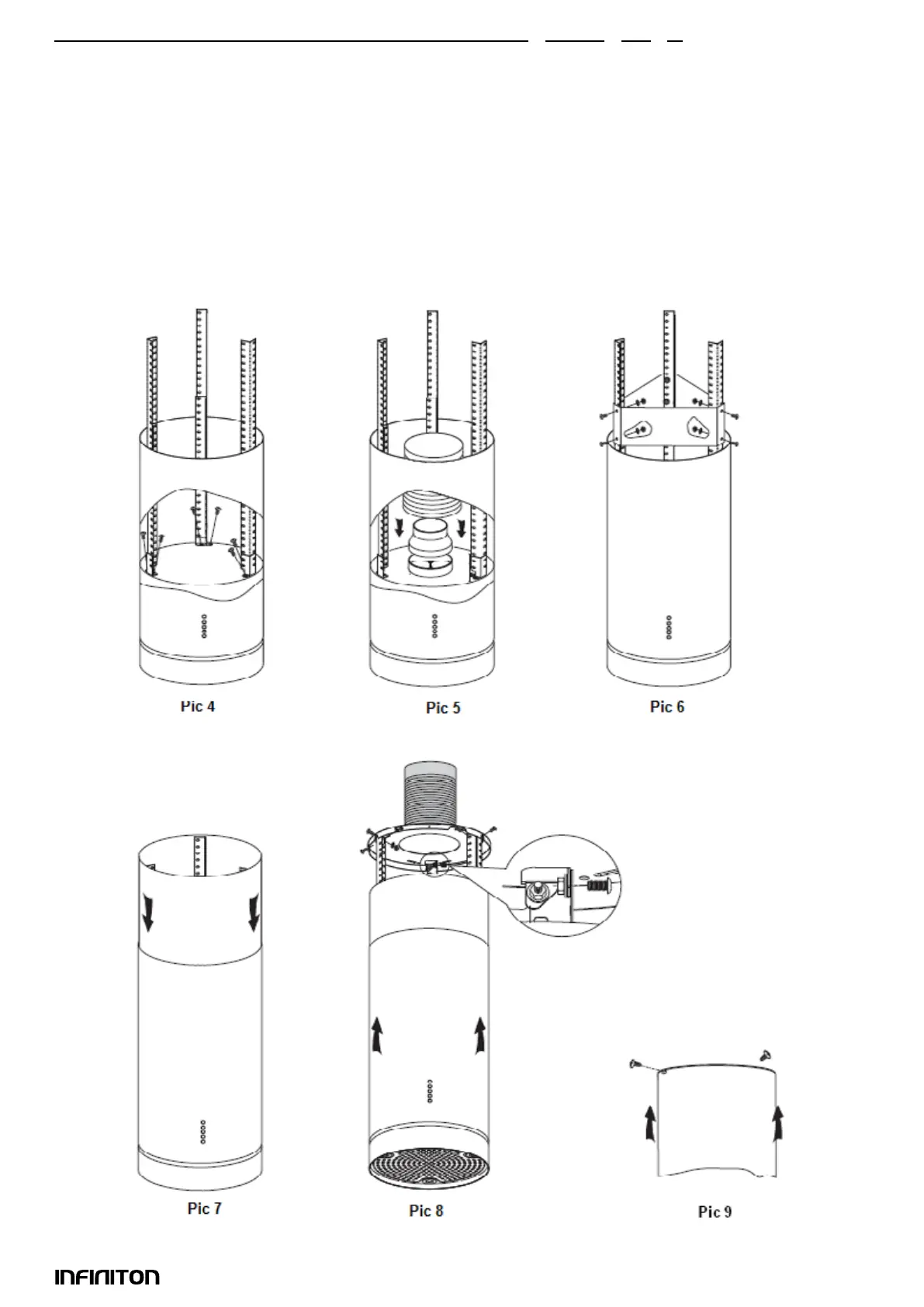

6. Using 6 pcs M4*10mm screws to x the angle iron on the cooker hood housing. See pic 4.
7. Put the expansion pipe on the converter, and then install the converter on the outlet. See pic 5.
8. Put xation of angle iron on the three installed angle iron. And then using 6 pcs M4*10mm screws, M4
nuts and washers to x. See pic 6.
9. Put the inside chimney on the cooker hood housing. See pic 7.
10. Put up the unit, and take the expansion pipe out of ceiling. And then using 6 pcs M4*10mm screws, M4
screw nuts and washers x the angle iron of unit to the hanging board. See pic 8.
11. Undrawn the inside chimney and use 3 pcs ST4*8mm screws to x the inside chimney on hanging
board. See pic 9.
