Infinity BU-150 - Bu-150 Amplifier Assembly Exploded View

15
Amplifier/Subwoofer BU-150

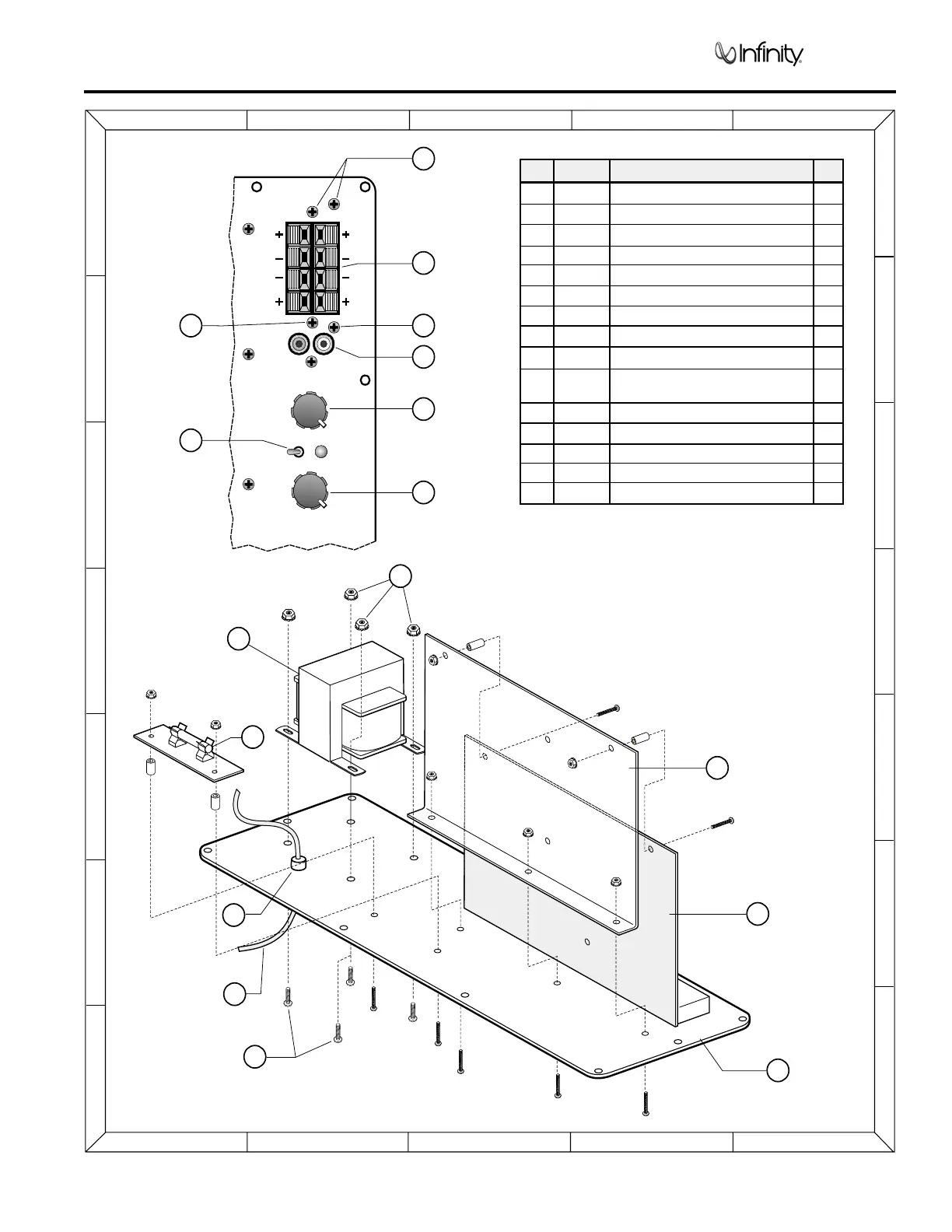

BU-150 AMPLIFIER ASSEMBLY EXPLODED VIEW
E
E
D
D
C
C
B
B
A
A
7
7
6
6
5
5
4
4
3
3
2
2
1
1
180
o
0
o
Min
50
Max
150
Level
Low
Pass
R
RR
L
LL
Power
Phase
SPKR
IN
SPKR
OUT
Line Input
1 A70302 2
2 70317 Face Plate (Aluminum) SAFETY PART 1
3 70318 PCB Support SAFETY PART 1
4 70150 Phase Switch 1
5 70170 #4 x 0.5" Screws to secure input jacks 5
6 70171 #10 x 1" machine screw Bolts 4
7 70172 #10 Keps Nut 4
8 70173 #6 x 0.5" Screws for fuse PCB 2
9 80124 Transformer MCI4700 SAFETY PART 1
10 80123 250V, 1.5A, T type SLO BLO Fuse 1
SAFETY PART
11 80112 Motherboard SAFETY PART 1
12 108115 High level input and output terminals 1
13 108320 Dual RCA input jacks 1
14 70305
Knobs
Pwr Cord Strain Relief SAFETY PART 1
15 80105 Power cord, 2 conductor SAFETY PART 1
BU-150
Amplifier Assembly
Exploded View
Ref.#
Part #
Description
Qty
5
12
5
13
1
1
7
9
10
6
15
14
4
5
3
11
2
