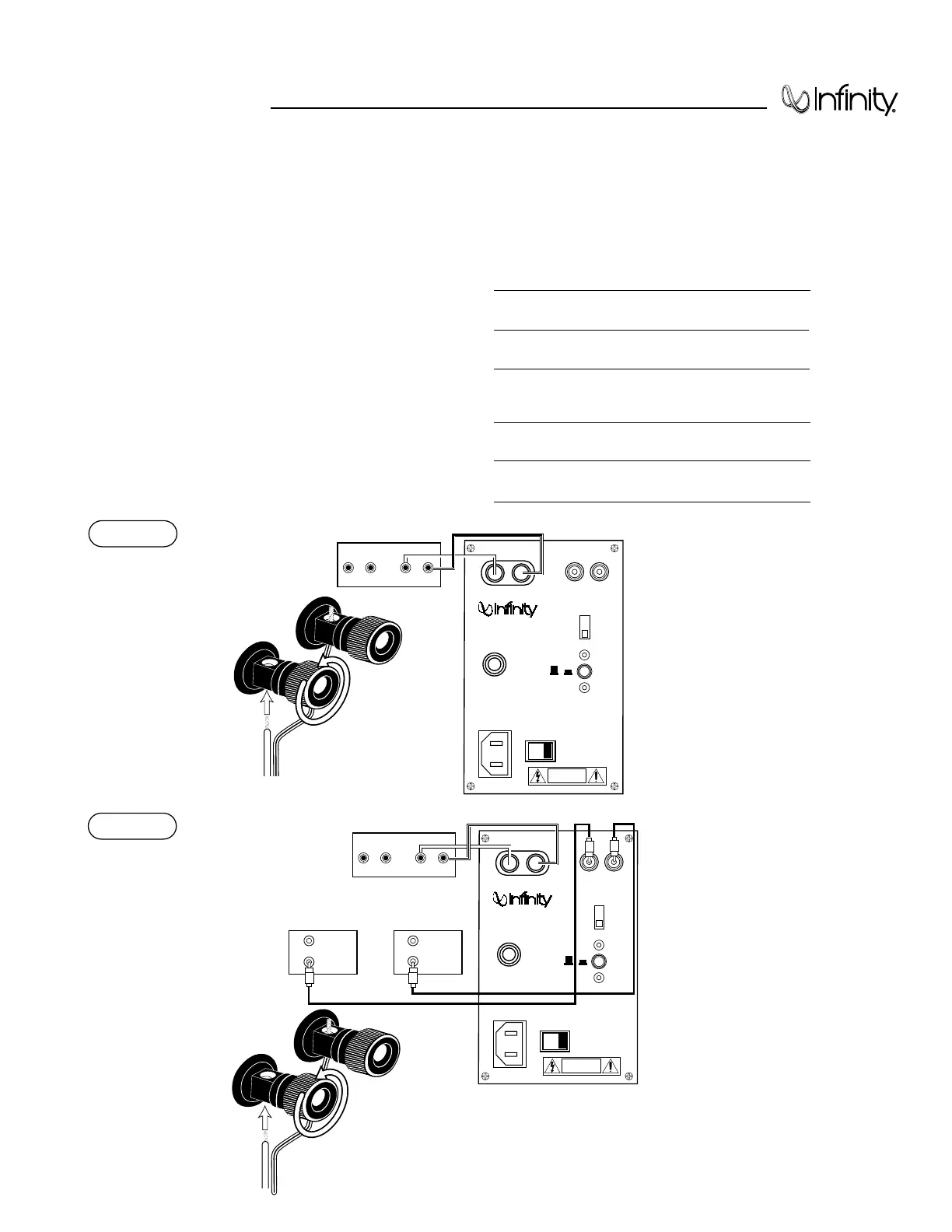

The Infinity Intermezzo 4.1t offers unprecedented
flexibility for connecting the system to any type of
audio or home theater system. Consult the table at
right to determine which system description most
closely matches your own, then follow the hookup
method corresponding to that system.
If none of these system configurations seem to
match yours, consult your dealer or Infinity customer
service for direction on how best to hook up your
system.
For Methods 2, 3a, 3b and 4, make sure all bass-
management features are properly set. The Audio
channels should all be set to “Small” or “High-
Pass” and the subwoofer set to “On.”
120V – 60HZ 6A
INPUTS
POWER
ON
HIGH-PASS
FILTER
BASS
MODE
AC FUSE
6A 250V
OFF
– +
LOW-
LEVEL
INPUT
LOW-
LEVEL
OUTPUT
3
2
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
®
INTERMEZZO 4.1t
AMPLIFIER/RECEIVER
SPEAKER
OUTPUTS
(ONE CHANNEL SHOWN)
––
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
SET BASS MODE

TO POSITION 3
SET HIGH-PASS SWITCH

TO ON
++
1.
2.
3.
4.
BLACK =
–
NO STRIPE = – STRIPE = +
RED = +
120V – 60HZ 6A
INPUTS
POWER
ON
HIGH-PASS
FILTER
BASS
MODE
AC FUSE
6A 250V
OFF
– +
LOW-
LEVEL
INPUT
LOW-
LEVEL
OUTPUT
3
2
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
®
INTERMEZZO 4.1t
PREAMP OUTPUTS
L
R
(ONE CHANNEL SHOWN)
L
R
AMPLIFIER INPUTS
BLACK = –
STRIPE = +
RED = +
NO STRIPE = –
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
SET BASS MODE

TO POSITION 2
SET HIGH-PASS SWITCH

TO OFF
1.
2.
3.
4.
AMPLIFIER/RECEIVER
SPEAKER OUTPUTS
SPEAKER
OUTPUTS
LEFT RIGHT
––
++
2-Channel receiver or integrated amplifier
that has no subwoofer output or
Pre-Out/Main-In connectors 1
2-Channel receiver or integrated amplifier
with preamp output and input connectors 2
2-Channel system with separate preamplifier
and power amplifier 2
Dolby Pro Logic
®
with THX, Dolby Digital,
or DTS
®
receiver with a filtered subwoofer
(or LFE) output connector 3a
Dolby
®
Digital or DTS processor with separate
power amplifiers or multichannel amplifier 3b
Non-THX
®
-certified Dolby Pro Logic receiver
with full-range subwoofer outputs 4
System Type Connection Methods
Method 1
Method 2
