Infinity Intermezzo 4.1t Service Manual

INTERMEZZO 4.1t
9
120V – 60HZ 6A
INPUTS
POWER
ON
HIGH-PASS
FILTER
BASS
MODE
AC FUSE
6A 250V
OFF
– +
LOW-
LEVEL
INPUT
LOW-
LEVEL
OUTPUT
3
2
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
®
INTERMEZZO 4.1t
RECEIVER
SUBWOOFER
OUTPUTS
L
R
SPEAKER
OUTPUTS
RIGHT
(ONE CHANNEL SHOWN)
– +
BLACK = –
NO STRIPE = – STRIPE = +
RED = +
LOOSEN TERMINAL
INSERT BARE
END; TIGHTEN
TERMINAL

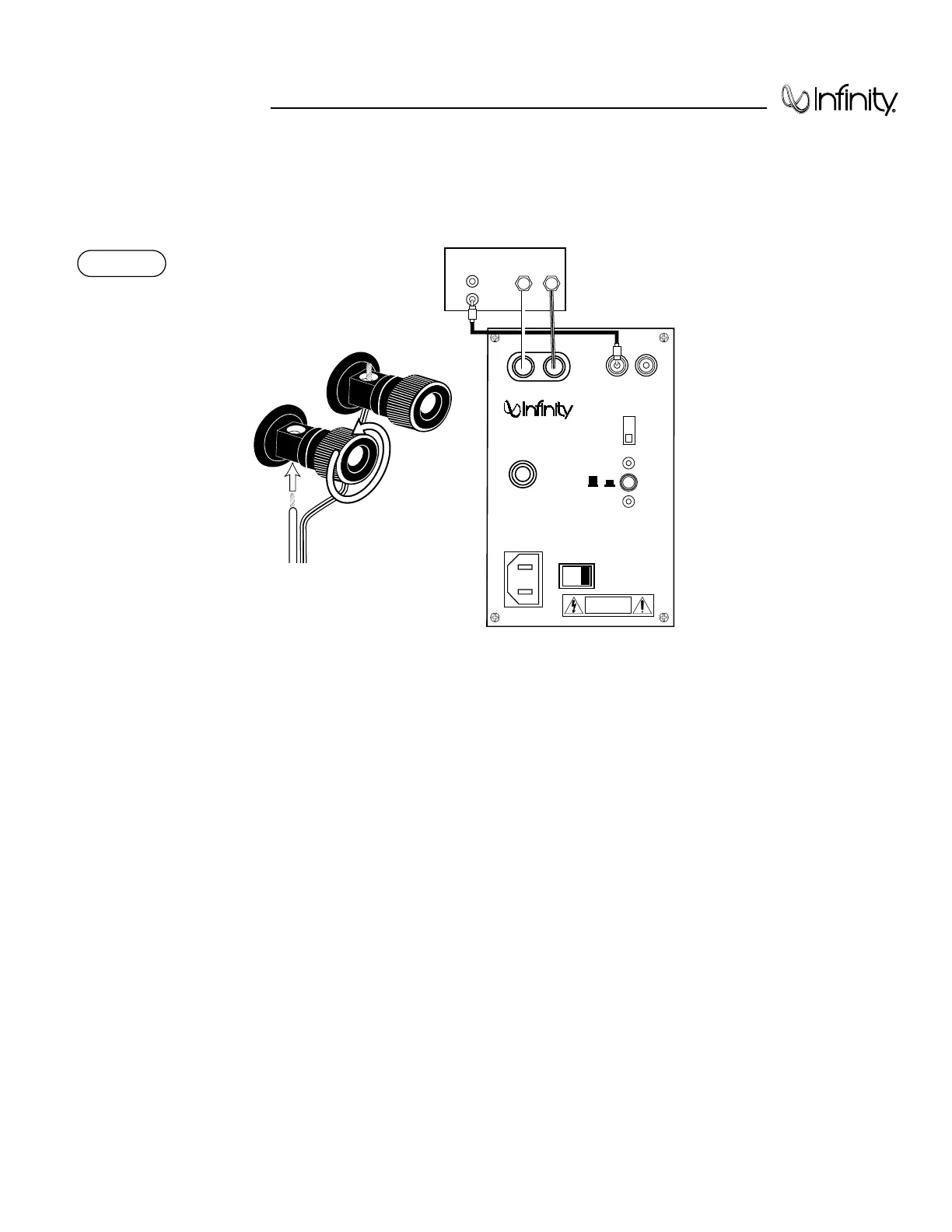

SET BASS MODE

TO POSITION 2
SET HIGH-PASS SWITCH

TO ON
1.
2.
3.
4.
Method 4
Final Positioning
After correctly connecting the Intermezzo 4.1t and
verifying that both the subwoofer and main section
portions are playing, it is time to optimize the
system for your particular listening room.
Earlier, you placed the loudspeakers in their
general location. Finding the exact location for
optimum performance sometimes only involves
moving the speakers up to a few inches in any
direction. We urge you, therefore, to experiment
with placement until your speakers deliver their full
potential. When the speakers are moved inward
(toward each other) there is generally better focus
of instruments and vocalists; however, moving the
speakers too close together can reduce the
spaciousness of the stage effect and you may
need to experiment with the trade-off between
focus and imaging. If your listening room is larger
than average and your listening position is
relatively far from the speakers, wider placement of
the speakers may be required.
