If there is no picture or the picture is blank
If the power light is off,
make sure the power cord is connected and plugged
into a live electrical outlet. If the power light is amber and not blinking, touch the
power light (or press power on the remote).
Check video source and cables.
Make sure the video source (computer, DVD
player, VCR, etc.) is turned on and cables are securely connected between the
source and the projector.
If your computer is connected using DisplayLink
(not VGA), please see the
DisplayLink Manager User's Guide for more troubleshooting information.
Make sure your computer's video port is enabled.
Press the key combination
that activates your laptop's external video port (see step
4
). If there is still no
image, restart your laptop.
Press the Source button.
You may need to press it several times to view the
correct source.
Press the Auto Image button.
If "Signal out of range" is shown, or the picture looks bad
Press the Auto Image button. If that doesn't help (and the source is a computer),
reduce your computer's display resolution or vertical refresh rate.
If the replace lamp light is on
Turn the projector off and wait at least one minute, then turn it on again. If the
replace lamp light turns on again, the lamp needs to be replaced.
For lamp
replacement instructions,
see the Reference Guide, which can be downloaded at
www.infocus.com/support
Only InFocus genuine lamps are tested for use in this projector.
If the high temperature light is on
Turn the projector off and remove anything that may be blocking the air vents
on its side.
Leave the projector off for at least one minute to let it cool before
turning it on again.
Important:
Continuous operation at high temperature may
reduce the lifetime of the lamp and/or projector.
If the service required light is on
Turn the projector off and wait at least one minute, then turn it on again.
If
the service required light turns on again, the projector needs to be serviced. See
below for service contact information.
Note:
Most picture settings are disabled (gray) unless a source is being displayed.

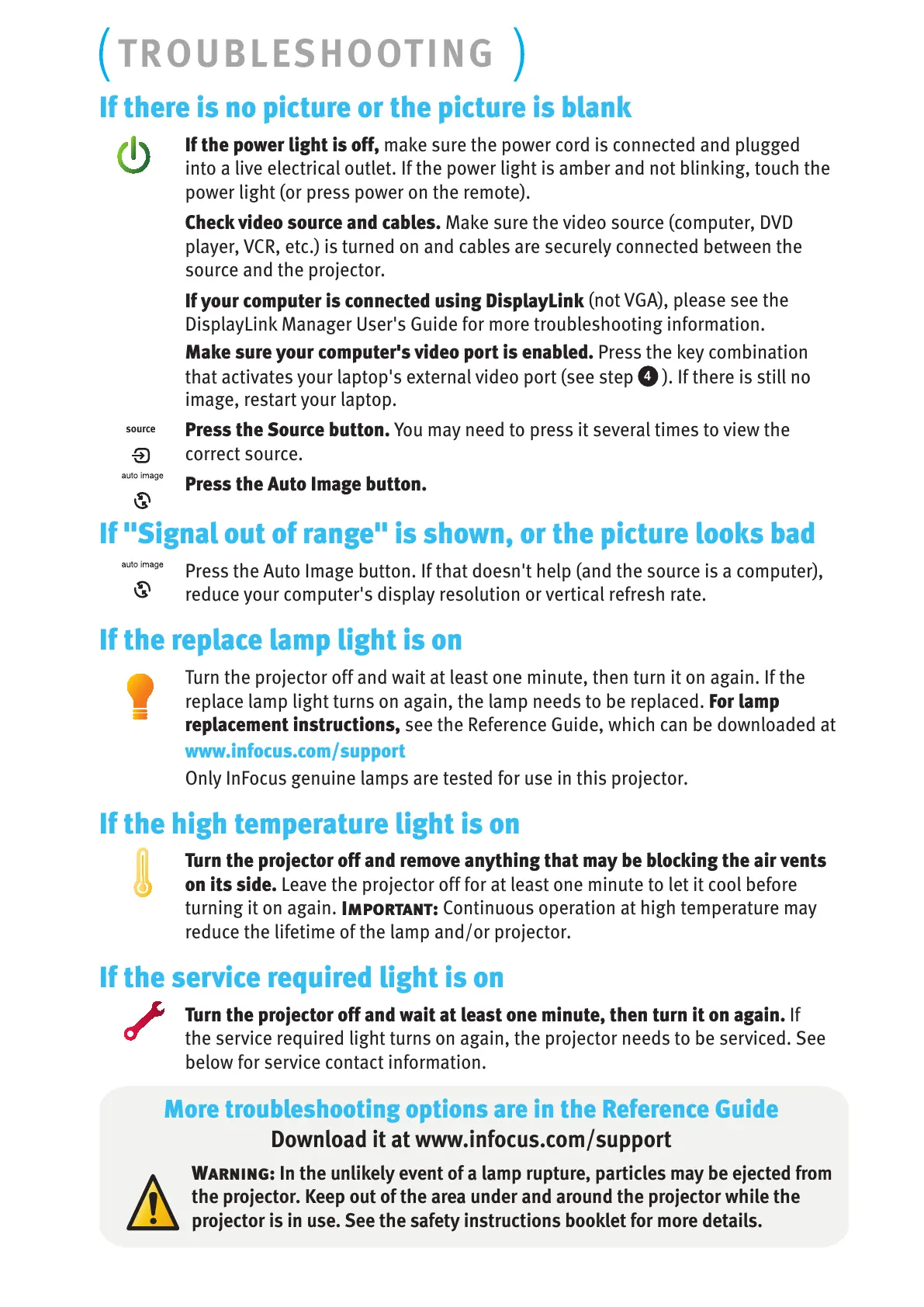

TROUBLESHOOTING
Warning:
In the unlikely event of a lamp rupture, particles may be ejected from
the projector. Keep out of the area under and around the projector while the
projector is in use. See the safety instructions booklet for more details.
More troubleshooting options are in the Reference Guide
Download it at www.infocus.com/support
All manuals and user guides at all-guides.com

Other manuals for InFocus IN1503

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the InFocus IN1503 and is the answer not in the manual?

InFocus IN1503 Specifications

General IconGeneral
Matrix size0.65 \
Native aspect ratio16:10
Projection distance0.76/3.51 m
Projection technologyDLP
Supported aspect ratios4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)1800:1
Screen size compatibility- \
Projector native resolutionWXGA (1280x800)
Keystone correction, vertical-30/30 °
RS-232 ports0
FocusManual
Offset105 %
Throw ratio0.72 - 0.86:1
Focal length range- mm
Lamp power165 W
Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
RMS rated power1 W
Number of built-in speakers1
Audio (L/R) in-
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level29 dB
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)170 W
Full HDNo
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format systemNTSC, PAL, SECAM
Product colorBlack
Weight and Dimensions IconWeight and Dimensions
Depth222 mm
Width235 mm
Height83.8 mm
Weight2000 g
Package weight4300 g
