InFocus IN1503 Quick Start Guide

Audio Out
L R
Video Out
HDMI Out
3

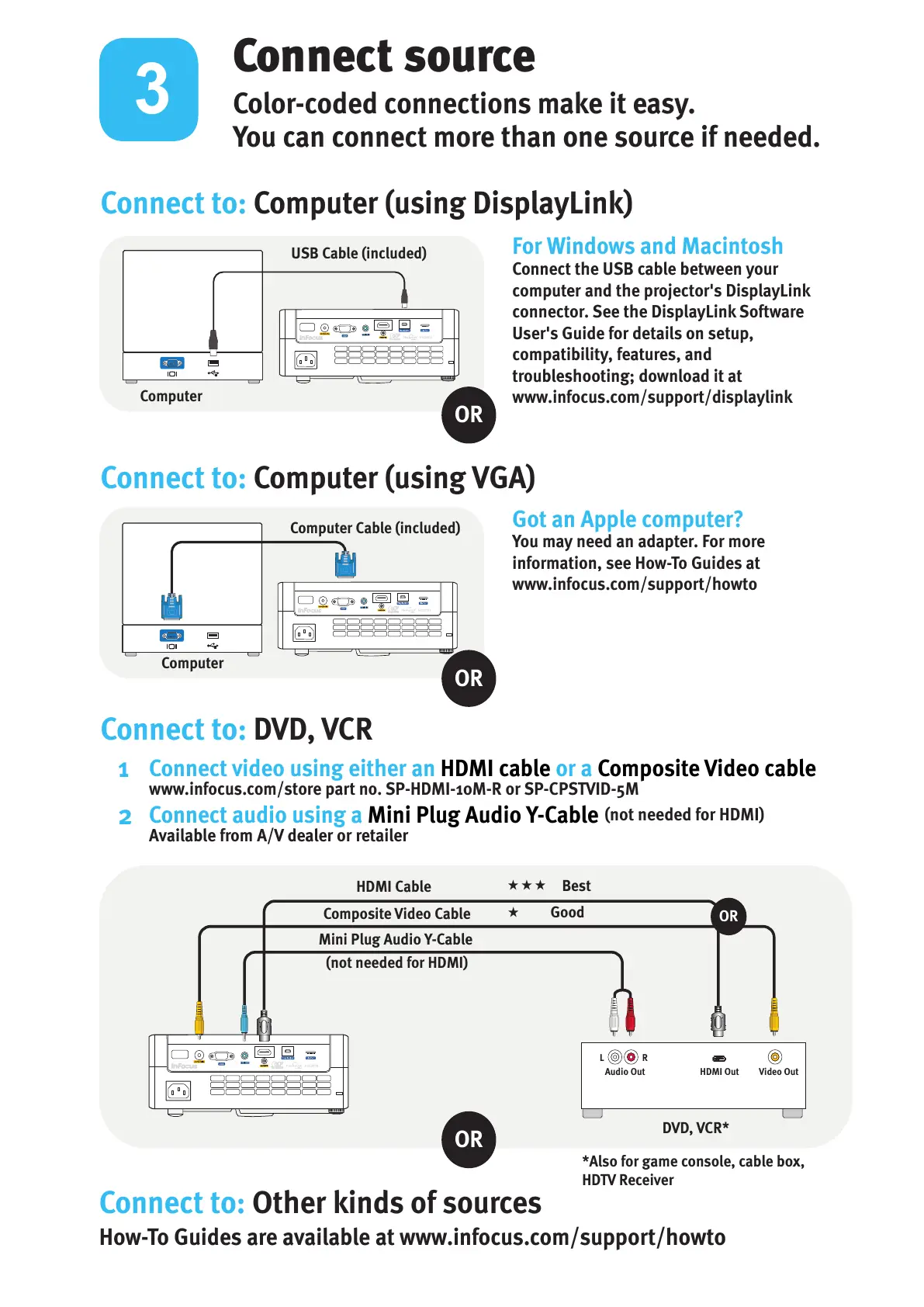

Connect source
Color-coded connections make it easy.
You can connect more than one source if needed.
Got an Apple computer?
You may need an adapter. For more
information, see How-To Guides at
www.infocus.com/support/howto
Connect to: Computer (using DisplayLink)
Connect to: DVD, VCR
Connect to: Other kinds of sources
How-To Guides are available at www.infocus.com/support/howto
OR
Computer
USB Cable (included)
OR
DVD, VCR*
*Also for game console, cable box,
HDTV Receiver

Good
Mini Plug Audio Y-Cable
HDMI Cable

Best
Computer
Computer Cable (included)
Connect to: Computer (using VGA)
OR
For Windows and Macintosh
Connect the USB cable between your
computer and the projector's DisplayLink
connector. See the DisplayLink Software
User's Guide for details on setup,
compatibility, features, and
troubleshooting; download it at
www.infocus.com/support/displaylink
OR
Composite Video Cable
(not needed for HDMI)
1
Connect video using either an HDMI cable or a Composite Video cable
www.infocus.com/store part no. SP-HDMI-10M-R or SP-CPSTVID-5M
2
Connect audio using a Mini Plug Audio Y-Cable
(not needed for HDMI)
Available from A/V dealer or retailer
