InFocus in2124 User Manual

6
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. IN2124
m
ust be at least 45.3” (1.2m) from the projection screen, and IN2126 must be
at least 55.4” (1.4m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InF
ocus approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit
(p/n PRJ-MNT-UNIV) for more information. The warranty does not cover any
damage caused by use of non-approved ceiling mount kits or by installing in an
improper location. To turn the image upside down, see “Ceiling mount” on
page 27. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
fr
om the lens of the projector to the screen and the video format determine
the size of the projected image.

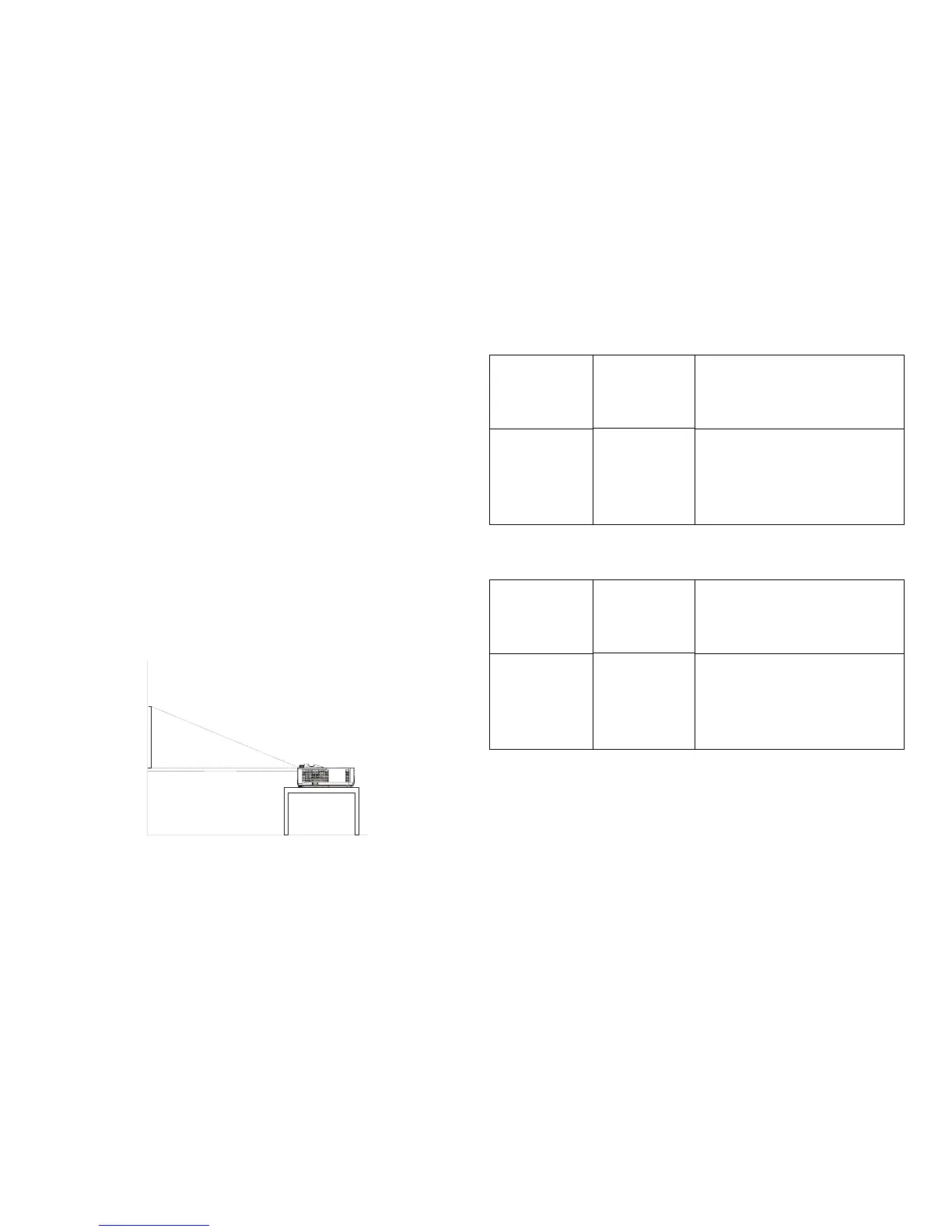

• The image offset is 115% +/-5%. This
means that if you have an image 60
inches (1.5 meters) tall from a table-mounted projector, the bottom of the
image will be 9 inches (22.9 cm) above the centerline of the lens.
60 inches
high image
bottom of image 9
inches above center
of lens
Projection angle
lens center
Table 1: IN2124 (XGA) Screen size
Diagonal
Screen Size
(inches/m)
Size of the
Pr
ojected
Image Width
(inches/m)
Distance to screen
Minimum
di
stance
(inches/m)
Maximum
distance
(inches/m)
30”/0.8m 24”/0.6m 45.3”/1.2m 50.6”/1.3m
60”/1.5m 48”/1.2m 92.2”/2.3m 102.9”/2.6m
80”/2.0m 64”/1.6m 123.5”/3.1m 137.7”/3.5m
100”/2.5m 80”/2.0m 154.8”/3.9m 172.5”/4.4m
150”/3.8m 120”/3.0m 233.0”/5.9m 259.6”/6.6m
Table 2: IN2126 (WXGA) Screen size
Diagonal
Screen Size
(inches/m)
Size of the
Pr
ojected
Image Width
(inches/m)
Distance to screen
Minimum
di
stance
(inches/m)
Maximum
distance
(inches/m)
45”/1.1m 38”/1.0m 55.4”/1.4m 69.3”/1.8m
60”/1.5m 51”/1.3m 74.5”/1.9m 92.9”/2.4m
80”/2.0m 68”/1.7m 100.0”/2.5m 124.4”/3.2m
100”/2.5m 85”/2.2m 125.5”/3.2m 155.8”/4.0m
150”/3.8m 128”/3.2m 189.2”/4.8m 234.6”/6.0m
