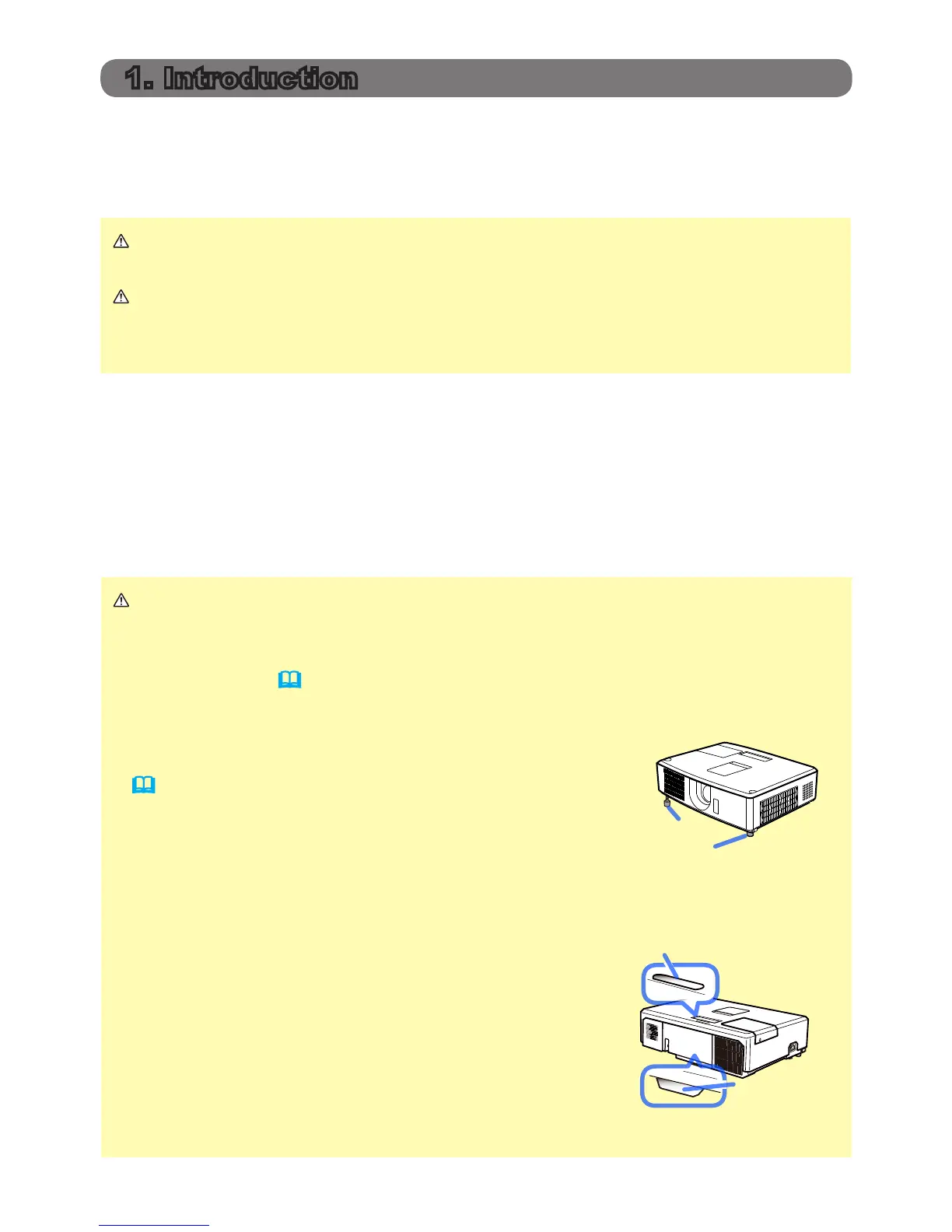

1.1 Entries and graphical symbols explanation
The following entries and graphical symbols are used for this manual and the
product as follows, for safety purposes. Please review and heed this information.
1.2 Important safety instructions
Following are important safety instructions for using this product in an Instant
Stack application. Read this information carefully and always follow these guide-
lines when using this product in an Instant Stack application.
(continued on next page)
WARNING This entry warns of a risk of serious personal injury or even
death.
CAUTION This entry warns of a risk of personal injury or physical
damage.
NOTICE
This entry indicates fear of causing trouble.
WARNING
► Do not allow the stacked projectors to fall.
• When stacking two projectors, make sure the elevator feet and heel of the
upper projector are inserted securely into the corresponding pockets of the
lower projector. (

11 )
• When using two projectors in an Instant Stack application, you can change
the projection angle of the stacked projectors by
adjusting the elevator feet of the lower projector.
(

8 ) Prevent the stacked projectors from falling
off or tipping over when adjusting the elevator feet.
• A maximum of two projectors can be stacked. Do
not stack three or more projectors.
• Stacked projectors (which are using the stack
pockets, elevator feet and heel of the lower
projector) should never be installed in a place
higher than the person's height.
• Do not install stacked projectors (which are using
the stack pockets, elevator feet and heel of the
lower projector) in a ceiling mount application.
• Do not touch the stacked projectors unless
otherwise instructed by this manual. Do not hit the
projectors with any type of object.
Stack pocket
Elevator feet
Heel
Lens
adjuster
door
Stack
pocket
1. Introduction
Instant Stack feature

InFocus IN5122 Specifications

General

Matrix size	0.63 \
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	35.4 - 358 \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Focus	Manual
Throw ratio	1.5 - 2.5:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	-20 - 0 °
Horizontal lens shift range	-20 - 20 %
Lamp type	UHP
Lamp power	245 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
3D	-
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1600 x 1200 (UXGA)
RMS rated power	16 W
Number of built-in speakers	2
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Cables included	AC, RCA, VGA
Power consumption (standby)	- W
Noise level	32 dB
Certification	UL, c-UL, FCC, CE
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Operating altitude	0 - 2286 m
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	318.5 mm
Width	401 mm
Height	111 mm
Weight	4800 g
Package depth	420 mm
Package width	560 mm
Package height	197 mm
Package weight	8200 g
