Views of Projector Parts

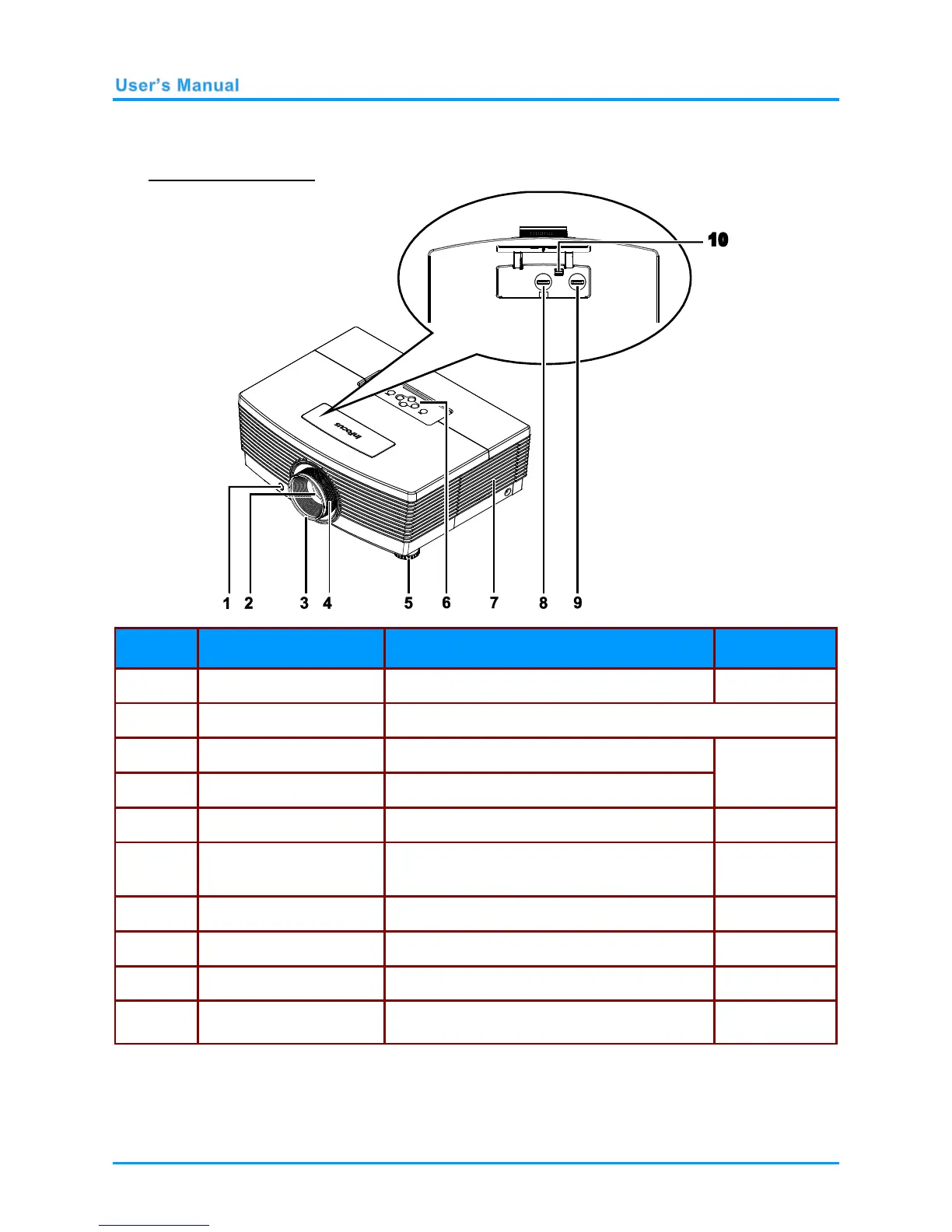

Front-angled View
ITEM
LABEL
DESCRIPTION
SEE PAGE:
1.
IR receiver
Receives the IR signals from the remote control.
7
2.
Lens
Projection Lens.
3.
Focus ring
Focuses the projected image.
17
4.
Zoom ring
Enlarges the projected image.
5.
Elevator foot
Adjusts level of projector.
14
6.
Function keys
See Top viewOn-screen Display (OSD)
buttons.
3
7.
Lamp cover
Remove cover to replace lamp.
41
8.
Vertical lens shift
Adjusts the image position vertically.
15
9.
Horizontal lens shift
Adjusts the image position horizontally.
16
10.
Lens release button
Press the release button before attempting to
replace the lens.
10
