15
USING THE PROJECTOR
This section describes how to use and make adjustments to the
projector. It also provides a reference to the keypad and remote
buttons and the options available from the on-screen menus.
Basic Image Adjustment
1
Make sure you have powered up your equipment in the right
order (page 13).
2
If the image doesn’t display completely, zoom the image
(page 15), adjust the height of the projector (page 15) or center
the image by adjusting its horizontal or vertical position
(page 29). Be sure the projector is at a 90 degree angle to the
screen.
3
If the image is out of focus, rotate the focus lens (page 15).
4
If the image appears to shimmer or if it has blurry vertical
bars after you have adjusted the focus, turn Auto Image
(page 27) off and then back on to reset the automatic sync and
tracking. If that doesn’t clear up the image, turn Auto Image
off and adjust the sync (page 28) and/or the tracking
(page 28) manually.
5
If the colors don’t look right, adjust the brightness (page 23).
Adjusting the Projector
To focus the image, rotate the focus ring (Figure 11) until the
image is clear. To zoom the image, rotate the zoom ring. This
adjusts the image size without affecting focus.

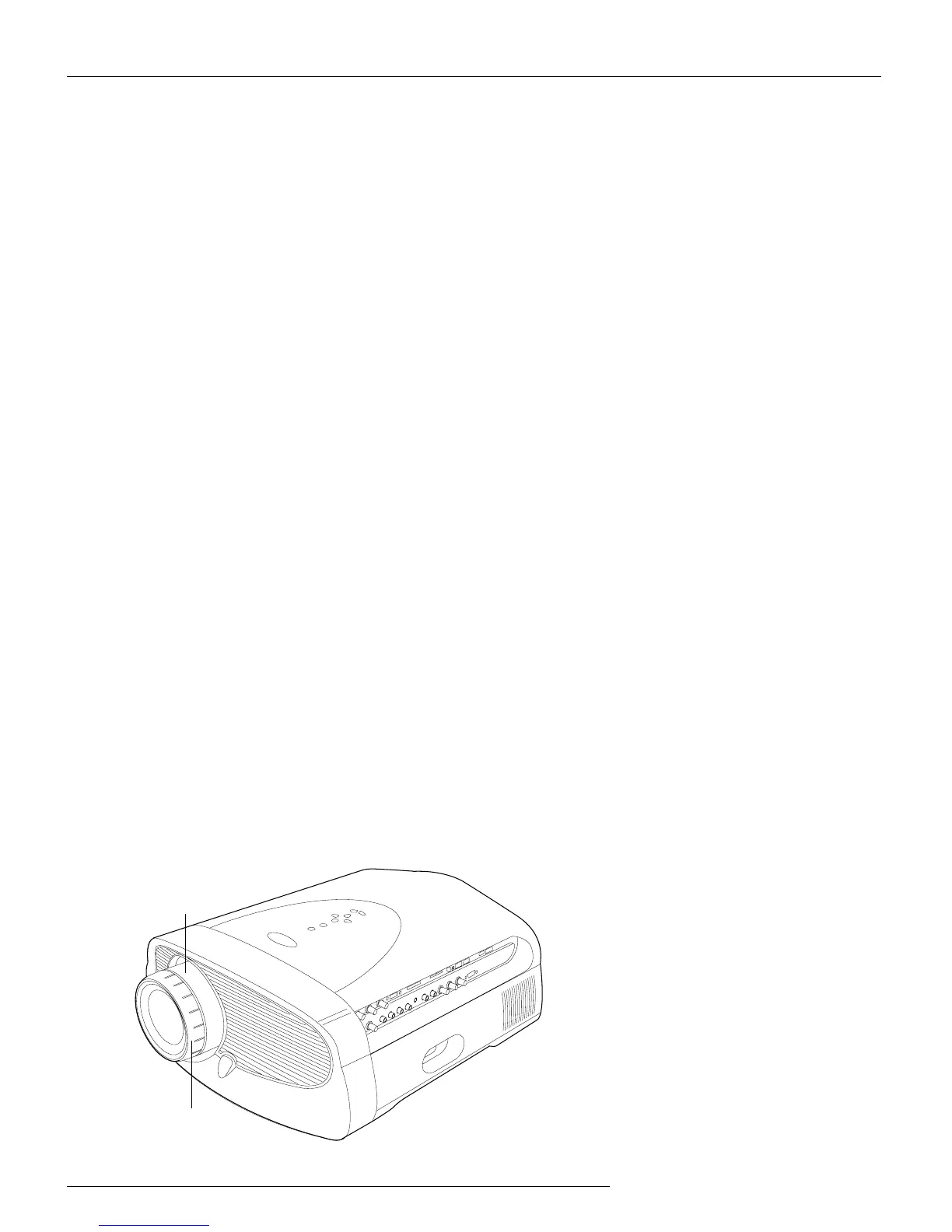

FIGURE 11
Focus ring and zoom ring
focus ring
zoom ring
