16
Video device connections
Composite (RCA) video connection
Plug the provided composite A/V cable’s yellow connector into the video-
out connector on the video device. Plug the other yellow connector into the
yellow Video connector on the projector.
Plug a white connector into the left audio out connector on the video device
and plug a red connector into the right audio out connector on the video
device. Plug the remaining white connector into the white audio in connec-
tor on the projector, and plug the remaining red connector into the red
audio in connector on the projector.
Keep in mind that video output from composite connections are not as high
quality as S-video or component video.
S-video connection
If your video device uses a round, seven-prong S-video connector, plug the
S-video cable into the S-video connector on your video device and into the
S-video connector on the projector. Use the A/V cable’s red and white
audio connectors as described directly above (the yellow connectors on the
A/V cable are not used).
Keep in mind that S-video delivers higher quality video output than com-
posite, but not as high as component video.

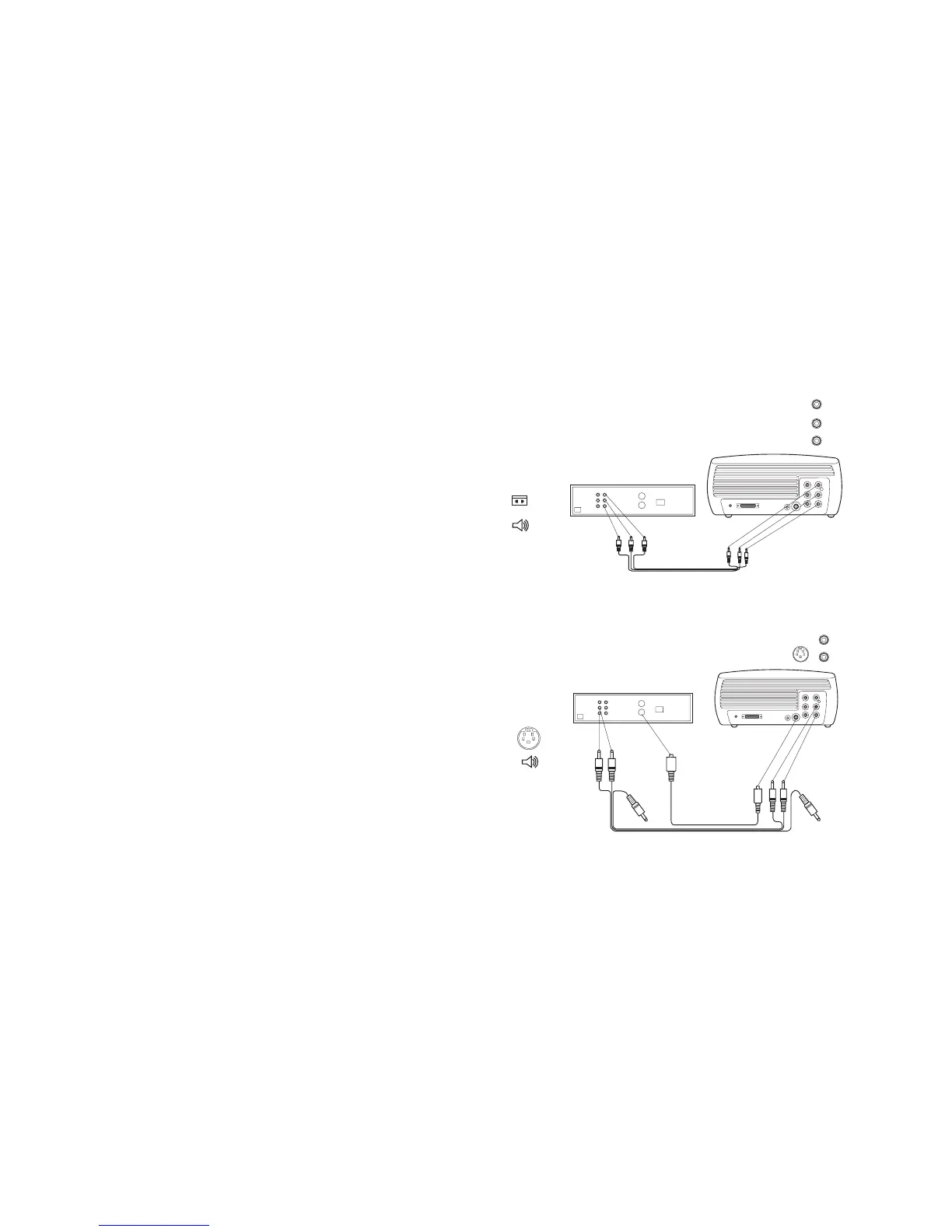

connect A/V cable
connect S-video
and composite
audio cables
