17
Component (RCA) connection
To connect a progressive scan DVD or HD source, use the component con-
nector. Connect a component video cable with red, green, and blue RCA
connectors (available at Consumer Electronic stores) into the source device’s
component connector. Connect the other three ends of the component cable
into the Component connector on the projector.
Use the composite A/V cable’s red and white audio connectors as described
on the previous page (the yellow connectors on the A/V cable are not used).
Keep in mind that component video delivers higher quality video output
than s-video or composite video.
DVI connection
If your video device uses a DVI connector, plug the DVI end of the M1-D
cable (sold separately) into the video-out connector on the video device.
This connector may be labeled “To Monitor” on the video source. Plug the
M1 computer end of the cable into the M1-DA connector on the projector.
Use the composite A/V cable’s red and white audio connectors as described
on the previous page (the yellow connectors on the A/V cable are not used).
Keep in mind that DVI video delivers the highest quality video output.
Connect the power cord to the Power connector on the side of the projector
and to your electrical outlet.
NOTE: Always use the power cord that shipped with the projector.

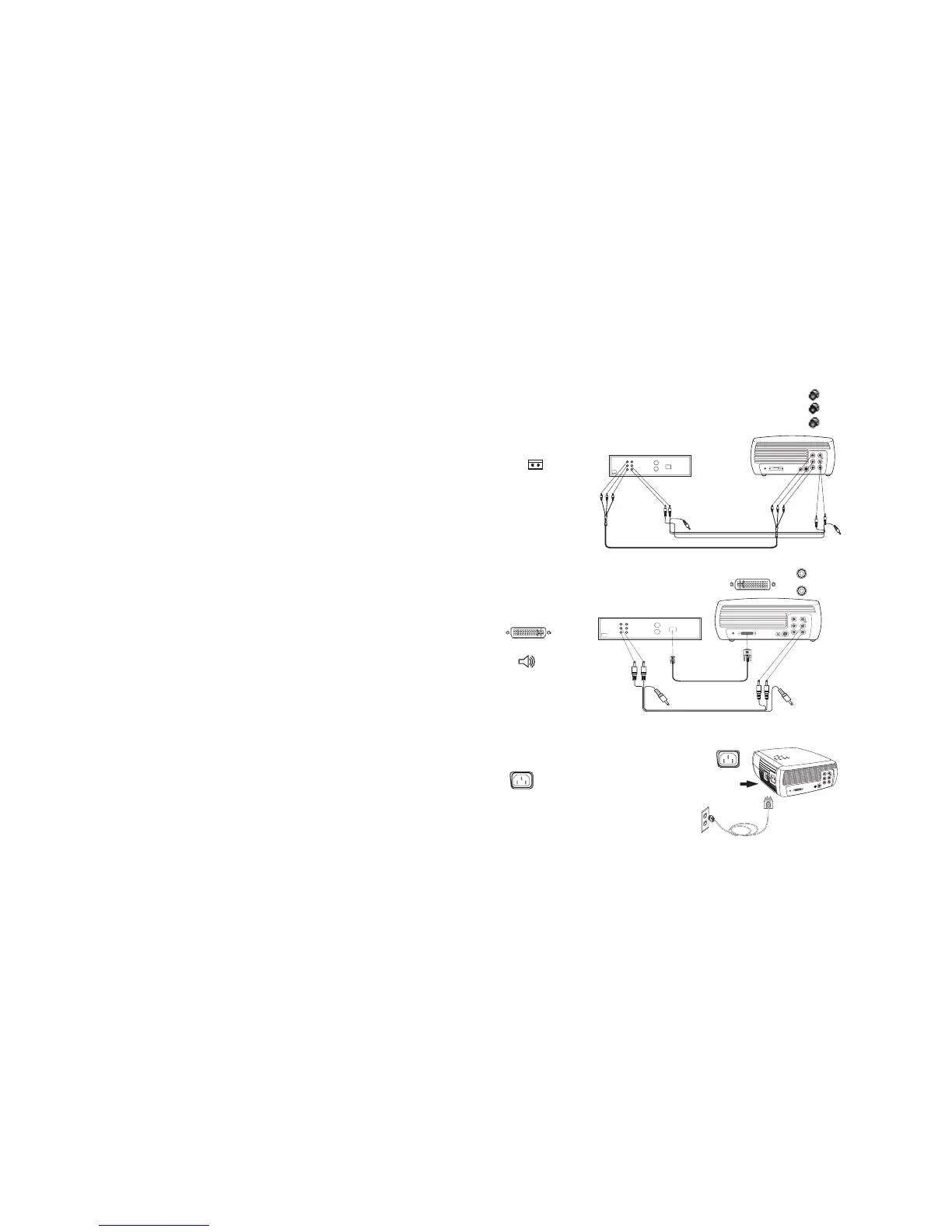

connect component
composite audio cables
connect DVI and
composite audio cables
connect power cable
