1 Height
2 Keystone
3 Zoom and focus
1 Hold down the release button
under the front of the projector.
2 Lift the front of the projector to
the desired height.
3 Release the button.
Press the keystone buttons to
make the picture square.
Adjust zoom first, then focus the
center of the image.
To flip the image, turn on the Ceiling
Mount setting in the Setup menu.
Ceiling mount?

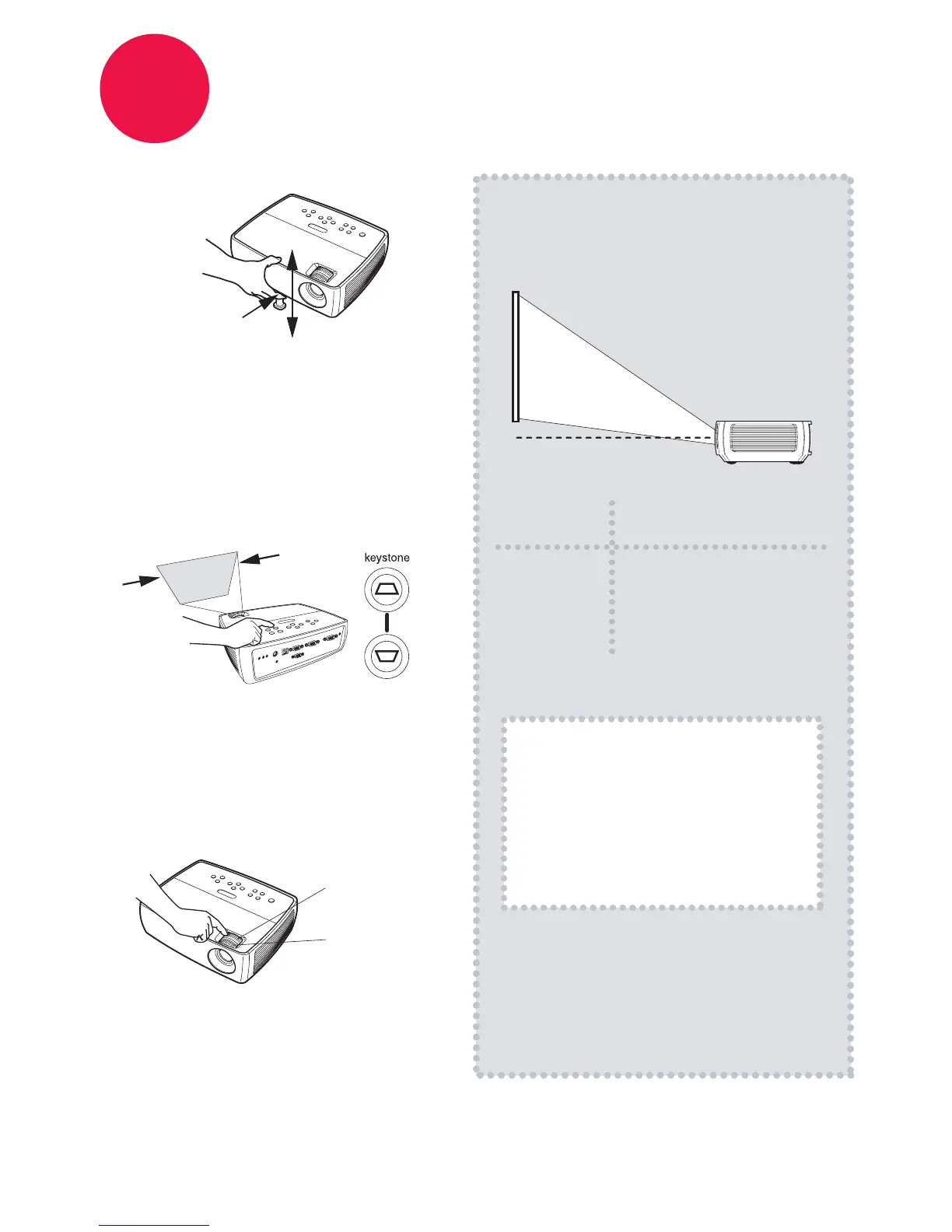

Adjust the picture
Projector Location
As distance increases, the
image gets larger and
moves upwards.
Diagonal
Screen Size
Distance to Screen
Minimum Maximum
60" / 1.5m
80" / 2m
92" / 2.3m
150" / 3.8m
7'6" / 2.3m
10'2" / 3.1m
11'10" / 3.6m
19'4" / 5.9m
8'6" / 2.6m
11'6" / 3.5m
13'1" / 4.0m
21'8" / 6.6m
Lens center line
Zoom
(rear)
focus
(front)
1
2
Interactive Screen Size and
Distance Calculator
www.infocus.com/calculator
