* It shows Utility input is “0” and Utility Abnormal.
I
3.13.3 Check Measured Values & Figures detected by UPS
3.13.3.1 If you would like to check the measured values & figures detected by the
UPS, please use scroll up and scroll down key pads. When you use
scroll down key pad, the LCD display will illustrate as Drawing C(Voltage from
Utility Input) →Drawing I1(Voltage from Bypass Input) → Drawing J(Frequency
from Utility Input) →Drawing K(Frequency from Bypass Input) →Drawing
L(UPS Output Voltage) →Drawing M(UPS Output Frequency) →Drawing
N(UPS Output Load %)→Drawing O(UPS Battery Voltage) →Drawing P(UPS
Inner Temperature).
I1

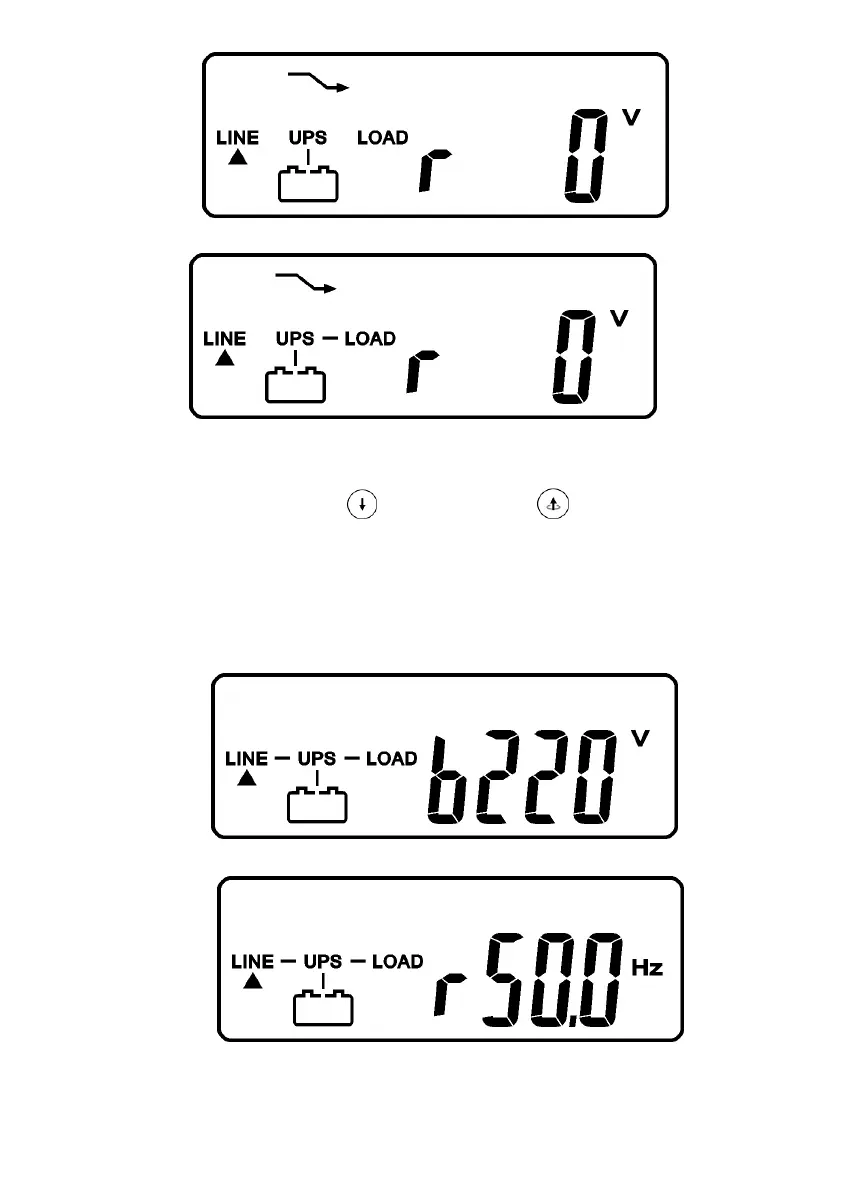

* It shows voltage comes from Bypass Input
J
* It shows frequency from Utility Input.
