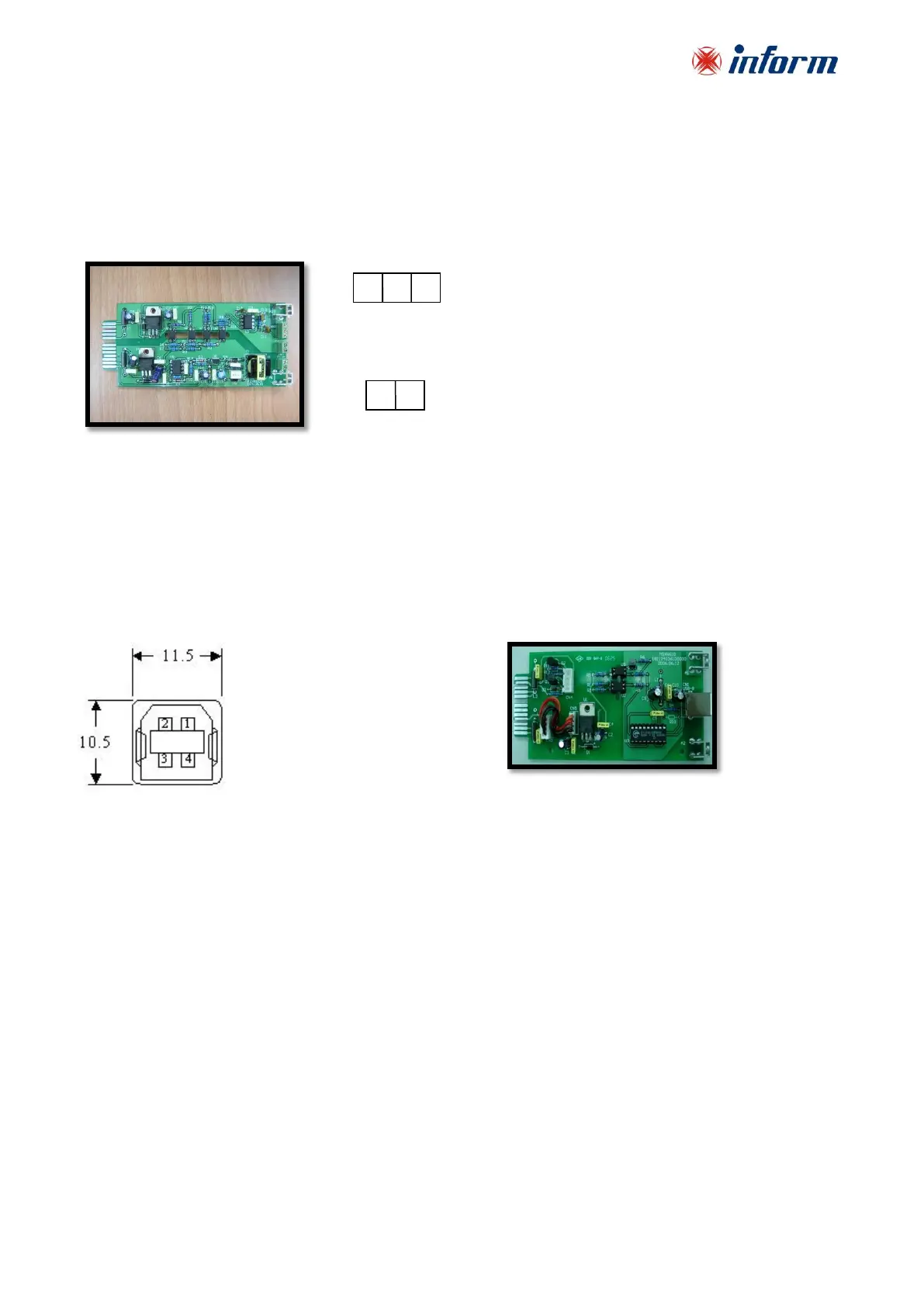

4.2.5.7. RSE (RS485) Card
It is installed into INTERFACE slot on the rear panel.
CN1 is for the function of the terminal resistor. Short pin1-2 to enable the function and short pin2-
3 to disable it.
CN2 for RS485 and CN3 for remote power.
4.2.5.8. USE (USB) Card
It is installed into INTERFACE slot on the rear panel.
 CN1 for USB.
 Comply with USB version 1.0,1.5Mbps
 Comply with USB HID Version 1.0.
The Pin Assignments of the USE card:
1  VCC (+5V)
2  D－
3  D＋
4  Ground
1
2
CN
3
1
2
3
CN
2
1  Ground
2  A/Data+
3  B/Data-
1  AC+
2  AC-
