30

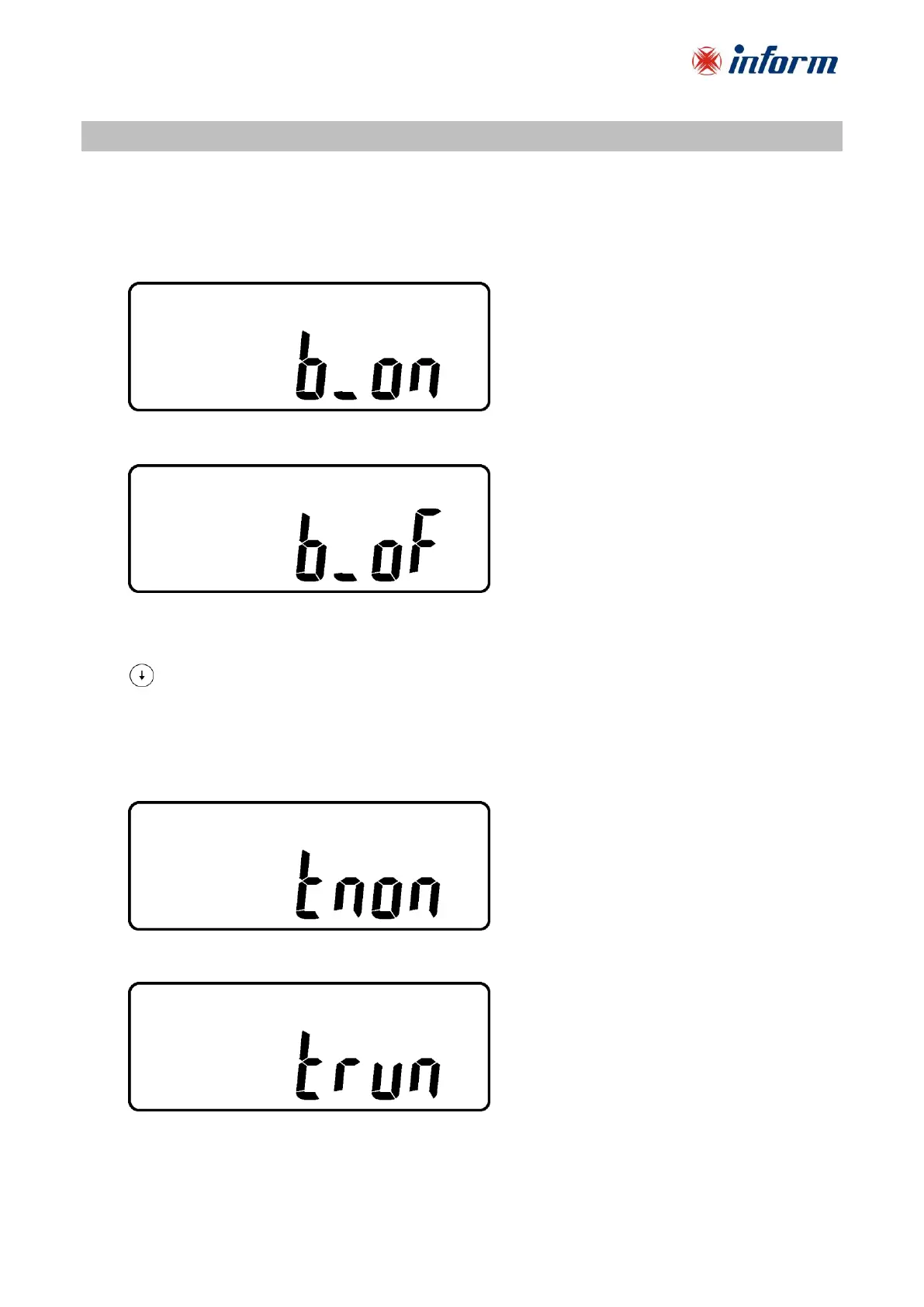

7. OPERATING PROCEDURES
7.1. UPS Default Data and Special Function Execution
After UPS completely starts up, press FUNCTION (10) key pad to change the LCD display screen to
drawing Q1.
Q1
* It shows buzzer is On.
Q2
* It shows buzzer is Off.
Press key pad to scroll down the screen and check the UPS settings. The LCD display will show in
consequence between Drawing Q1(buzzer) Drawing R1(Self-test) Drawing S1(Bypass Voltage
Windows) Drawing T(Output Frequency Synchronization Window) Drawing U(Inverter Output
Voltage) Drawing V1(UPS Operation Mode) Drawing W(Output Voltage Micro Tune Value)
Drawing X(UPS Id) Drawing Y(Parallel function status).
R1
* It shows self-test is NOT “on”.
R2
* It shows self-test is “on”.
