6. FRONT PANEL & REAR PANEL
The front panel located at the front side of the UPS, informs the user about operating status, alarm
conditions and measurements. It also provides access to control and configuration parameters.
The cable connections, the circuit breakers and the communication slots are located at the Rear
Panel.
6.1. Front Panel Segments

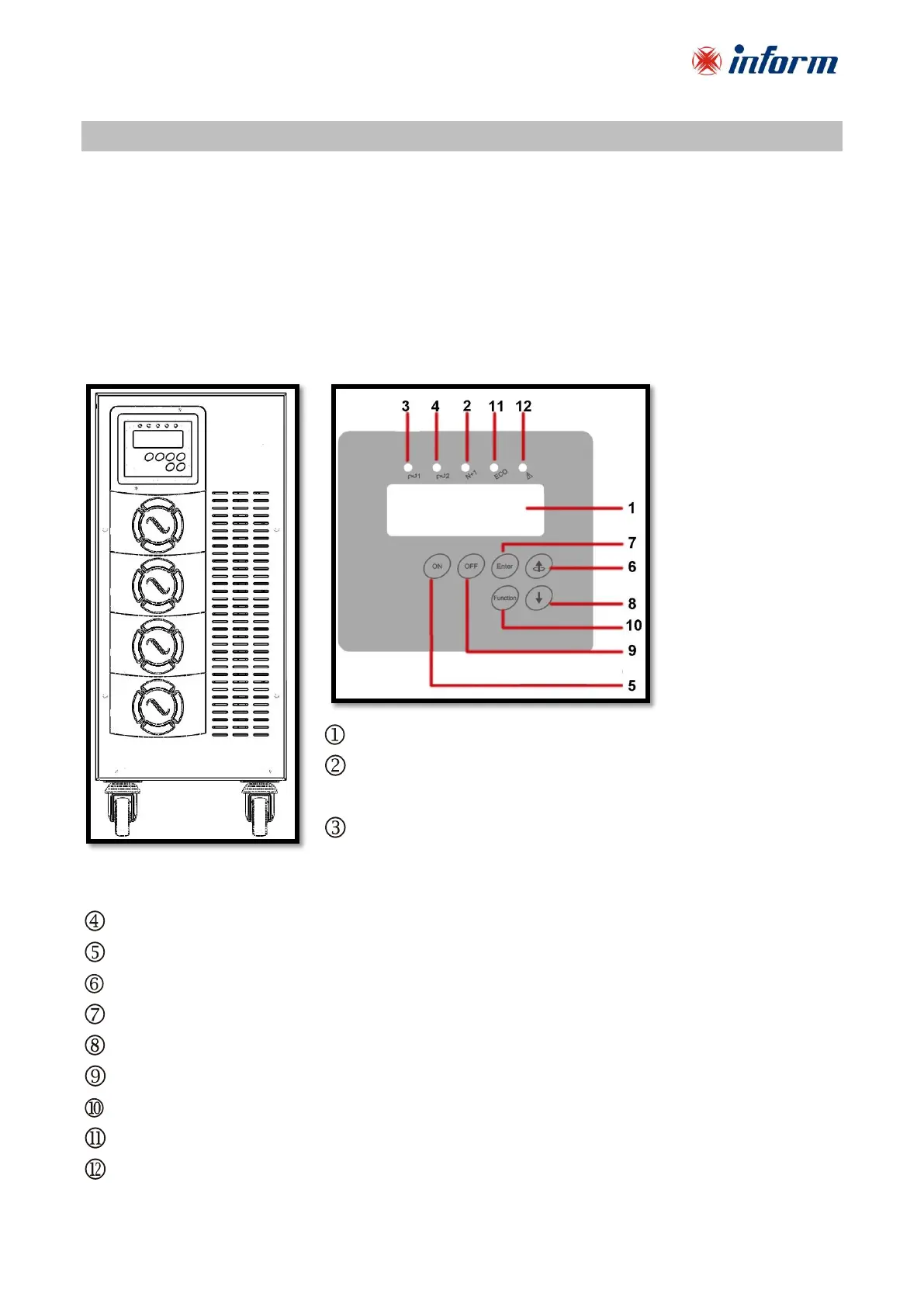

Front panel shown below consists of two segments. LCD (Liquid Crystal Display) offers detailed
information about UPS and KEYPAD enables the user to access the UPS.
6.1.1. Keypad
LCD Display
Green LED lights up to indicate the UPS has the capability to run
under redundancy mode.
Green LED steadily lights up to indicate that the utility input
voltage is within the window; the LED flashes flickeringly to indicate
that the utility input voltage is within the acceptable window
Green LED lights up to indicate Bypass Input is normal.
UPS ON/Alarm Silence
Go to Previous page or change the setting of the UPS
To reconfirm the change of UPS Setting
Go to next page
UPS OFF Switch
Special Functions log in/out
UPS is working under ECO ( Economic ) Mode
UPS fault or Abnormal
To Next Page
