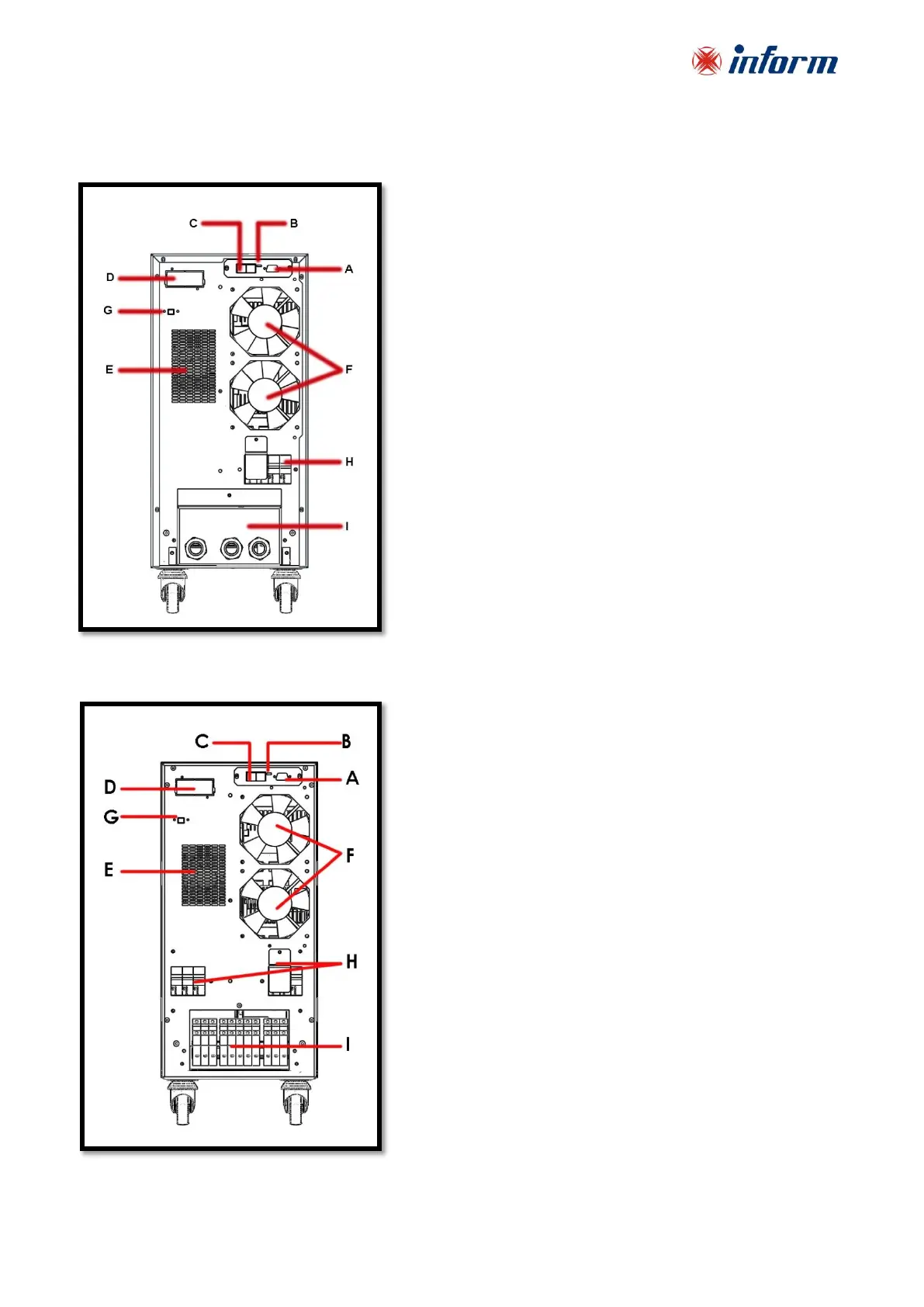

6.2. Rear Panel
1Phase Input / 1Phase Output DSP Flexi Power
A: RS-232 Port (CN1)
B: Terminal Resistor for Parallel function
C: CAN Bus Connection Port for Parallel System
(PAR1/CN2.1 ā PAR2/CN2.2)
D: Communication Slot
E: Air Ventilation Hole
F: Cooling Fan
G: EPO
H: Input-Output-Manual Bypass Circuit Breakers
I: Terminal Cover & Terminals
3Phase Input / 1Phase Output DSP Flexi Power
