37

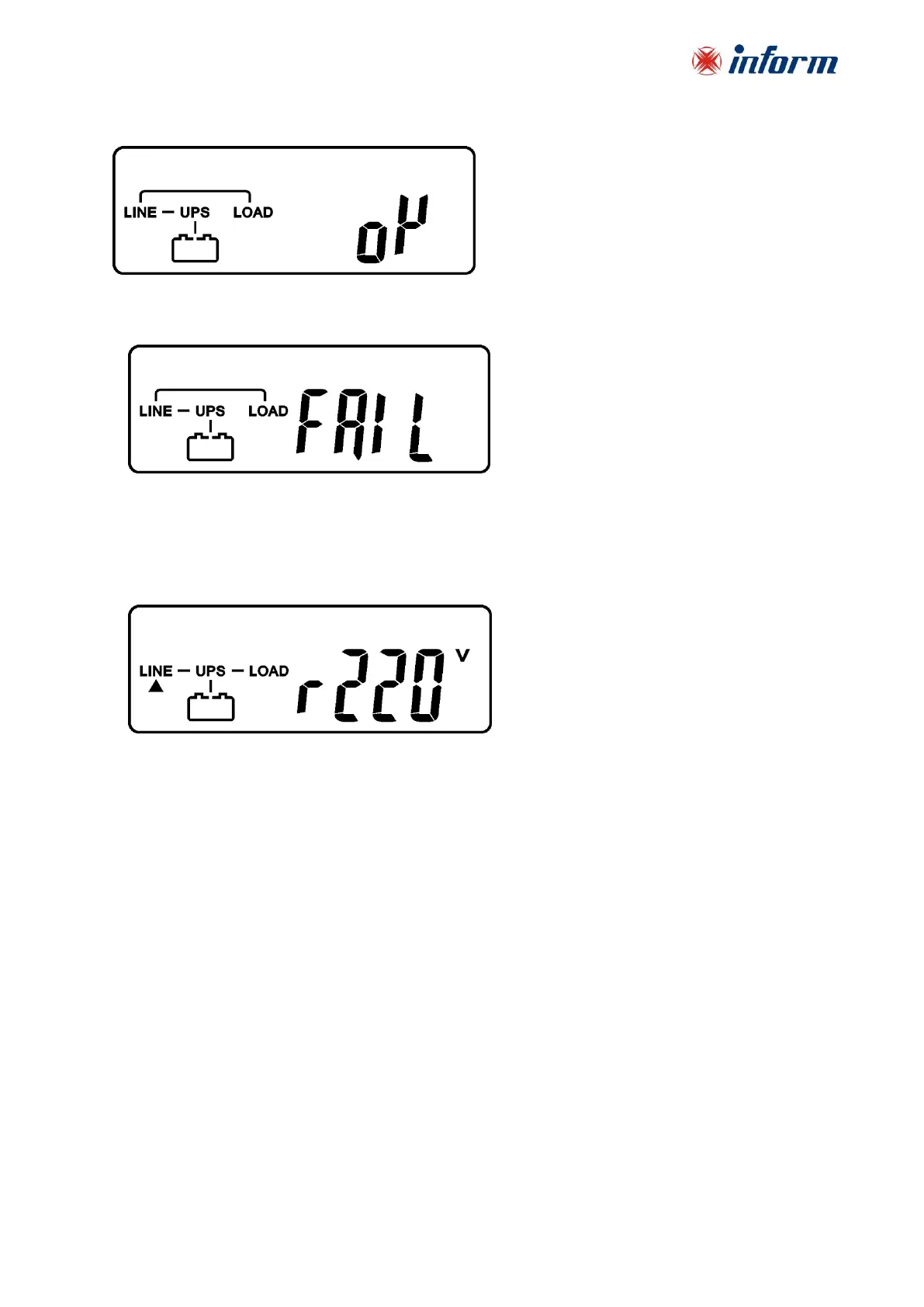

E1
* It shows “OK” in self-test
E2
* It shows “Fail” in self-test
In case of failure in self-test, the LCD display will illustrate from Drawing D to drawing E2, then an
error code or error status will be shown on the screen.
F
* It shows “220Vac” in Utility Input.
Your start-up operation of the UPS is completely now. Make sure the UPS is plugged onto the wall
receptacle for charging at least 8 hours and the batteries of the UPS are fully charged.
5. Switch the output circuit breaker (F2) to “ON” position.
6. Switch the output circuit breaker on the distribution panel to “ON” position.
Afterwards UPS starts to supply the loads.
