3.5.3 Check Measured Values & Figures detected by UPS
If you would like to check the measured values & figures detected by the UPS, please use
scroll up and scroll down key pads. When you use scroll down key pad, the LCD

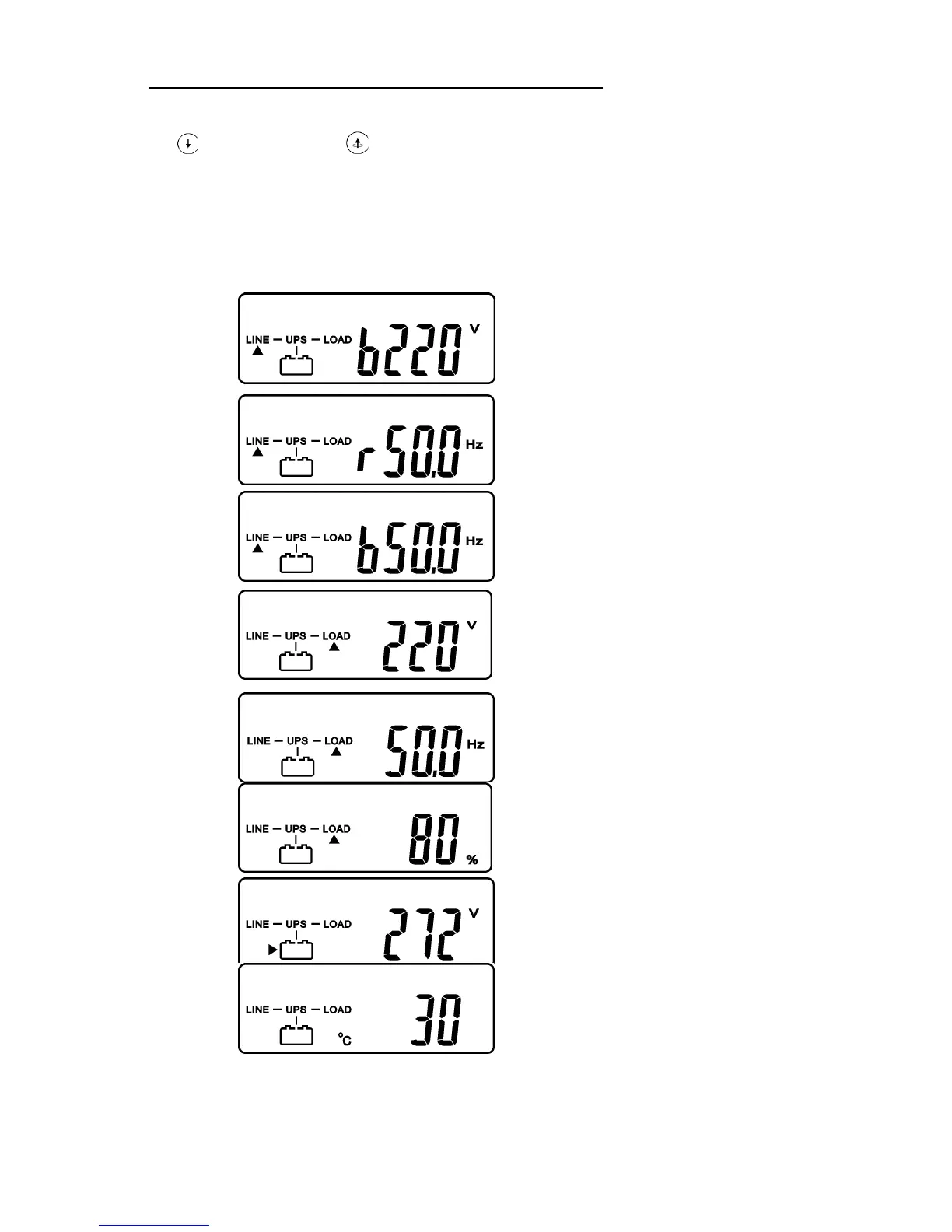

display will illustrate as Drawing C(Voltage from Utility Input) Drawing I1(Voltage from
Bypass Input)  Drawing J(Frequency from Utility Input) Drawing K(Frequency from Bypass
Input) Drawing L(UPS Output Voltage) Drawing M(UPS Output Frequency) Drawing
N(UPS Output Load %)Drawing O(UPS Battery Voltage) Drawing P(UPS Inner
Temperature).
I1
* It shows voltage comes from Bypass Input
J
* It shows frequency from Utility Input.
K
* It shows frequency from Bypass Input.
L
* It shows UPS output Voltage.
M
* It shows UPS output frequency.
N
* It shows UPS output load level(%)
O
* It shows Battery Voltage.
P
* It shows UPS Inner Temperature
