3-6. LCD Setting

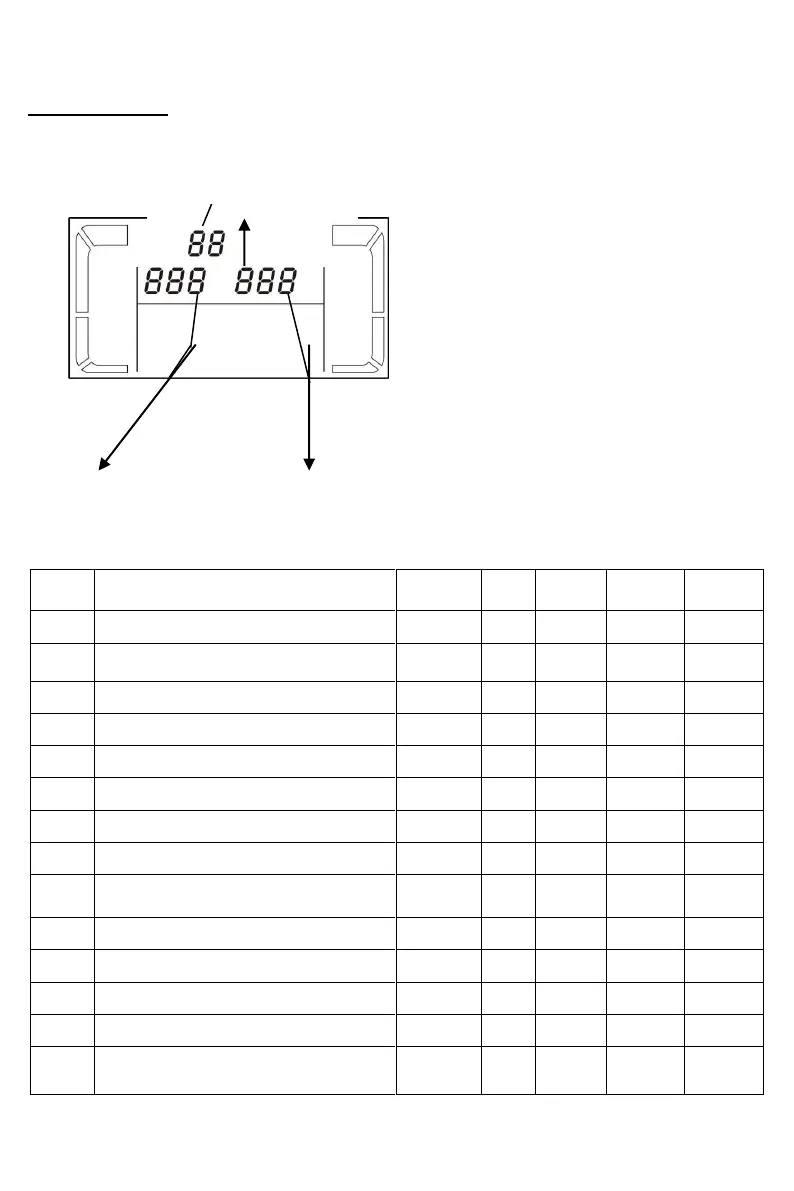

There are three parameters to set up the UPS. Refer to the following diagram.
Parameter 1 is for program alternatives. Refer
to the table below.
Parameter 2 and parameter 3 are the setting
options or values for each program.
NOTE: Select “Up” or “Down” buttons to
change the programs or parameters.
List of 20 programs available for parameter 1:
Code
Description
Bypass
AC
CVCF
Battery
Battery
Test
01
Output voltage
Y
02
Output frequency
Y
03
Voltage range for bypass
Y
04
Frequency range for bypass
Y
05
Reserved
06
Reserved
07
Reserved
08
Bypass mode setting
Y
Y
09
Battery maximum discharge time
setting
Y
Y
Y
Y
Y
10
Reserved
11
Reserved
12
Reserved
13
Battery voltage adjustment
Y
Y
Y
Y
Y
14
Reserved
Parameter 1
Parameter 2
Parameter 3
