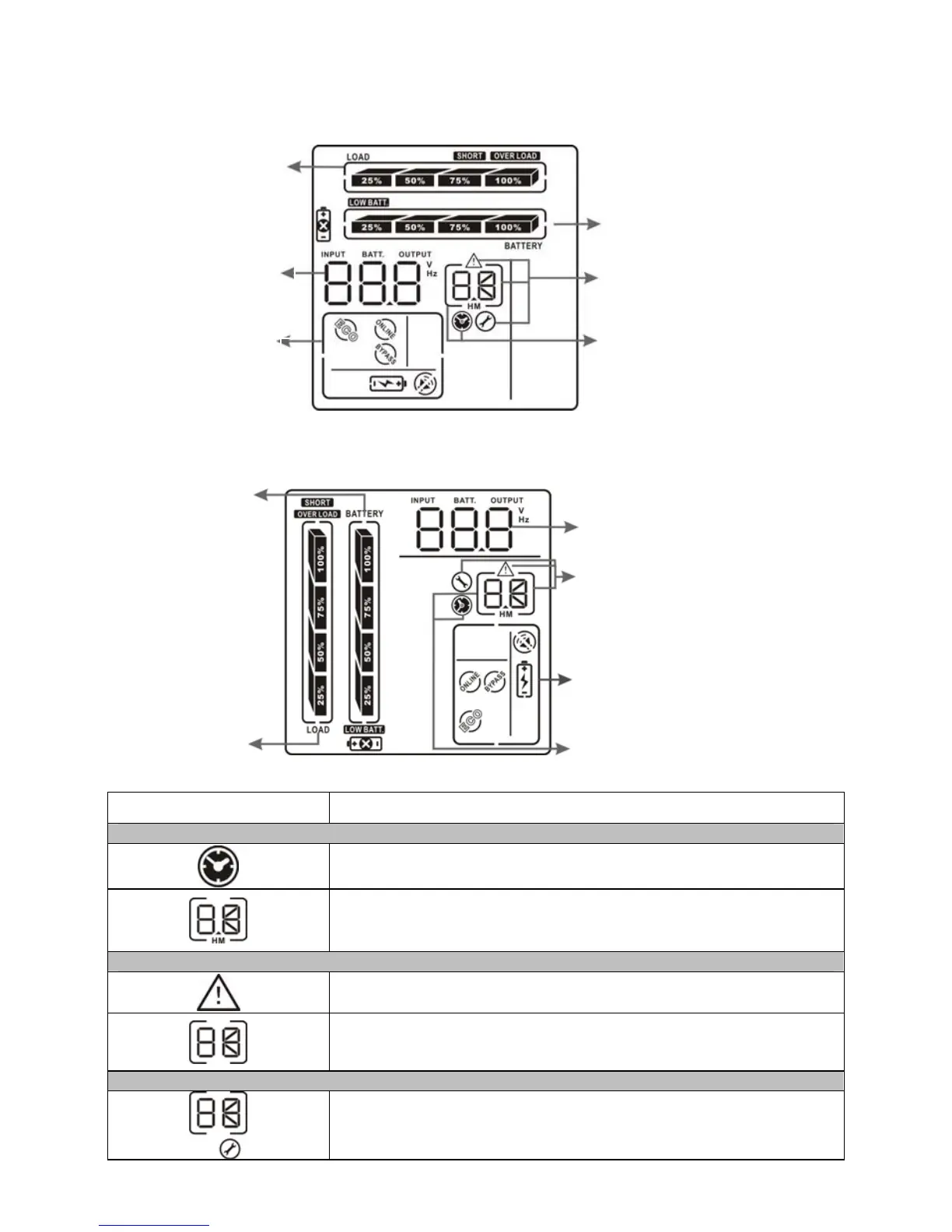

3.2 LCD panel
1) Rack display
2) Tower display
Display Functions
Backup time information
Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours; M: minute.
Warning & fault information
Indicates that warning and fault occur.
Indicates the warning and fault codes (codes are listed in details
page 12).
Setting operation
Indicates the setting operation.
Warning &
F
Setting ope
r
Battery info
Load info
Input/output
and Battery info
UPS status
Warning & Fault info/
Setting operation
Backup time
info
Load info
UPS status
Backup time info
Input/output
and Battery info
Battery info
Warning & Fault info/
Setting operation
