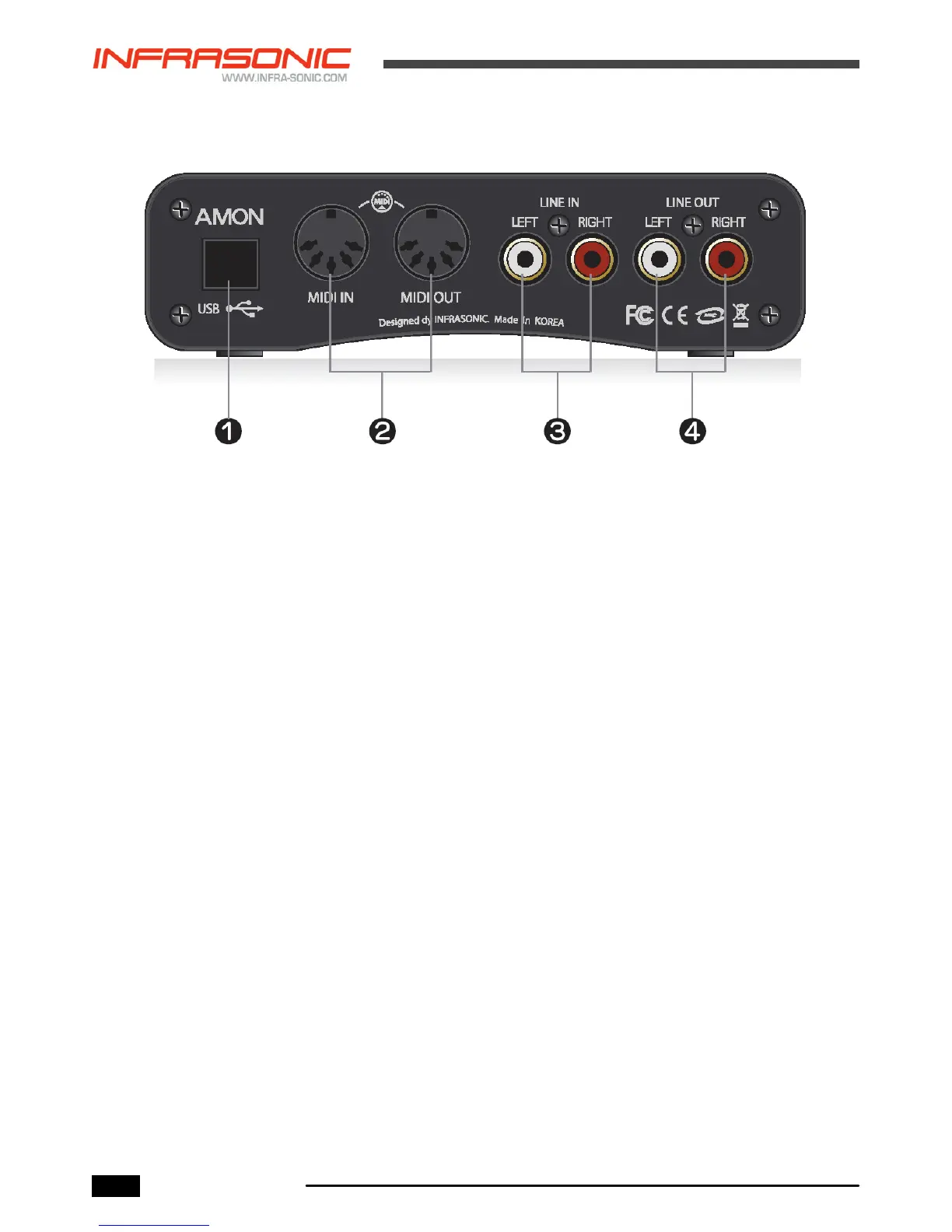

2.2 Rear Panel
1. USB 2.0 High-Speed Bus Powered
- Use this connector to connect the AMON to your computer.
2. MIDI Input / Output
- AMON provides 16 MIDI channels I/O.
3. 2 Line Inputs (RCA)
- These inputs are RCA connections. These connectors are for analog stereo line
inputs. The input gain is adjusted using the gain knobs on the front panel.
4. 2 line outputs (RCA)
- These outputs are RCA connections. These outputs can be connected to a mixing
board, power amplifier, powered studio monitors, recorder, or another stereo line
input.
