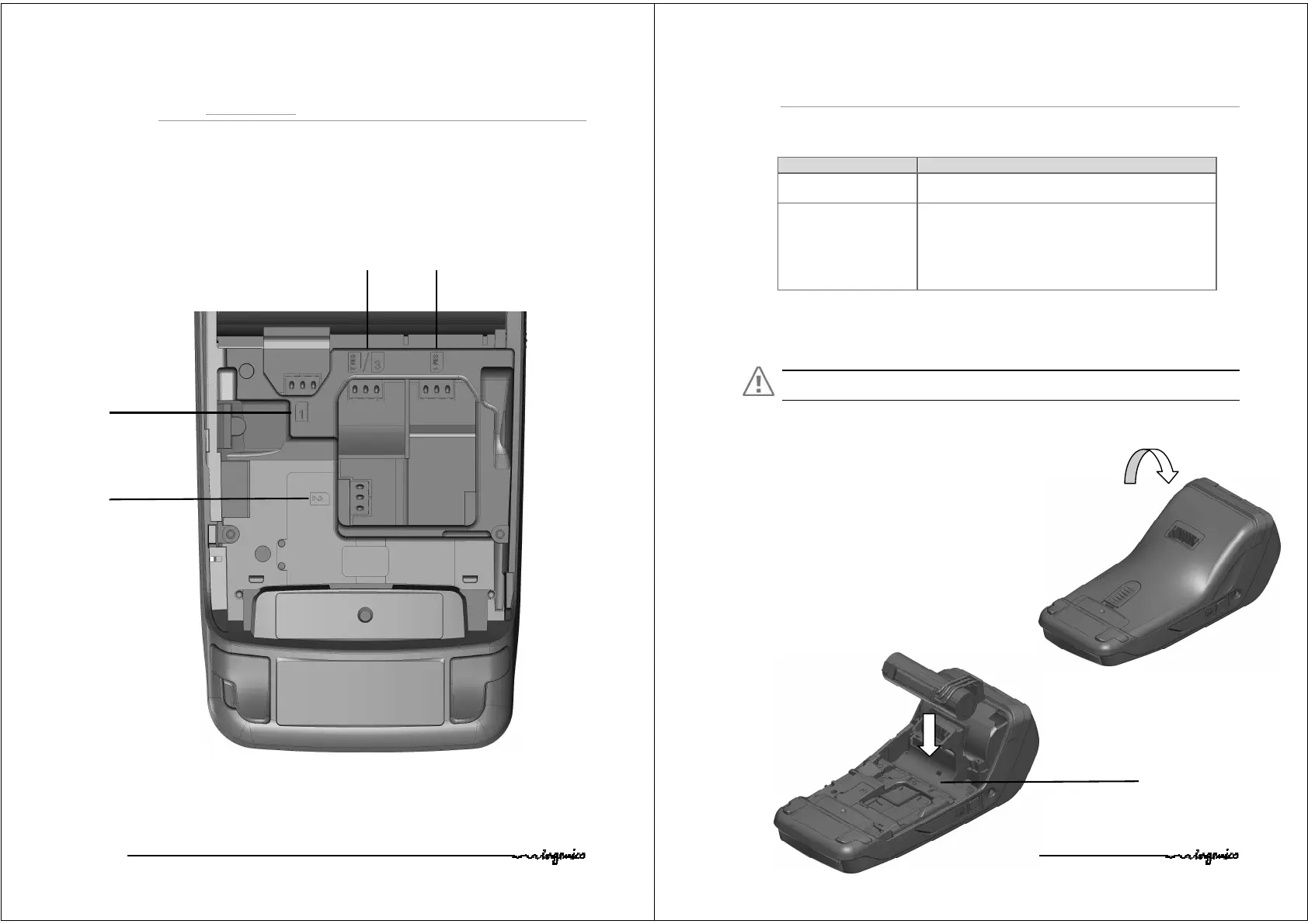

4.4. SAMs & SIMs
The connector modules security SAM/SIM are located inside the terminal, in a closed
compartment.
• SAMs and SIMs are indentified by the engraved marks on the
lower housing
• When introducing a SAM/SIM in its slot, be sure to put the cut
corner as indicated on the engraved marks
SAM 1 Connector
SAM 2 Connector
SIM 1 Connector
USER GUIDE
• 16/28 Copyright © 2012 Ingenico
R11 900017771 000 02 All rights reserved
4.5. Battery
4.5.1.
Main characteristics
Characteristics Li-ion 2900 mAh
Charge
(power supply-1.5A)
50% capacity in 1,5 h; full capacity in 4 hours
Battery life
• 450 transactions in GPRS with fully charged battery,
printing and backlit activated.
• Can remain powered ON up to 150 hours with
connected GPRS link and terminal in sleeping state
starting with fully charged battery and without energy
consumption related to backlit or radio link
* The battery capacity depends on the model of terminal and its use
4.5.2.
Installing the battery
WARNING
Check that the terminal is not connected to the main electric network.
• Turn your terminal and unclip the battery trapdoor by pushing on
the button as shown on the picture
• Disengage the trapdoor
• Take the battery pack included in the box
• Locate the battery pack connector beside the battery
compartment
• Plug the battery pack connector according to
the connector locating system and (as shown
on picture).
Verify that it locks.
• Place the battery pack in its compartment.
• Close the battery compartment trapdoor.
Battery compartment
