4.5.3.
Charging the battery
When does the battery need to be charged?
• On initial start up, charge the battery for 16 hours under the environmental
conditions stated above
• When used daily, the terminal recharges its batteries each time it is placed on its
base . Charging is automatic
• When used with a terminal power supply: connect the power supply to Move5000
power connector.
How does the battery need to be charged?
• The environment in which the charge takes place influences battery lifetime and
autonomy (number of transactions)
The optimal conditions are as follows:
Charging away from any external heat source (radiator, sun, enclosed area…)
The optimal temperature is between +15°C and +25°C
How can the battery be charged?
Using the base
• Place the terminal on its base
• Check if the battery symbol is flashing or moving (=battery charging).
Using the terminal power supply (the terminal is out of its base)
• Connect the terminal power supply unit to the terminal microAB connector located
on the left side of the terminal.
• Connect the power supply unit to the power supply mains network
• Check to see if the battery symbol is flashing or moving(=battery charging)
USER GUIDE
• 18/28 Copyright © 2012 Ingenico
R11 900017771 000 02 All rights reserved
4.5.4.
Changing the battery
It is imperative to use a battery authorized by Ingenico.
There is danger of explosion if battery used is not approved by Ingenico.
• Remove the terminal from its base
• Turn it off by pressing simultaneously and (yellow key) for about
one second
• Remove the battery trapdoor (see section 4.5.2“installing battery”)
• Lift the battery and remove it from its compartment

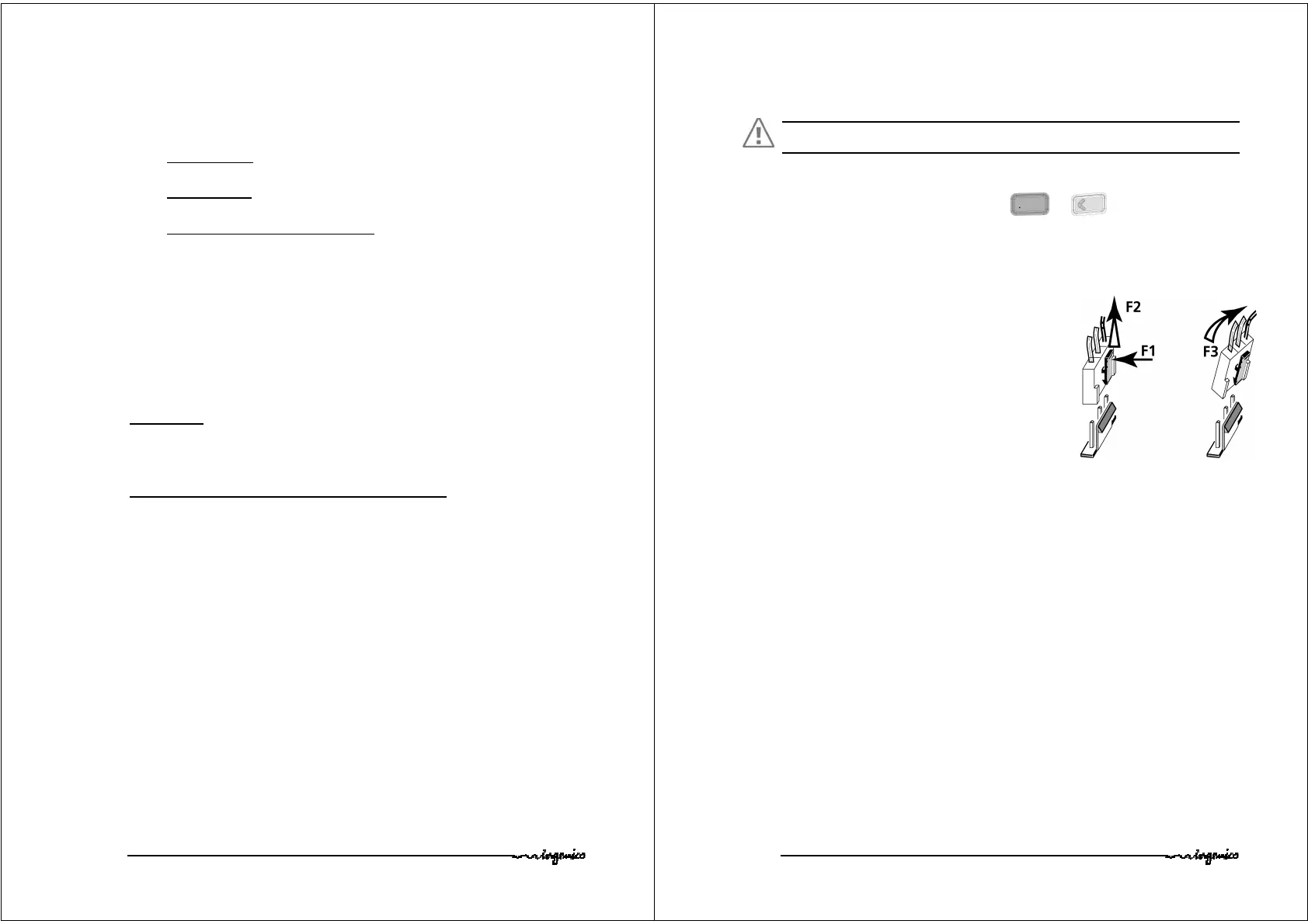

• Carefully disconnect battery, following the
instructions below.
a) Unlock the connector by pressing the locking
mechanism as indicated by F1 arrow while pulling
this connector (F2 arrow ).
Release traction on it as soon as the connector
comes unclipped
b) Finish extracting connector by tilting it slightly
(F3 arrow) to bring it away from the terminal
housing
• Inform the terminal that battery will be replaced (*). Do so start the terminal
without battery by fitting it on its base, or connecting terminal power supply.
• Remove terminal from base or disconnect terminal power supply
• Connect and install the new battery by following the instructions in section 4.5.2
“Installing battery”
• Close the battery trapdoor and charge the new battery. See section "0 “Charging
the Battery"
• In order to preserve the environnement, dispose used battery in compliance with
current country recycling legislation.
(*)The terminal memorizes that there is no battery simply by powering up. It will then
correctly perform-full recharge with the next battery.
