Warning: Please use the standard power adapter from the product package. Any other
types of power adapter may lead to the failure of terminal.
Ethernet Port：RJ45
Audio Jack
The audio jack of Moby C150 support OMTP and CTIA standard interface, Includes four-segment audio head
(supporting microphone) and three-segment audio head, which can be connected to headphones or speakers
Cashbox interface: RJ11
Support external cashbox connection,
use RJ11 connector，support all the DC 12V cashbox.

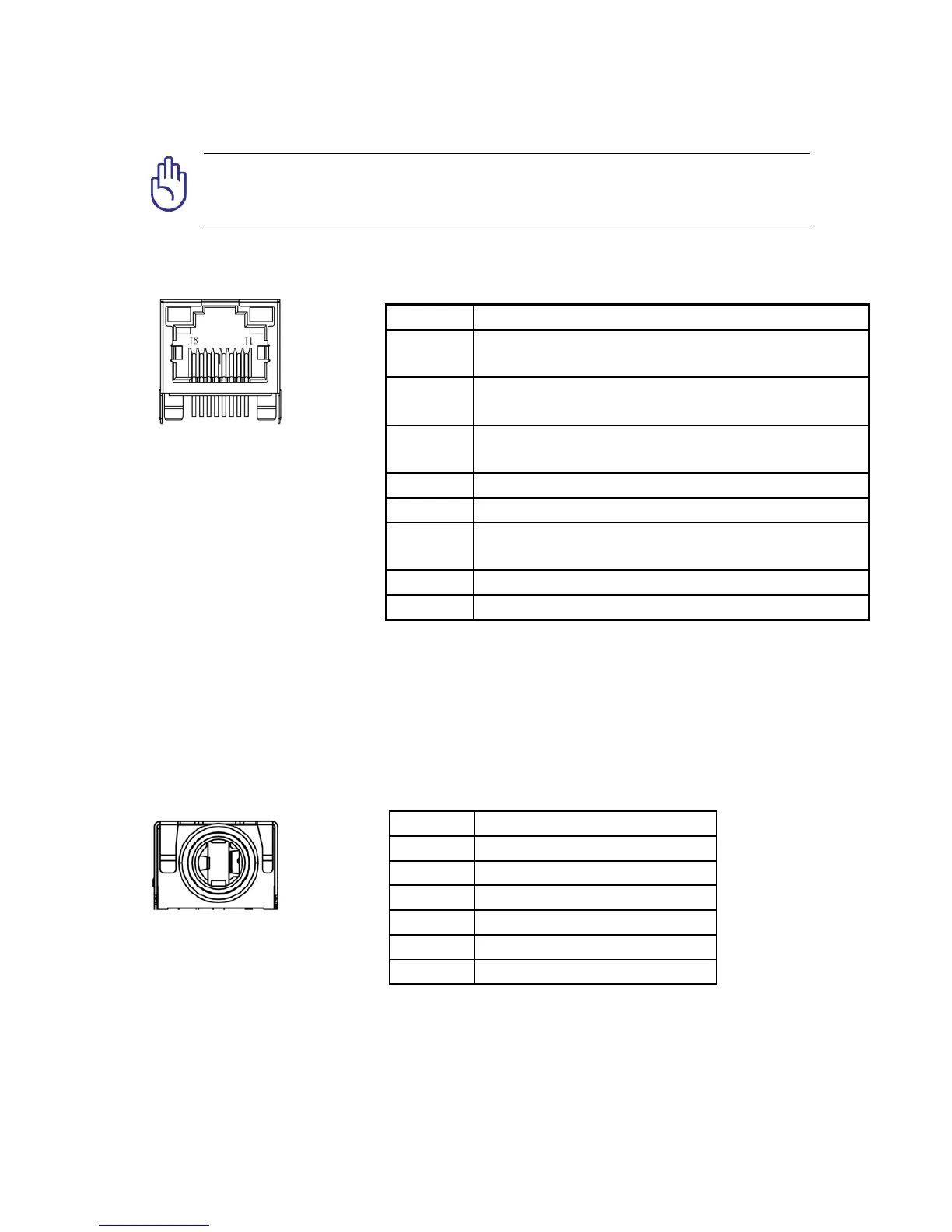

Item RJ45 Connector Signal
1
ETH_TX+
Ethernet communication signals
2
ETH_TX-
Ethernet communication signals
3
ETH_RX+
Ethernet communication signals
4
NC
5
NC
6
ETH_RX-
Ethernet communication signals
7
NC
8
NC
Item Audio jack signals
1 MIC2_IN MIC input signal
2 HPH_L Left Channel
3 HPH_R right Channel
4 HS_DET insert detect
5 NC
6 HPH_REF reference GND
