3 Appearance and interface
3.1 Configuration 1: 10.1’’ customer display

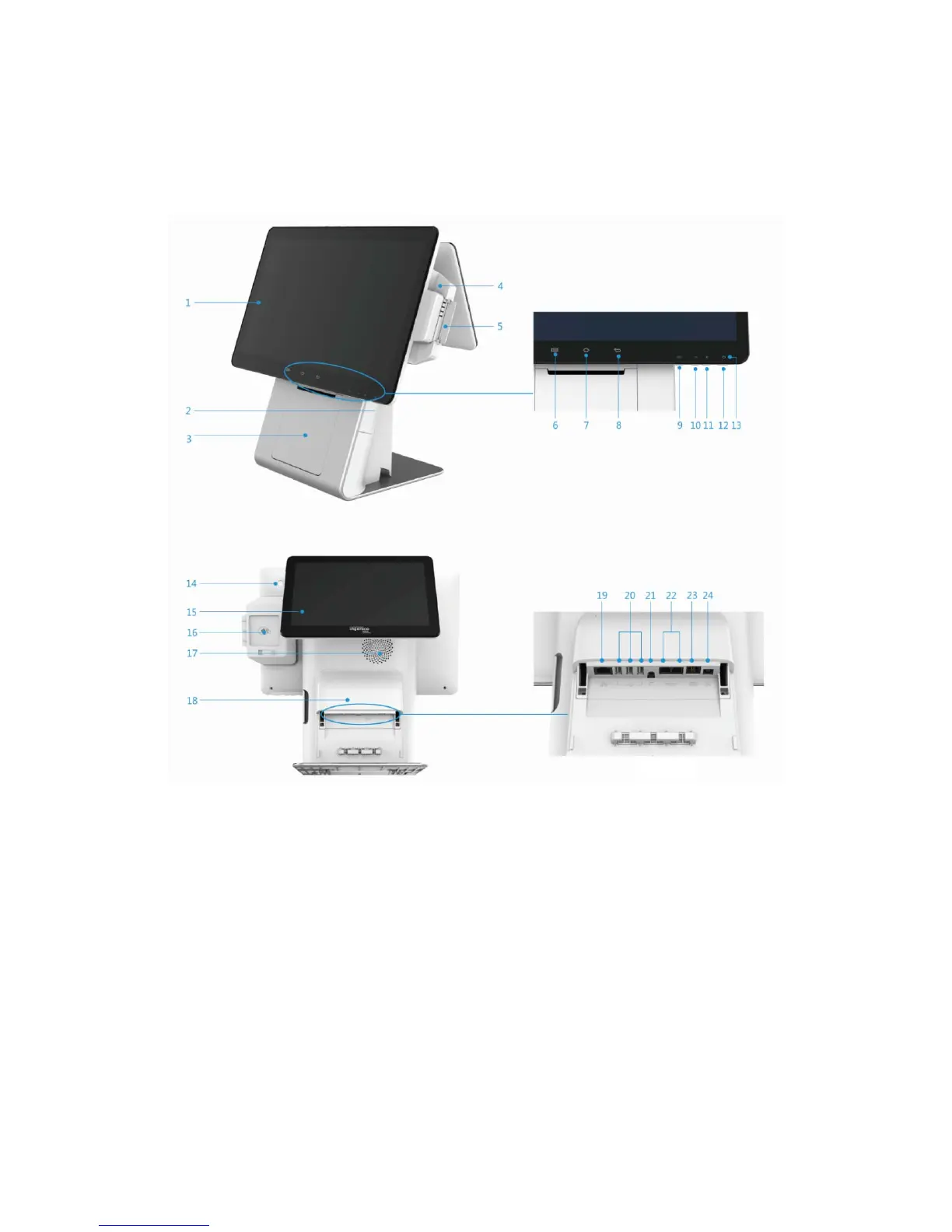

Figure 3-1
1. Main Screen (LCD and touch panel) 2. Buckle of paper roll cover
3. Paper roll cover 4. Magnetic card reader
5. Smart card reader 6. Menu key
7. Home key 8. Back key
9. Cash drawer button
10. Volume - Keys
11. Volume + Keys 12. Power Key
13. Power LED 14. Finger print reader
15. Customer Display (10.1-inch LCD without touch panel)
16. Contactless card reader 17.Speaker
18. Cable outlet cover plate
19. LAN (Ethernet) port
20. USB port *3 21. Headphone jack
22. RS232 port 23. Cash drawer port
24. DC power jack
