COMPRESSOR LUBRICATION

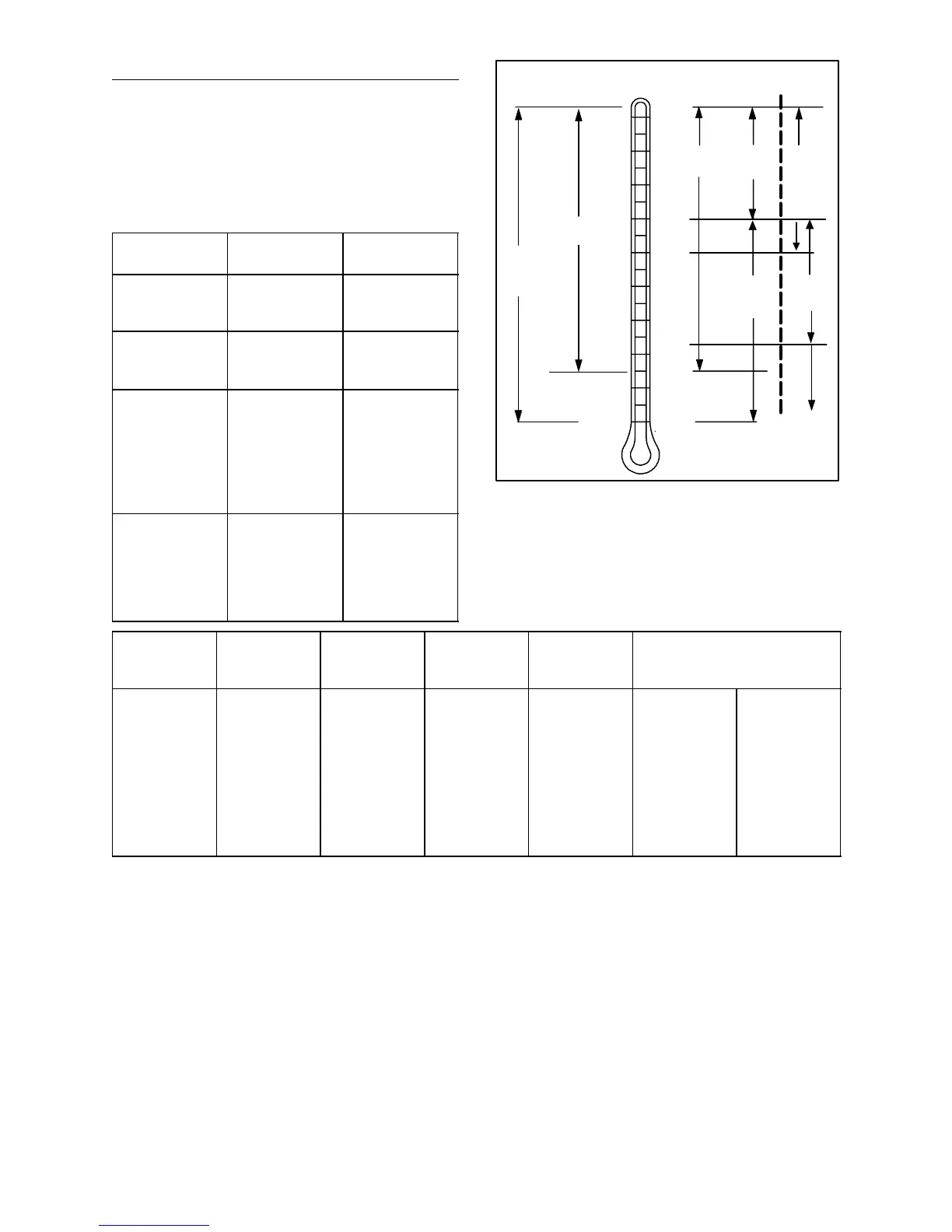

Portable Compressor Fluid Chart
Refer to these charts for correct compressor fluid required.
Note that the selection of fluid is dependent on the design
operating pressure of the machine and the ambient
temperature expected to be encountered before the next oil
change.
Design Operating
Pressure
Ambient
Temperature
Specification
100 psi to 300 psi
–10F to 125F
(–23C to 52C)
IR Pro–Te c
Mil –PRF 2104G
SAE 10W
100 psi to 300 psi
–40F to 125F
(–40C to 52C)
IR Performance
500
Mil–L–46167
350 psi
–10F to 125F
(–23C to 52C)
65F to 125F
(18C to 52C)
–40F to 65F
(–40C to 18C)
IR XHP 505
IR XHP1001
IR Performance
500
Mil–L–46167
500 psi
50F to 125F
(10C to 52C)
10F to 65F
(–12C to 18C)
below 10F
(–12C)
IR XHP1001
IR XHP 505
Consult Factory
IR
XHP505
IR
XHP1001
IR
PERFORMANCE
500
IR
PRO–TEC
100 – 300 PSI
RATED OPERATING PRESSURE
350 PSI
500 PSI
IR
XHP 1001
IR
500
PERFORMANCE
IR
XHP505
10F
125F
50C
40C
30C
20C
10C
0C
–10C
–20C
–30C
–40C
104F
86F
65F
50F
32F
14F
–10F
–22F
–40F
consult
factory
Recommended Ingersoll–Rand Fluids – Use of these fluids
with original IR filters can extend airend warranty. Refer to
operator’s manual warranty section for details or contact your
IR representative.
Compressor
Recommended
Fluid
1 Gal. 5 Gal. 55 Gal. 275 Gal. Tote
Europe
20 Litre 208 Litre
Pro–Te c  36899698 36899706 36899714 36899722 89292973 89292981
XHP 505 NA 54418835 54418843 54418827 ___ –––
Performance
500
35382928 35382936 35382944 NA ___ –––
XHP1001 NA 35612738 35300516 NA ___ ___
Engine Oil 54480918 36875938 36866903 NA 89311716 89311724
